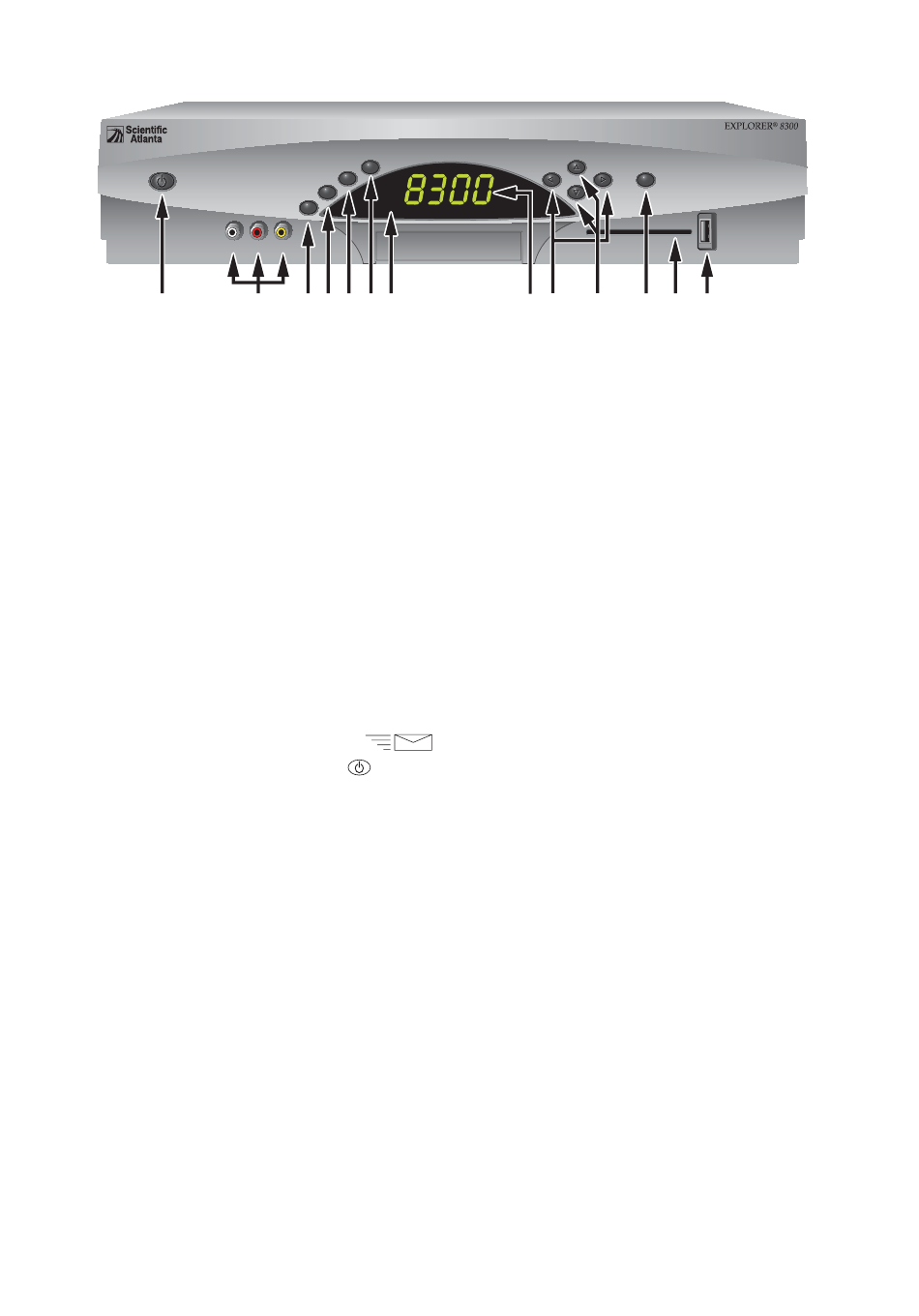

Front Panel Features

POWER
L AUDIO R
1 2
1 Power Turns the DVR on and off
2 Video and Connects to video and left/right (L/R) audio outputs of an external
Audio Input* device to deliver the audio and video to a TV or other device
3 List Displays the list of recorded programs
4 Exit Exits menus, the on-screen guide, and program information
5 Info Displays a description of the selected program. This button is
available from the on-screen guide and while viewing a program
6 Guide Accesses on-screen services, such as the on-screen guide,
video-on-demand, or pay-per-view
7 IR Sensor Receives the infrared signal from the remote control
8 LED Display Displays the selected channel number and time of day. The LED
also displays the following:
• Message (
• Power (
• RECORD
9 VOL + and Increases and decreases the volume
VOL -
10 CH + and Scrolls up and down through the channels
CH -
11 Select Provides access to your on-screen choices
12 Smart Card* Allows smart card access
13 USB Port* Connects to external equipment, such as a keyboard
* These connectors are reserved for future use or may not be available on all 8300
DVR models.
