Summary of Contents for Ketra X96

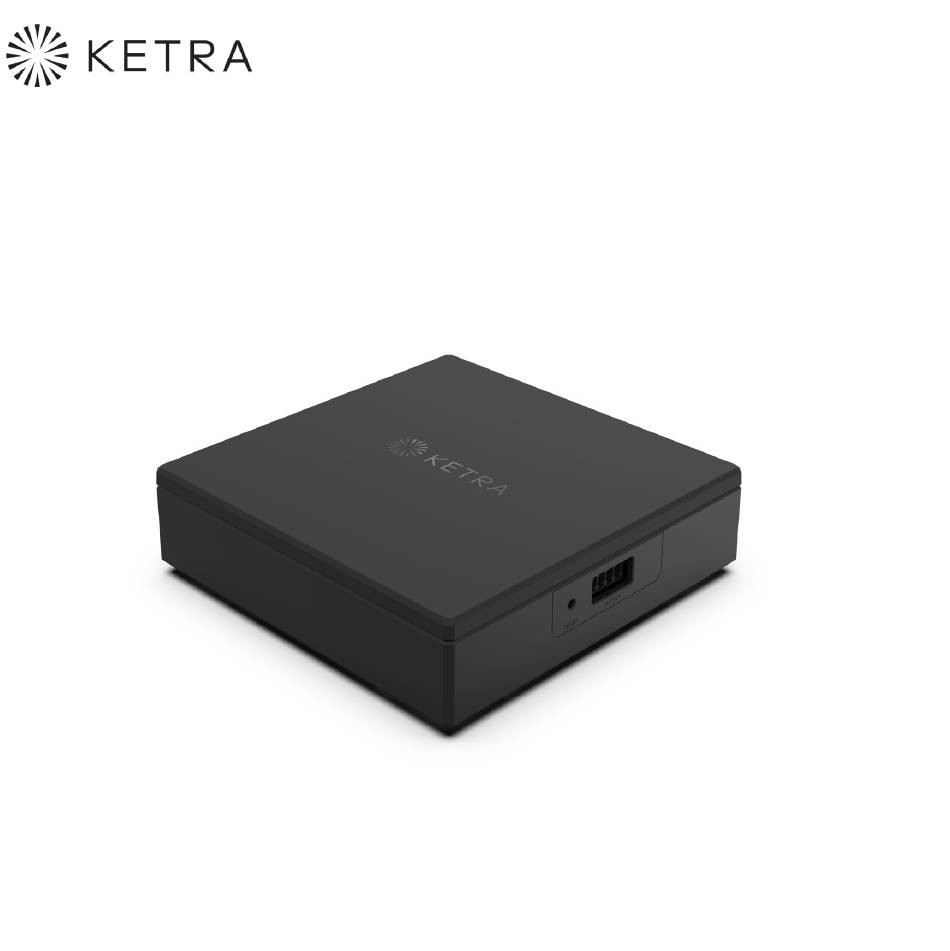

- Page 1 K E T R A C O N T R O L L E R Installation Guide Models HW-X96-X-J1 CM-X96-X-J1...
- Page 2 — Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. — Consult the dealer or an experienced radio/TV technician for help. P/N 3662581 Rev A 2 | X96 INSTALLATION GUIDE © 2021 Lutron Electronics Co., Inc.
-
Page 3: Included Components
I N S TA L L AT I O N Included Components ( 1 ) X96 Ketra ( 1 ) X96 Ketra Controller ( 1 ) Type A Adapter ( 2 ) Mounting Screws ( 3 ) Wire Nuts Controller Connector... -
Page 4: Electrical Specifications
21 V- Max 96 W to power LS0 luminaire 120/277 V~ 60 Hz Max 110 W Current 0.92 A/0.40 A 3.3 V- control signal to control light level and color temperature of LS0 luminaire P/N 3662581 Rev A 4 | X96 INSTALLATION GUIDE © 2021 Lutron Electronics Co., Inc. -
Page 5: Pre-Installation
If moisture or condensation is evident, allow the product to dry completely before installation. • Operate between 32 °F and 104 °F (0°C and 40°C) ambient. • 0% to 90% humidity, non-condensing. P/N 3662581 Rev A X96 INSTALLATION GUIDE | 5 © 2021 Lutron Electronics Co., Inc. - Page 6 • The X96 Ketra controller, a Clear Connect Type X device, must be mounted within 71 ft (21.5 m) of its assigned gateway. The X96 must have at least two non-battery-powered Type X devices with 25 ft (7.5 m). Within a subnet, groups or clusters of Type X devices must not be separated by greater than 25 ft (7.5 m).
-
Page 7: Installation
Wire Output Black or Connector Black Line/Hot Wire Wire Reset button: Hold for 15 seconds to factory reset X96 controller. Green Green Wire or Bare Ground Wire P/N 3662581 Rev A X96 INSTALLATION GUIDE | 7 © 2021 Lutron Electronics Co., Inc. - Page 8 S T E P 2 Mounting (shown in Figure 3) 1. Remove top cover to access the mounting holes. 2. Mount the X96 Ketra Controller as shown in Figure 3. 3. Snap top cover back onto controller. Figure 3 P/N 3662581 Rev A 8 | X96 INSTALLATION GUIDE...
-
Page 9: Output Wiring
Wire Input Side Position 3 Position 2 Purple | DATA + White | DATA - Position 4 Position 1 Black | COM Red | V+ Release Lever P/N 3662581 Rev A © 2021 Lutron Electronics Co., Inc. X96 INSTALLATION GUIDE | 9... -
Page 10: Troubleshooting
I N S TA L L AT I O N Troubleshooting Ketra’s LS0 Linear should power on to a default white state. If it powers on to some other color, that means there’s a problem in the installation conditions. See the table below for the meaning of each color. -
Page 11: Warranty & Tech Support
For questions and technical support, please contact: (844) 588-6445 ketrasupport@lutron.com Ketra and the Ketra logo are trademarks or registered trademarks of Lutron Electronics Co., Inc. in the US and/or other countries. P/N 3662581 Rev A X96 INSTALLATION GUIDE | 11 © 2021 Lutron Electronics Co., Inc. - Page 12 6231 E. Stassney Ln. www.ketra.com Bldg. 13, Suite 400 512.872.4349 Austin, TX 78744 P/N 3662581 Rev A © 2021 Lutron Electronics Co., Inc.
