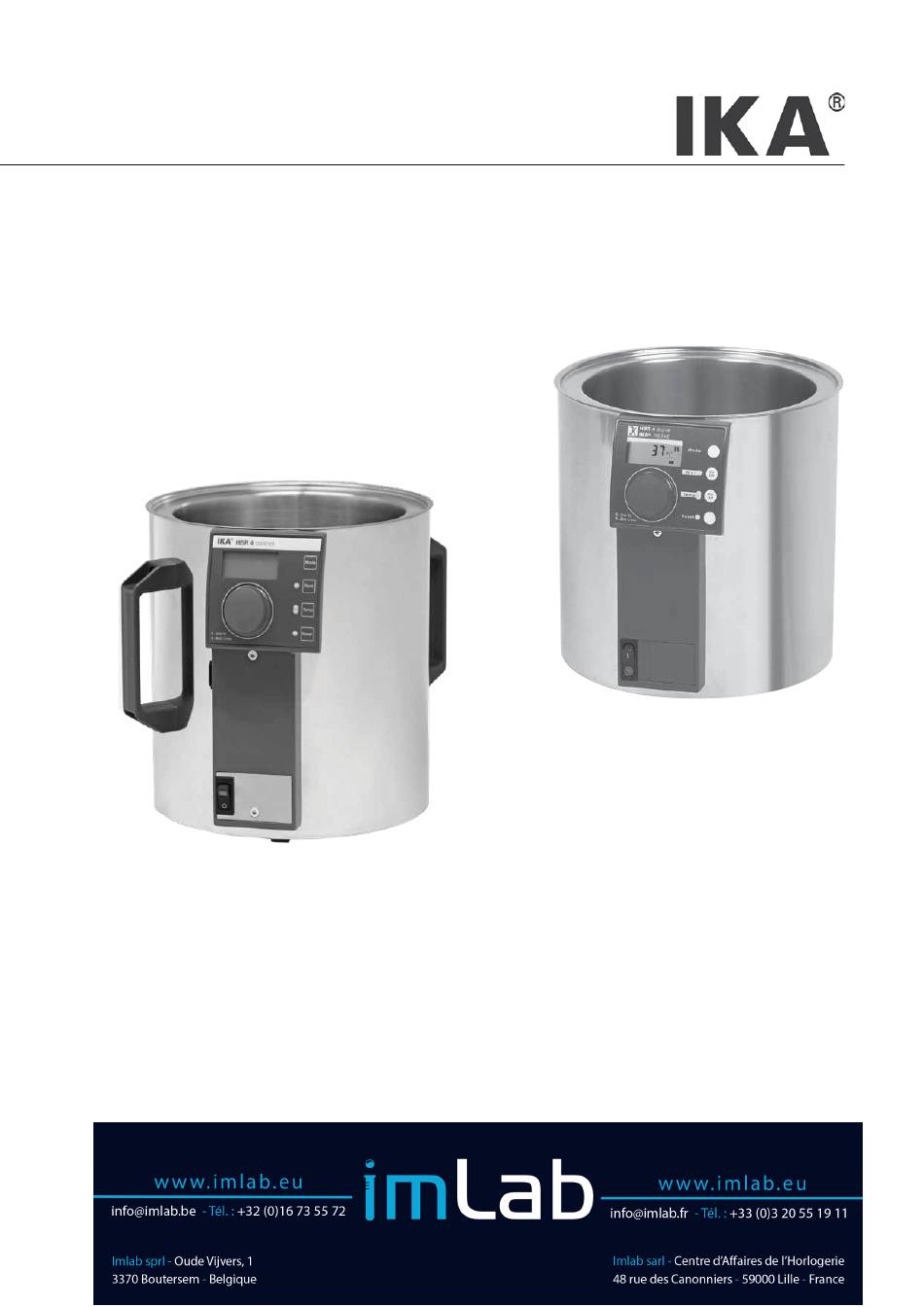

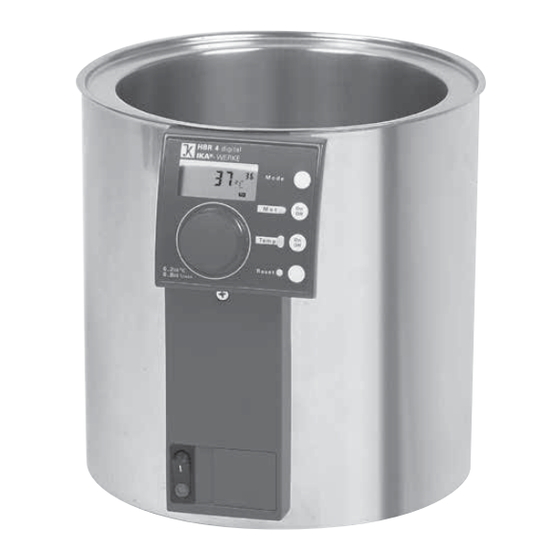

  • Page 1 20000006463 HBR 4 digital/control_052018 ® HBR 4 digital ® HBR 4 control...

  • Page 2: Table Of Contents

    EN 61010-1, EN 61010-2-010, EN 61010-2-051, EN 61326-1, EN 60529 (A1+A2) and EN ISO 12100. A copy of the complete EU Declaration of Conformity can be requested at sales@ika.com. Explication of warning symbols DANGER Indicates an imminently hazardous situation, which, if not avoided, will result in death, serious injury.

  • Page 3: Safety Instructions

    • Be aware of a hazard due to lack of grip on a wet evaporating • The use of coated glassware does not release you from the obli- ® flask, in particular when operating the IKA HBR 4 digital/ gation when the device is in use to enclose it on all sides with an control heating bath with silicone oil! extractor hood or to employ an appropriate safety device.

  • Page 4: Unpacking

    - Temperature sensor PT 1000.60/61 (only for HBR 4 control) Correct use • Use • Area of use (only indoors) ® The IKA tempering baths HBR 4 digital/control are laboratory - Laboratories - Schools devices and are suitable for directly tempering substances filled - Pharmacies - Universities into the bath container.

  • Page 5: Commissioning

    Commissioning Observe the ambient conditions (temperature, humidity, etc.) listed The device is switched on with the 2-pole ON/OFF mains switch (A). under Technical Data. When switched on the lamp in the rocker switch lights up green. The unit is ready for service when the mains plug has been plugged Please follow above directions to ensure safe operation and pre- vent device from suffering damage.

  • Page 6: Control Of Medium Temperature

    Control of medium temperature The desired medium temperature can be set between 0 and 200 On the LCD display °C and HOT are displayed alternately (Fig. 13 °C with the control knob (B), but not higher than the set safety and 14).

  • Page 7: Error Messages

    Short circuit in the controller sensor Service If the actions described fail to resolve the fault or another error code is displayed then take one of the following steps: - contact the IKA ® service department, - send the device for repair, including a short description of the fault.

  • Page 8: Interfaces And Outputs

    Interfaces and outputs The device can be operated in “Remote” mode via an RS 232 using Command syntax the laboratory software Labworldsoft ® The following points should be noted for the instruction set: • Commands are generally sent from the computer (master) to the Note: Please comply with the system requirements together with lab device (slave).
  • Page 9 Display NAMUR commands Function (additional) IN_NAME Title request IN_PV_X X=1;2;3;4;; Current value reading IN_SOFTWARE Software ID number, date, version request IN_SP_X X=1;2;3;4;12;42 Set target value reading 52;54; IN_TYPE Lab device identification request OUT_NAME name Output of identification name. (Max. 6 characters; default: IKAHBR) OUT_SP_12@n Setting WD safety limit temperature with set value echo OUT_SP_42@n...
  • Page 10 STATUS_X X=1;4;5 Display of status X=16 1*: Operation mode A (old function) 2*: Operation mode B 3*: Operation mode C *0: manual operation without fault *1: Automatic operation Start (without fault) *2: Automatic operation Start (without fault) <0: Error code: (-1) 1: Error 1 ...

  • Page 11: Maintenance And Cleaning

    For this, use the “Decontamination Certificate” form which you can obtain from IKA ® or can download a version for printing Only use cleaning materials recommended by IKA ® from the IKA ® website at www.ika.com. Dirt Cleaning agent If your appliance requires repair, return it in its original packaging.

  • Page 12: Warranty

    Please include the sales invoice and state the reasons for your guarantee claim. In this case, you are responsible for shipping and handling costs. Technical data HBR 4 control HBR 4 digital Nominal voltage 230 ± 10% 115 ± 10% Frequency...
