720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE
HDP-5260PT

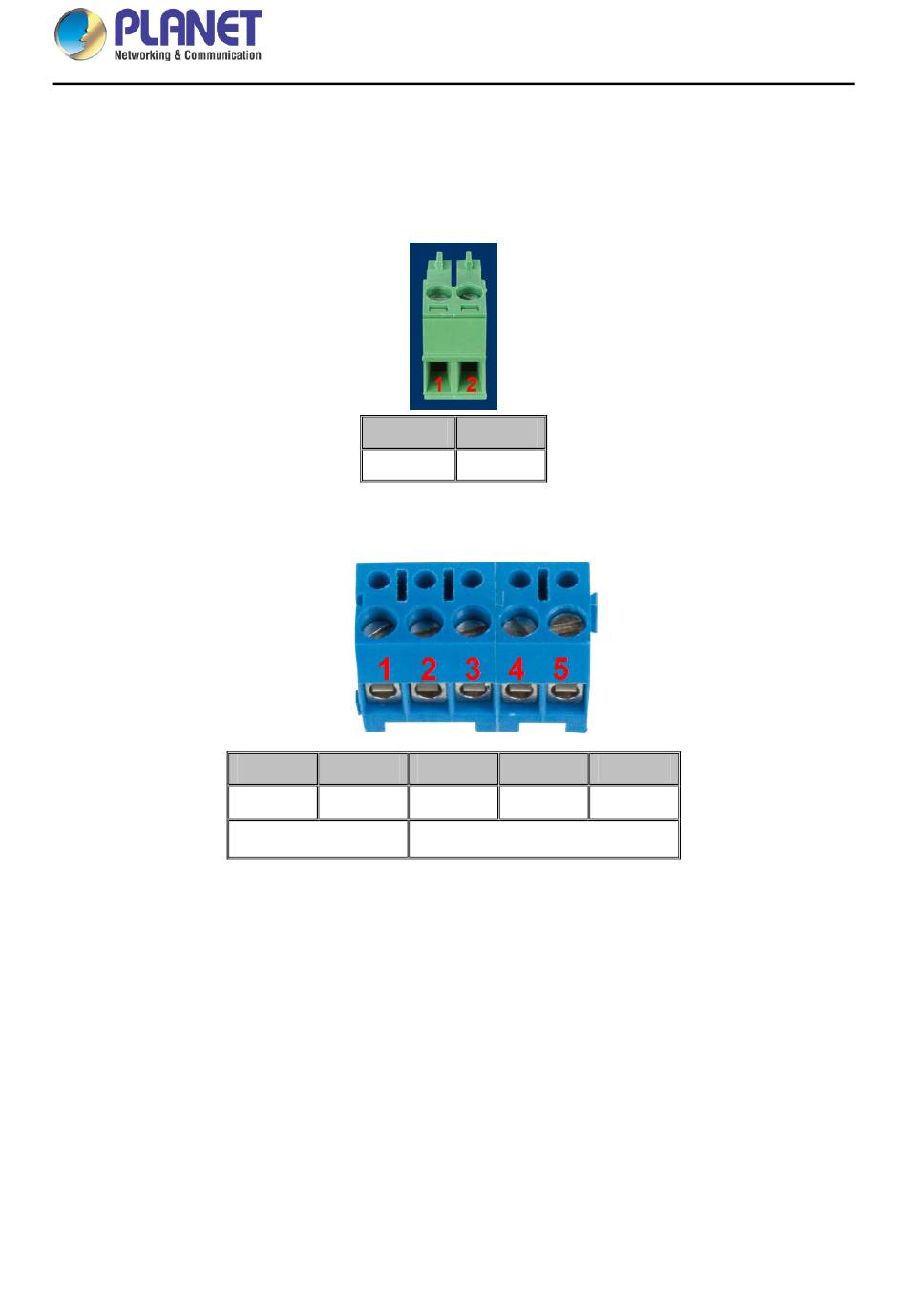

Power Connector
The HDP-5260PT requires either IEEE 802.3af/at PoE or DC power from the power connector. The picture
shows the two-pin connector comes with system power source of 12V DC, 1A (maximum for the two-pin
connector).
1
2
+12V DC
GND
Electric-lock Connector
1
2
3
4
5
S_IN
S_OUT
NC
COM
NO
Indoor switch
Electric-lock switch
