Planet Networking & Communication VTS-700P User Manual

7-inch sip indoor touch screen poe video intercom
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
7-inch SIP Indoor Touch
Screen PoE Video Intercom
VTS-700P

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VTS-700P and is the answer not in the manual?

Questions and answers

Related Manuals for Planet Networking & Communication VTS-700P

Summary of Contents for Planet Networking & Communication VTS-700P

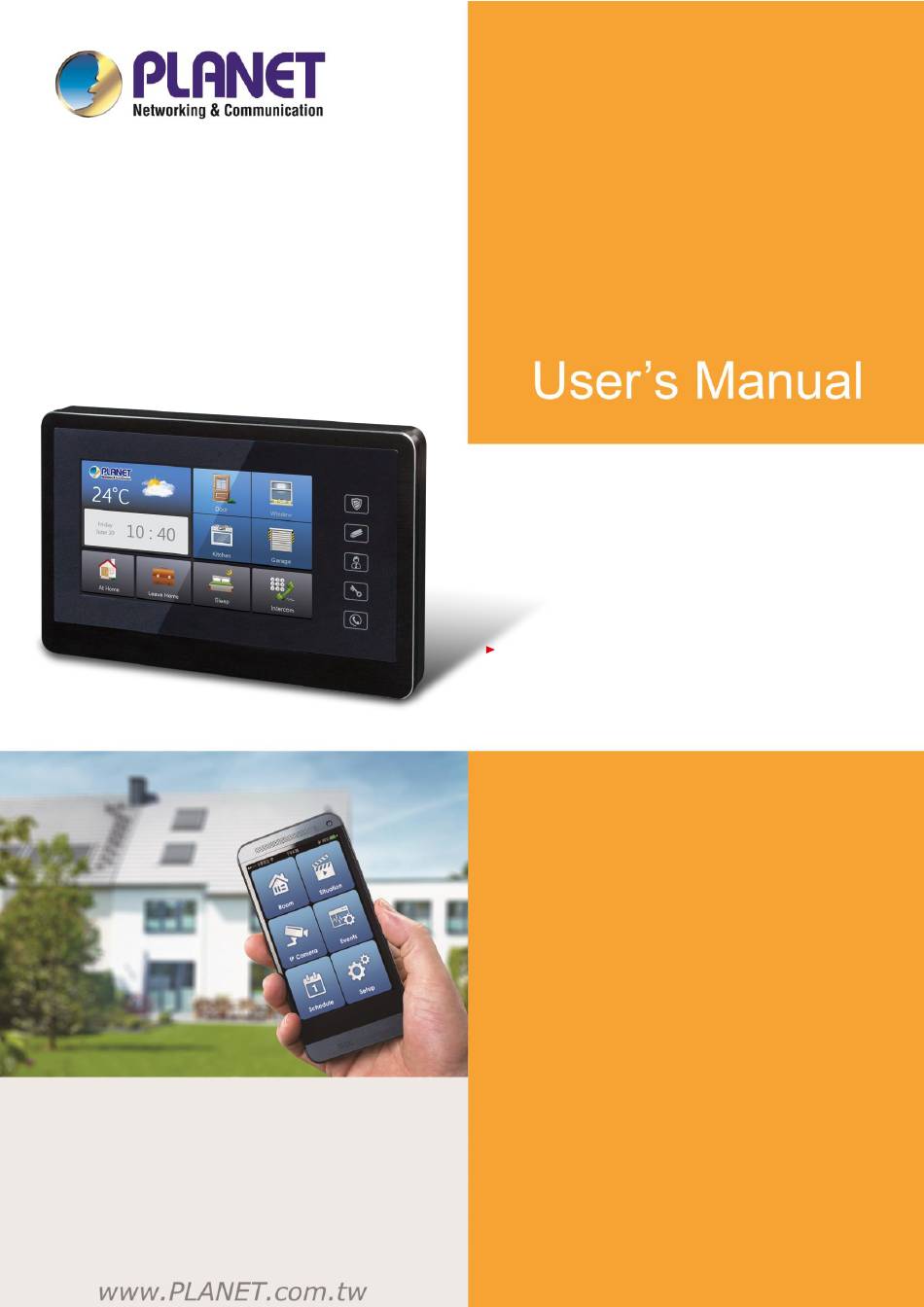

  • Page 1 7-inch SIP Indoor Touch Screen PoE Video Intercom VTS-700P...
  • Page 2 7-inch SIP Indoor Touch Screen PoE Video Intercom VTS-700P Copyright Copyright  2018 by PLANET Technology Corp. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of PLANET.
  • Page 3 Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately. Revision User’s Manual of PLANET 7-inch SIP Indoor Touch Screen PoE Video Intercom Model: VTS-700P Rev: 1.00 (August, 2018) Part No. EM-VTS-700P_v1.0...

  • Page 4: Table Of Contents

    Chapter 3. Configuration ..................12 Chapter 4. 4.1 How to use the VTS-700P ........................... 12 4.2 To get IP address of VTS-700P ........................13 4.2 Webpage Setting ............................14 4.3 Status ................................15 4.4 Security Setting.............................. 16 4.5 Intercom ................................20...

  • Page 5: Chapter 1. Product Introduction

    1.2 Overview Touch Screen Video Intercom with PoE PLANET VTS-700P 7-inch SIP Indoor Touch Screen PoE Video Intercom, the command center of the Video Intercom and Automation Systems, provides you with the convenience of managing functions at the touch of the beautifully-designed unit’s screen. The VTS-700P, perfect for homes and businesses, delivers whatever command you have in mind without, for example, having to go the door to unlock it to let a visitor in.
  • Page 6 When detectors are triggered upon detection, the alarm signal is picked up and you will be alerted of the situation via the VTS-700P or alarm outputs. The real-time alert can certainly stop the situation from becoming worse, thereby protecting your home from the would-be burglary.
  • Page 7 Screen PoE Video Intercom. The Acoustic Echo Cancellation (AEC) technology is adopted in PLANET’s HDP-1100PT Door Phone and VTS-700P SIP Indoor Touch Screen PoE Video Intercom to minimize the sound signal distortion. In addition, with echo suppression, you’ll feel like you’re talking to your caller...

  • Page 8: Specifications

    7-inch SIP Indoor Touch Screen PoE Video Intercom VTS-700P 1.3 Specifications Product VTS-700P Hardware Platform Screen Size 7 inches Brightness 450 cd/m2 Video Resolution 800 x 480 Aspect Ratio 16:9 Touch Panel Projected capacitive (multi touch) Audio Standard SIP 2.0 (RFC3261), RTSP, TC/IP Voice / Video Codec G.711a/u, H.264...

  • Page 9: Chapter 2. Hardware Interface

    7-inch SIP Indoor Touch Screen PoE Video Intercom VTS-700P Chapter 2. Hardware Interface 2.1 Physical Descriptions  Dimensions Dimensions (W x D x H) 245 x 155 x 26.5 mm Weight 581g (gross weight)  Front Panel Four types of anti-theft monitoring screen...
  • Page 10 7-inch SIP Indoor Touch Screen PoE Video Intercom VTS-700P  Rear Panel  Security contact configuration diagram Name Color Function description DI_1 Blue The first security zone DI_2 Purple The second security zone DI_3 Gray The third security zone DI_4...
  • Page 11 7-inch SIP Indoor Touch Screen PoE Video Intercom VTS-700P  Digital Input security contact  Digital Output Alarm output contact...

  • Page 12: Chapter 3. Wall Mounting And Cabling

    Step 1: Wiring and mounting on the wall -- Place the wall-mount panel in the position where you want and fix it with four screws, and then hang the VTS-700P main body as shown below. Step 2: Please connect the Ethernet cable directly to the LAN port on the back of the VTS-700P for PoE models.

  • Page 13: Chapter 4. Configuration

    VTS-700P screen, and you also can see the MAC address, default IP location (192.168.0.20), and the version number. On the left side of the VTS-700P home page, the temperature, weather, date and time are displayed. On the right side of the VTS-700P home page, four types of anti-theft monitoring screen are shown.

  • Page 14: To Get Ip Address Of Vts-700P

    VTS-700P 4.2 To get IP address of VTS-700P Step 1: When you touch the time display zone of the VTS-700P homepage with your finger, the QR code will jump automatically on the screen Your smartphone should be set up in the same network segment as that of the VTS-700P.

  • Page 15: Webpage Setting

    7-inch SIP Indoor Touch Screen PoE Video Intercom VTS-700P 4.2 Webpage Setting The main page as shown below displays 4 functions -- Status, Security Intercom and System.

  • Page 16: Status

    7-inch SIP Indoor Touch Screen PoE Video Intercom VTS-700P 4.3 Status The page shows the details of the VTS-700P.

  • Page 17: Security Setting

    7-inch SIP Indoor Touch Screen PoE Video Intercom VTS-700P 4.4 Security Setting Security > security setting You can set up timer for start time, trigger time and alarm time ranging from 1 to 999 seconds.
  • Page 18 7-inch SIP Indoor Touch Screen PoE Video Intercom VTS-700P Security>Door Unlock If customer has the HAC-1000 Z-Wave Gateway that controls Z-Wave door lock and other functions, user can set up door unlock event, home mode, sleep mode and away mode via API.
  • Page 19 7-inch SIP Indoor Touch Screen PoE Video Intercom VTS-700P Home Mode Input 'curl --anyauth "http://admin:admin@192.168.0.253:5000/scenepost.html?fun=execute&id=1" &'. If you have changed the password, make sure the new password is correctly typed. Sleep Mode Input 'curl --anyauth "http://admin:admin@192.168.0.253:5000/scenepost.html?fun=execute&id=2" &' . If you have changed the password, make sure the new password is correctly typed.
  • Page 20 7-inch SIP Indoor Touch Screen PoE Video Intercom VTS-700P Security>DI Setting The VTS-700P provides DI1 to DI6 for NC (normal close) and NO (normal open) setting. Click Save when finished. Security>DI Check Setting In Security mode, DI1 to DI4 can be set to check and trigger alarm.

  • Page 21: Intercom

    7-inch SIP Indoor Touch Screen PoE Video Intercom VTS-700P 4.5 Intercom Intercom>SIP Basic Setting Door Phone P2P mode: type in Door Phone IP address (for example, HDP-1100PT) SIP register mode: type in Door Phone subscriber number (SIP ID@IP PBX IP address).
  • Page 22 7-inch SIP Indoor Touch Screen PoE Video Intercom VTS-700P Intercom>SIP Server Setting Username: subscriber number Password: type in password Server: IP address of SIP server (For example, IPX-2100) Click Save when finished.
  • Page 23 7-inch SIP Indoor Touch Screen PoE Video Intercom VTS-700P Intercom>Camera Setting User can add up to 4 IP cameras by typing camera IP address (For example, ICA-3250/4250 or HDP-1100PT). Camera Timeout: Set up the time to watch camera. Click Save when finished.

  • Page 24: System

    7-inch SIP Indoor Touch Screen PoE Video Intercom VTS-700P Intercom>Volume Control Adjust the volume of the VTS-700P. Click Save when finished. 4.6 System System>Network Boot Protocol: 1. DHCP 2. Static: need to type in detailed IP address Click Save when finished.
  • Page 25 7-inch SIP Indoor Touch Screen PoE Video Intercom VTS-700P...
  • Page 26 7-inch SIP Indoor Touch Screen PoE Video Intercom VTS-700P System>Date & Time You may set the Time Zone and may manually configure the system time. System>Maintenance When user gets the latest firmware from Planet website, user can upload the file to update.
  • Page 27 7-inch SIP Indoor Touch Screen PoE Video Intercom VTS-700P System>Reset to Default Setting Reset the VTS-700P by default from the web UI. With that, the network profiles will not be kept, so you will need to access the VTS-700P via the default IP. System>Reboot...
  • Page 28 7-inch SIP Indoor Touch Screen PoE Video Intercom VTS-700P System>LCD Setting For inactivity, user can set up either slideshow or screen off timer. Click Save when finished. System>UI Setting User can type the names for 4 DI and 4 scenes shown below. These names will be shown on the main page.
