720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE
HDP-5260PT
720p SIP Multi-unit Apartment
Vandalproof Door Phone with
RFID and PoE
HDP-5260PT
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDP-5260PT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Planet Networking & Communication HDP-5260PT

Summary of Contents for Planet Networking & Communication HDP-5260PT

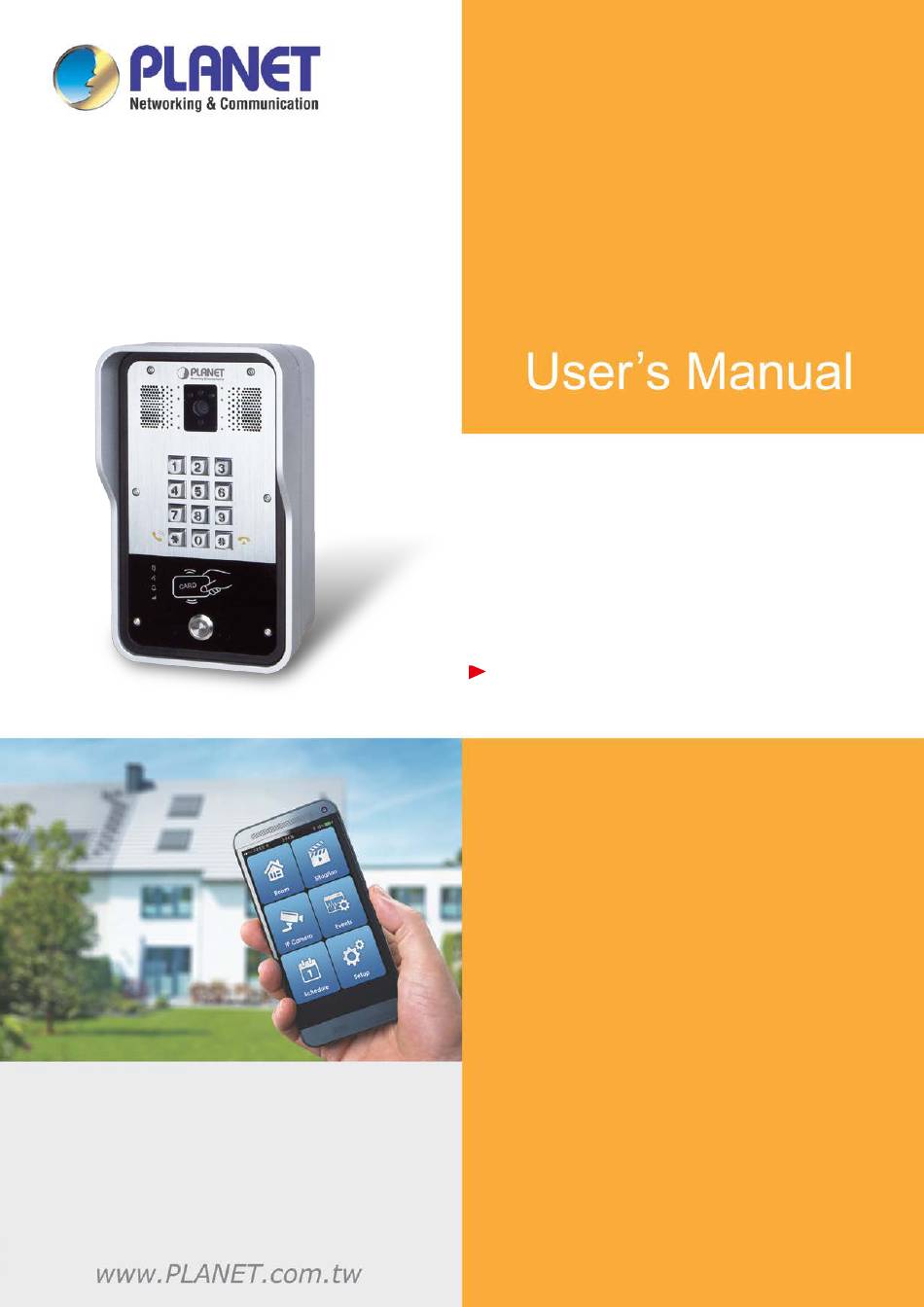

  • Page 1 720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT 720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID and PoE HDP-5260PT...
  • Page 2 720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT Copyright Copyright  2016 by PLANET Technology Corp. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of PLANET.
  • Page 3 Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately. Revision User’s Manual of 720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID and PoE Model: HDP-5260PT Rev: 1.00 (August, 2016) Part No. EM-HDP-5260PT_v1.0...

  • Page 4: Table Of Contents

    720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT Table of Contents Chapter 1. Product Introduction ........................6 Package Contents ........................6 Overview ............................6 Specifications ..........................10 Chapter 2. Hardware Interface ........................12 Physical Descriptions ........................ 12 Hardware Installation .........................
  • Page 5 720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT 3.6.3 Door Access ....................... 49 3.6.4 Door Log ........................50 Door Phone..........................52 3.7.1 Auto Provision ......................52 3.7.2 Syslog ......................... 54 3.7.3 Config ......................... 56 3.7.4 Update ........................57 3.7.5...

  • Page 6: Chapter 1. Product Introduction

    Security is Ensured with PLANET Video Door Phone PLANET HDP-5260PT is a SIP Door Phone with PoE feature. It supports H.264/H.263 compression format and delivers excellent picture quality in 720p HD resolutions at 10~30 frames per second (fps). The door phone has night vision that can capture any unusual activity in low light.
  • Page 7 SIP 2.0 Standard Compliance The HDP-5260PT supports Session Initiation Protocol 2.0 (RFC 3261) for easy integration with general voice over IP system. The IP phone is able to broadly interoperate with equipment provided by VoIP infrastructure...
  • Page 8 HDP-5260PT A Door Guard for Extreme Conditions The HDP-5260PT comes with a robust door intercom for apartment complexes to ensure maximum resilience and security. Its camera with night vision and resilience to dust, water (IP65) and vandalism (IK10) is watchful, making sure the area remains safe.
  • Page 9 720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT Finding the Door Phone via Planet Search Tool PLANET Search Tool is a simple, freely-available application for locating intercoms from the IP family in the network. After searching the network, the application shows the device name, firmware version and IP address of all intercoms found on a chart.

  • Page 10: Specifications

    720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT 1.3 Specifications HDP-5260PT Product Camera 1280 x 760, CMOS Image Device H.264/H.263 Video Codec JPEG/PNG/BMP/GIF Image Codec MP4/3GP/FLV Video Format Monitoring Range 5 meters White LED x 3, effective up to 5 meters...
  • Page 11 720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT RTP/RTCP/SRTP STUN OpenVPN SNTP FTP/TFTP HTTP/HTTPS TR069 Intercom, RFID card, call log, open door log, programmable DSS key, Functions network time synchronization, speed dial, auto-answering, hotline General Keypad...

  • Page 12: Chapter 2. Hardware Interface

    720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT Chapter 2. Hardware Interface 2.1 Physical Descriptions Product Dimensions (W x D x H) 223 x 130 x 74 mm Net Weight 1.52kg Front Panel Interface Description IP65 and IK10 outdoor housing for rigorous environment.
  • Page 13 720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT Interface Description The door phone has two built-in microphones hidden Mics in the pinholes located on the front panel. Use RFID cards to unlock the door by touching RFID reader of device.
  • Page 14 720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT I/O Control Instruction After removing the front panel of the HDP-5260PT, there are two terminal block connectors for power connection and digital I/O connections as shown below: Electric-lock...
  • Page 15 720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT Power Connector The HDP-5260PT requires either IEEE 802.3af/at PoE or DC power from the power connector. The picture shows the two-pin connector comes with system power source of 12V DC, 1A (maximum for the two-pin connector).

  • Page 16: Hardware Installation

    HDP-5260PT 2.2 Hardware Installation The HDP-5260PT is constructed of four parts as shown below. Prior to the installation, the installer is required to remove the front panel of the HDP-5260PT for wall mounting. Please follow the steps below for the installation.
  • Page 17 B. Use an electric drill to drill the 4 holes marked on the mounting template. It is recommended to drill about 50mm deep. Remove the template when finishing drilling. C. Push or hammer screw anchors into the drilled holes. While drilling or fixing the HDP-5260PT, hold it tight or else it may drop that may accidentally hurt the installer. Caution...
  • Page 18 720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT Step 3: Removing Front Panel With hex wrench, remove the front panel as shown in Figure 3 (Turn counter-clockwise) and Figure 4. Figure 3 Figure 4 With Phillips screwdriver, unpack the rain shade and the main part of the intercom as shown in Figure 5.
  • Page 19 720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT Step 4: Back Panel Fixing and Cabling x 40 mm Figure 6 Figure 7 A. Select the hole for cable supply; cable length of 15cm to 20cm is recommended.
  • Page 20 720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT Step 5: Mounting M4 x 16 mm Figure 8 MP3 x 16 mm Figure 9 A. Use the 6 screws to tighten the main part (together with the rain shade) of the intercom on the back panel as shown in Figure 8.

  • Page 21: Initial Utility Installation

    2.3 Initial Utility Installation There are two methods as shown below to search the HDP-5260P. Method 1: Open the Planet Door Phone Finder Utility. Press the Refresh button to search the HDP-5260PT and find the IP address. Method 2: Press and hold the “#” key for 3 seconds and the door phone will report the IP address by voice.

  • Page 22: Chapter 3. Web-Based Management

    720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT Chapter 3. Web-based Management Please take a few minutes to read through this guide to familiarize with the steps required to set up your door phone. This chapter provides setup details of the door phone Web-based Interface.

  • Page 23: Status

    720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT 3.2.1 Status On this page, you can see the information of the network connection mode and accounts. Status Field Name Description Shows the configuration information for WAN port, including connection mode of WAN Network port (static, DHCP or PPPoE), MAC address and IP address of WAN port.

  • Page 24: Wizard

    720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT 3.2.2 Wizard A. Select the appropriate network mode. The equipment supports three network modes: B. Static IP mode is selected; click <Next> to go to Quick SIP Settings or click <Back> to return to the Wizard...
  • Page 25 720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT C. This step is for registration to IP PBX. Please fill in the IP of IP PBX, Authentication User name and Authentication Ppassword. Tick <Enable Registration>. D. Check the information that you have filled in, and then click <Finish>.

  • Page 26: Language

    720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT 3.2.3 Language Select the language you prefer and click <apply>. 3.2.4 Time & Date Set the time zone and SNTP (Simple Network Time Protocol) server on this page to automatically obtain time...

  • Page 27: Network

    720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT 3.3 Network 3.3.1 WAN Field Name Description WAN Status Active IP address The current IP address of the equipment...
  • Page 28 720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT Field Name Description WAN Status Current subnet mask The current subnet mask Current IP gateway The current gateway IP address MAC address The MAC address of the equipment WAN Settings Select the appropriate network mode.

  • Page 29: Qos & Vlan

    720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT Service Port Settings Web Server Type Specify Web Server Type – HTTP or HTTPS Port for web browser access. Default value is 80. To enhance security, change this from the default. Setting this port to 0 will disable HTTP access.
  • Page 30 720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT divide a network by restricting the transmission of broadcast frames. In practice, VLANs are distinguished by the use of VLAN IDs. QoS & VLAN Field Name Description Link Layer Discovery Protocol (LLDP) Settings...

  • Page 31: Web Filter

    720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT QoS & VLAN Field Name Description Link Layer Discovery Protocol (LLDP) Settings Enables the telephone to synchronize its VLAN data with the Network Switch. Enable Learning The telephone will automatically synchronize DSCP, 802.1p, and VLAN ID values Function even if these values differ from those provided by the LLDP server.

  • Page 32: Security

    720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT Web Filter Setting Select <enable web filter> and click <apply> to take effect. Be sure that the filter range includes the IP address of the configuration computer. 3.3.4 Security...

  • Page 33: Ddns

    720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT 3.3.5 DDNS...

  • Page 34: Voip

    720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT 3.4 VoIP 3.4.1 SIP...
  • Page 35 720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT Field Name Description Basic Settings (Choose the SIP line to be configured) Shows registration status. If the registration is successful, the display will be Status registered; if not successful, the display will not be registered. If a wrong password is given, a 403 error will be shown.
  • Page 36 720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT Field Name Description Enable Session If enabled, this will refresh the SIP session timer per RFC4028. Timer Registration SIP re-registration time. Default is 60 seconds. If the server requests a different time, Expires the phone will change to that value.

  • Page 37: Stun

    720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT Field Name Description above 1500 bytes Enable DNS SRV Enables use of DNS SRV records SIP Global Settings Enable Strict Branch -- The value of the branch must be after”z9hG4bK” in the VIA Strict Branch field of the INVITE message received, or the phone will not respond to the INVITE.
  • Page 38 720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT STUN Field Name Description STUN NAT Traversal Shows whether or not STUN NAT Transversal is successful. Server Address STUN Server IP address Server Port STUN Server Port – Default is 3478.

  • Page 39: Intercom

    720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT 3.5 Intercom This part is about the intercom of the HDP-5260PT including DSS Key (Function Key), audio and video, DND, etc. 3.5.1 Function Key As for the programmable keys in phone software (depending on hardware), you can configure a different feature for each key.
  • Page 40 720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT DSS Key Number Line Subtype Usage Type In speed dial mode, you Fill out the Speed Dial called The SIP account can define whether this call is allowed to be Hot Key party’s SIP...

  • Page 41: Audio & Video

    720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT 3.5.2 Audio & Video This page configures audio parameters such as voice codec, speak volume, mic volume and ringer volume. Audio & Video Field Name Description Audio Settings First Codec The first codec choice: G.711A/U, G.722, G.723.1, G.726-32, G.729AB...

  • Page 42: Dnd

    720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT Audio & Video Field Name Description SPK Output Volume Set the speaker volume level. Broadcast Output Volume Set the broadcast output volume level. Signal Tone Volume Set the audio signal output volume level.

  • Page 43: Feature

    720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT Field Name Description DND Methods Settings DND option Set the DND option; default is phone. DND Line Settings SIP1 Enable or Disable SIP1 DND SIP2 Enable or Disable SIP2 DND...

  • Page 44: Mcast

    720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT Feature Field Name Description Enable Auto Answer Enable or disable auto answer. Enable Auto Answer Enable or disable auto answer. Call Switched Time Set the call switched time.

  • Page 45: Action Url

    720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT 3.5.6 Action URL Action URL Settings URL for various actions performed by the phone. These actions are recorded and sent as xml files to the server. Sample format is http://InternalServer /FileName.xml 3.6 Door Phone...

  • Page 46: Door Phone

    720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT 3.6.1 Door Phone Door Phone Field Name Description Initial Value EGS Settings Mono-stable: There is only one fixed action status for door unlocking. Bi-stable: There are two actions and statuses for door...
  • Page 47 HDP-5260PT Door Phone Field Name Description Initial Value password length is 4. Device description displayed on IP scanning tool HDP-5260PT Video Description software. Sip Door phone Enable Access Table: enter <Access Code> for opening door during calls. Enable Access Table Enable Disable Access Table: enter <Remote Password>...

  • Page 48: Door Card

    720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT 3.6.2 Door Card Door Card Field Name Description Door Card Table Index The serial number of issuer card. Name The name of issuer card. The number of issuer card.

  • Page 49: Door Access

    720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT Door Card Field Name Description Card Issuing: In the issuing mode, just put the card in the slot to add ID cards. Card Revoking: In the revoking mode, just put the card in the slot to delete ID cards.

  • Page 50: Door Log

    720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT Door Access Field Name Description Access Table According to entrance guard access rules, single or multiple rules on this list can be chosen to delete operation. Add Access Rule...
  • Page 51 720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT the link to save target as the door log can be exported in the CSV format. Door Log Field Name Description Door Opening Log Result Show the results of door opening...

  • Page 52: Door Phone

    720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT 3.7 Door Phone 3.7.1 Auto Provision The equipment supports PnP, DHCP, and Phone Flash to obtain configuration parameters. They will be queried in the following order when the equipment boots.
  • Page 53 720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT Auto Provision Field Name Description Password Password for configuration server. Used for FTP/HTTP/HTTPS. Config Encryption Key Encryption key for the configuration file Common Config Encryption Key Encryption key for common configuration file...

  • Page 54: Syslog

    720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT Auto Provision Field Name Description 3. Update at time interval – update at periodic update interval TR069 Settings Enable TR069 Enable or disable TR069 configuration Enable TR069 Warning Tone...
  • Page 55 720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT Level 2: critical -- System is probably working incorrectly. Level 3: error -- System may not work correctly. Level 4: warning -- System may work correctly but needs attention.

  • Page 56: Config

    720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT 3.7.3 Config Config Field Name Description Save Save the current equipment configuration. Clicking this will save all configuration Configuration changes and make them effective immediately. Backup Save the equipment configuration to a txt or xml file. Please remember to right-click on Configuration the choice and then choose “Save Link As.”...

  • Page 57: Update

    720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT 3.7.4 Update This page allows uploading configuration files to the equipment. Upate Field Name Description Browse the config file, and press Update to load it to the equipment. Various types of...

  • Page 58: Reboot

    720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT 3.7.6 Reboot Some configuration modifications require a reboot to become effective. Clicking the Reboot button will cause the equipment to reboot immediately. Be sure to save the configuration before rebooting.

  • Page 59: Appendix A: Open Door Mode

    720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT Open Door Mode Appendix A: 1. Local a. Local Password  Go to [Door Phone]>[Door Phone] to set [Local Password] (Default is 6789.).  Use the device's keypad to input password and "#" key, then the door will be unlocked.
  • Page 60 720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT  Use the device's keypad to input access code and "#" key, then the door will be unlocked. 2. Remote a. Visitors call to owner Remote Password Step 1: Go to Door Phone  Set Remote Password (The default is "*").
  • Page 61 720p SIP Multi-unit Apartment Vandalproof Door Phone with RFID & PoE HDP-5260PT...

  • Page 62: Appendix B: How To Use Icf-1800 To Open Door Via Dtmf Code

    HDP-5260PT-C = 203 ICF-1800 = 204 Step 3. Go to the Web UI of HDP-5260PT-A/B/C to set “Press the DSS key to call ICF-1800” or “Press 204 (Numeric Keyboard) to call ICF-1800”. Step 4. When you press “204” at HDP-5260PT, the ICF-1800 will ring. The ICF-1800 could talk with visitor and open door.
