1
Power supply (charger)
2
Connect the RED (+) cable to 1 and the BLACK (-) cable to 2 on the
outdoor unit's connector.
3
To connect each cable with the connector of the outdoor unit:
Press the the button to open the connector holes
a
b
Insert the powerline and release
Unlock Setting (Installation door opener)
Contact 4 and 6 is a potential-free normally open contact.
Contact 5 and 6 is a potential-free normally closed contact.

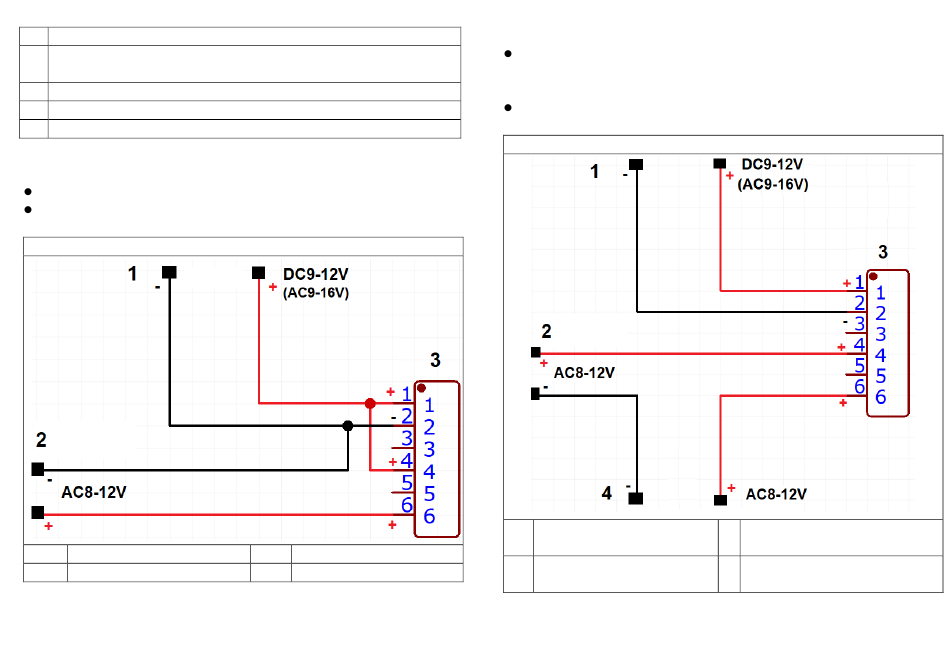

Method 1 (one transformer)
1
Bell transformer
3
Connector (outdoor unit)
2
Release buzzer
Info methode 1:
If the door opener is pressed and the outdoor unit switches off, then the battery
must be inserted for buffering. Meaning: The transformer is supplying too little
power for the activation of both devices at the same time.
Check the voltage required by the door opener.
Method 2 (two transformer)
1
Bell transformer (power supply
outdoor unit)
Connector (outdoor unit)
3
2
Release buzzer
Transformer (power supply release
4
buzzer)
