Summary of Contents for Ken A Vision VisionScope 2 T-22011
- Page 1 VisionScope 2 Instruction Manual T-22001 T-22001C T-22011 T-22011C T-22021 T-22021C T-22041 T-22041C T-22051 T-22051C T-22061 T-22061C...
-
Page 3: Table Of Contents
Table on Contents Introduction Packing Contents Microscope Set-Up Guide Specifications Troubleshooting... -
Page 4: Introduction

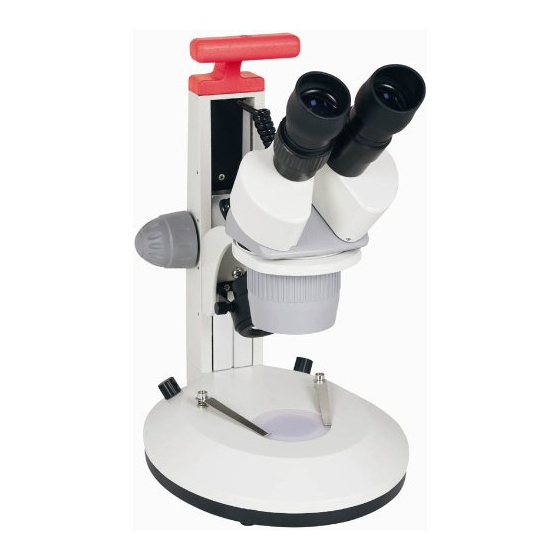

Introduction Thank you for purchasing the VisionScope 2. The VisionScope 2 is specifically designed to view large specimens and objects under our easy to view, high-quality objective lenses that will magnify 10 to 80 times. The VisionScope 2 series uses upper (incident) and lower (transmitted) LED lighting to keep your specimen cool. -
Page 5: Packing Contents
Packing Contents Instruction Manual T-22001 T-22001C T-22011 T-22011C T-22021 T-22021C T-22041 T-22041C T-22051 T-22051C T-22061 T-22061C Microscope Instruction Warranty Sheet Cover Manual Two (2) Two (2) Eyepieces One (1) head Eyepiece Guards Either 1x / 3x or 2x / 4x Black and White Frosted Objective Cover... -
Page 6: Microscope Set-Up Guide
Set-Up VisionScope 2 Stereomicroscope The VisionScope 2 can be set up in a matter of minutes. To get the most out of this amazing teaching tool, follow these step-by-step directions: 1. After unpacking the box, remove the VisionScope 2 from the protective plastic bag and remove the protective coverings from the lenses on the head and the eyepieces. - Page 7 NiMH battery (Part # VFBATBU2), contact your nearest Ken-A-Vision dealer. 8. To focus on a specimen, remove the eyepiece guards and view the specimen on the desired objective lens.
-
Page 8: Specifications
Specifications Product Number T-22001 T-22011 T-22021 T-22041 Standard Features 15.5cm Working Distance Low Voltage upper and lower illumination Upper and Lower Dimmer control 26mm oversized eyepices (2) Carry Handle Interchangeable heads Heads SC613BH Binocular 1X; 3X 30° Stereo Head SC624BH Binocular 2X;... - Page 9 Cordless Models Product Number T-22051 T-22061 T-22001C T-22011C Standard Features 15.5cm Working Distance Low Voltage upper and lower illumination Upper and Lower Dimmer control 26mm oversized eyepices (2) Carry Handle Interchangeable heads Heads SC613BH Binocular 1X; 3X 30° Stereo Head SC624BH Binocular 2X;...
- Page 10 Cordless Models Product Number T-22021C T-22041C T-22051C T-22061C Standard Features 15.5cm Working Distance Low Voltage upper and lower illumination Upper and Lower Dimmer control 26mm oversized eyepices (2) Carry Handle Interchangeable heads Heads SC613BH Binocular 1X; 3X 30° Stereo Head SC624BH Binocular 2X;...
-
Page 11: Troubleshooting
Troubleshooting This section provides some useful tips on how to solve common problems while setting up or using the VisionScope 2: I can’t see an image. I only see a partial image. • Check to see if the power supply is plugged into an outlet/or charged if cordless. - Page 12 © 2011 Ken-A-Vision Mfg. Co., Inc. All rights reserved. Other trademark names may be of their prospective owners. No part of the contents of this publication may be reproduced or transmitted in any form without the written permission of Ken-A-Vision Mfg. Co., Inc.
