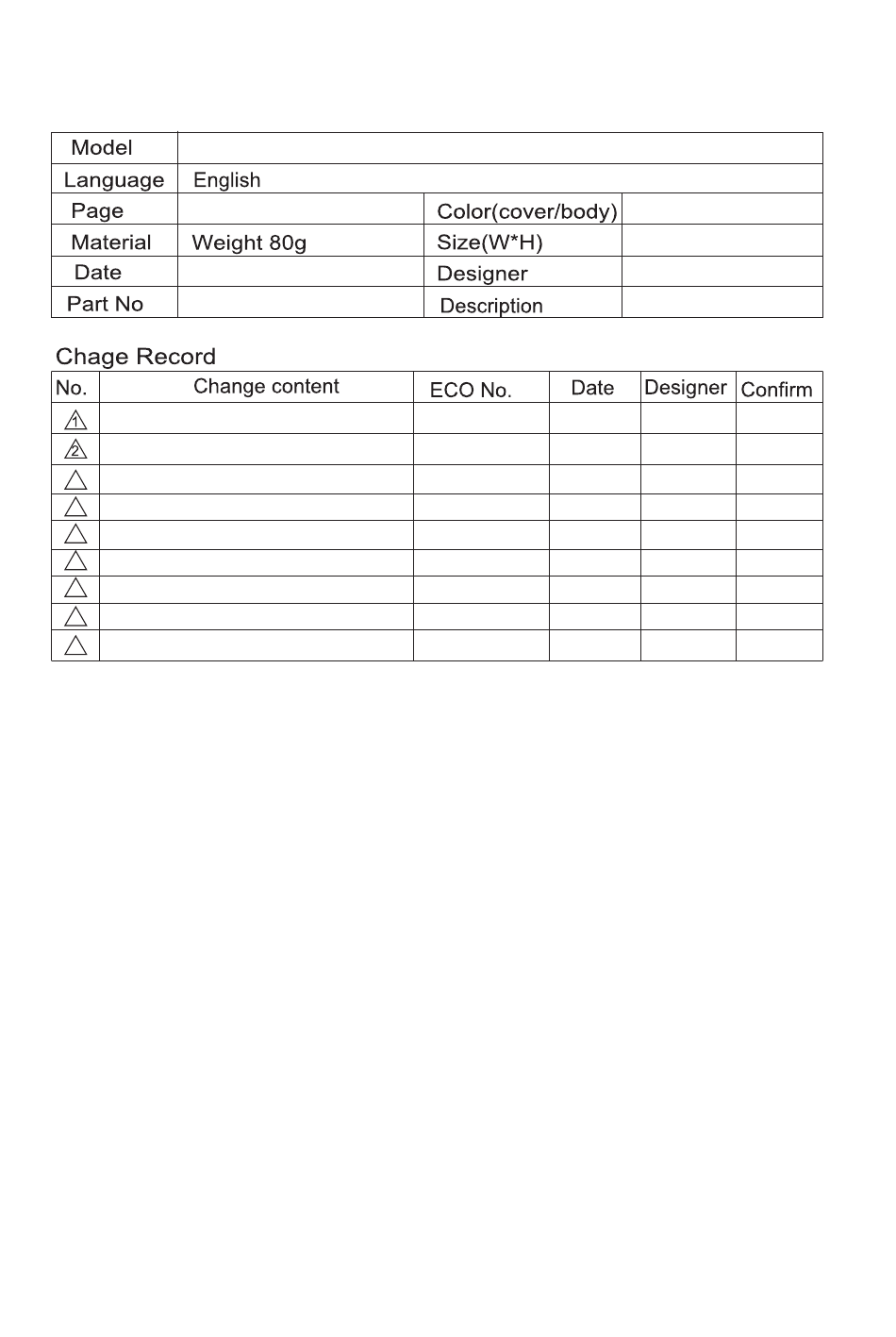

VK76** Series
2
20
20
20
0
2015/10/20
MFL68009418
3
4
5
6
7
8
9
VC53** Series
2/1
P.H.LONG
Manual,Service

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VK76 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for LG VK76 Series

  • Page 1 VC53** Series VK76** Series P.H.LONG 2015/10/20 Manual,Service MFL68009418...
  • Page 2 VK76** Series VC53** Series October,2015 Vietnam MFL68009418...
  • Page 3: Table Of Contents

    CONTENTS SAFETY PRECAUTIONS..........................3 CAUTIONS ..............................3 DESCRIPTION..............................4 SPECIFICATIONS ............................4 DISASSEMBLY OF THE MAIN PARTS.......................5 TROUBLE SHOOTING GUIDE........................9 SCHEMATIC DIAGRAM ..........................12 CIRCUIT DIAGRAM ...........................13 EXPLODED VIEW ............................14 - 2 -...
  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS BEFORE OPERATING THIS VACUUM CLEANER, READ THIS SERVICE MANUAL THOROUGHLY, AND OBSERVE EACH POINT CAREFULLY. 1. Motor filter(Air Cleaner) NOTE : Reusing of the exhaust filter. Do not wash filter with water. 1) This filter is reusable. Do not brush the filter. This will cause permanently 2) Never use the vacuum cleaner without filter.
  • Page 5: Description

    590×325×330 5.20kg 9.0kg 435×282 ×258 - 4 -...
  • Page 6: Disassembly Of The Main Parts

    Methods for Disassembly, Assembly and Repair of Main Parts Need-to-know for disassembly 4) Loosen the screws in the base of the main unit. (with TPL4X20: 7 pieces, type driver) Pull out the plug before disassembly and adjustment. 1. All the parts are almost connected by screws or assembled by insertion.
  • Page 7 2. Method for disassembling case assembly / cord 4) Lift the Case Assembly reel 1) Loosen the screw fixing the chamber.(with TPL4X16:1 piece, type drive) 5) Lift the Cord Reel Assembly 2) Unplug the cable on the board. (Hold the board tightly not to move) 3.
  • Page 8 3. Replacement of motor 4.Replacement of PWB Assembly 1) Disassemble the motor assembly as shown in the 1) After removing the cable on board (Page 6) figure. 2) Loosen the 1 screw fixing the board.(with 2) For re-assembly after disassembling the motor FAB3X8: 2 pieces, type drive) cover, do so in the reverse sequence and insert...
  • Page 9 5.Replacement of compressor motor Remove the 4 screws fastening the inner cover .(with TPL4X10:4 piece, type drive) Pull out the inner cover. Remove the 2 screws fastening the motor compressor motor. (with TPL4X10:2 piece, type drive) Pull out the compressor motor and disconnect the two lead wires from it.
  • Page 10: Trouble Shooting Guide

    TROUBLE SHOOTING GUIDE 1. SWITCH ON BUT MOTOR DOSE NOT TURN. CHECKING CAUSE SOLUTION Poor plug insertion Insert again Power cord cut Repair or exchange CHECK THE POWER SOURCE Interior lead wire cut Exchange the lead wire Motor(stator armature) coil cut Exchange the motor or damaged 2.
  • Page 11 3. SWITCH OFF BUT MOTOR TURNS Poor connection Repair. 4. WEAK SUCTION POWER Motor armature cut Exchange the motor Foreign matters attached to Low rotation speed Remove the foreign matters the impeller Inquire to the power utility Low voltage company Hose and extension wands Remove the foreign matters are clogged with foreign...
  • Page 12 5. VIBRATION NOISES Loose parts Secure firmly Unbalanced motor assembly Exchange or repair the motor Foreign matters are attached Remove the foreign matters to the impeller Armature is cut or foreign Exchange the motor matters attached Remove foreign matters 6. RADIO, TV RECEPTION DISTURBANCE Poor cord, lead wire Exchange cord, lead wire Poor electric connector or...
  • Page 13: Schematic Diagram

    SCHEMATIC DIAGRAM - 12 -...
  • Page 14: Circuit Diagram

    CIRCUIT DIAGRAM - 13 -...
  • Page 15: Exploded View

    #EV# EXPLODED VIEW BASE ASSEMBLY, BODY EADBA1 AHDBR1 AJWBA1 MDSBA2 ACVBA1 MDSBA1 MCKBT1 MAMBB1 MEA CB1 MGECC1 EADSP1 AGRCP1 MDSBA4 MJHBC1 AJWBA1 AHJBA1 - 14 -...
  • Page 16 #EV# COVER ASSEMBLY, BODY MCKCH1 MCKDC1 MEBCC1 MDTCG1 MCKCB2 MDTCG2 MBGCC1 MCKCT1 MHYCC3 EADCS1 MCKCB1 MHYCC1 EAUCM1 MHSCS1 MCKIC1 MHYCC2 MJHCS1 - 15 -...
  • Page 17 #EV# GUIDE ASSEMBLY,AIR AECCG1 MGJPS1 MDSGA2 MJCTI1 MEBTH1 MJMTC1 MHYAG1 MDSGA1 MDJFM2 MDJFM1 MDSGA3 MDQBF1 MDSGA4 - 16 -...
  • Page 18 #EV# TANK ASSEMB LY,DUST AJLTD1 MCKCC1 MFQTM1 MCDTC1 MDSTA2 MCKTC1 MDSTA1 MFGTL1 MBGTB1 MHYTC2 MGJTR1 MHYTC1 MJMTD1 MGZTR1 MCKCH2 MHYTC3 MFCTL1 - 17 -...
  • Page 19 #EV# HOUSING ASSEMB LY,MO TOR ADQBE1 EBRBM1 MDSHA1 AENBH1 MDSHA3 MEKBH1 EADBA1 MDSHA2 MDSHA4 MDSHA5 MDSBM1 EAUBA1 MCQBM1 - 18 -...
  • Page 20 #EV# ACCESSORIES AEMAF1 AGBN62 MFVAC1 AGRPT1 AGBNU1 ABCAD1 - 19 -...
