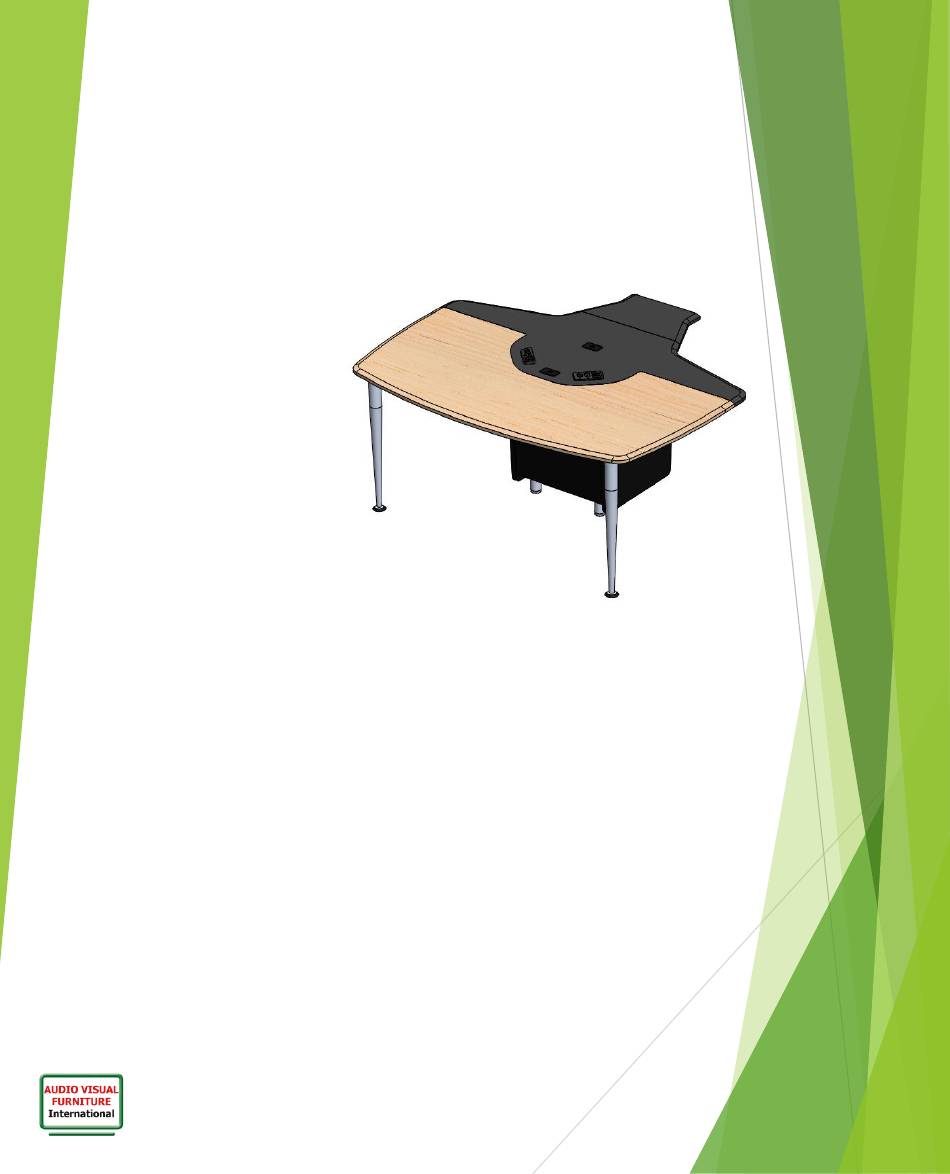

- Page 1 Table T324 Assembly Instructions www.video-furn.com 288 Don Hillock Drive |Aurora |Ontario|L4G 0G9 | 1.877.834.3876...
-
Page 2: Tools Required
Parts Included Hardware Included ¼-20 Mending Rectangular 8mm Wood Dowel 1” Screw 1” CAM Plate 3/4” Bolt Dowel grommet Tools Required Not Included Philips + Basic Wrench or Socket set... - Page 3 Setup Find a carpet or soft non-abrasive surface to assemble on. Assembly requires 2 people to flip/move table. Step 1 Install pins Per side Step 2 Attach base to sides Dowel Step 3 Attach tabletop to sides Dowel...
- Page 4 Assembly Instructions Step 4 Align/place Top and Bridge Step 4 Install Legs Small ¼-20 3/4” Bolt Tall Basic Wrench or Socket set 288 Don Hillock Drive |Aurora |Ontario|L4G 0G9 | www.video-furn.com 1.877.834.3876...
- Page 5 Assembly Instructions Step 6 Attach mending plates Mending Plate 1” Screw Step 7 Flip table and install PC-Patch Grommets Rectangular grommet 288 Don Hillock Drive |Aurora |Ontario|L4G 0G9 | www.video-furn.com 1.877.834.3876...
- Page 6 Assembly Instructions Step 7 Run cables/wiring. Finish. Options and Accessories 411 Extension. TP800/TP900 Table can be extended to Freestanding TV stand accommodate 4 additional With Single or dual people per extension. Capability (TP800D/TP900D) Has equipment racking capability in rear 3RU. Finished.
