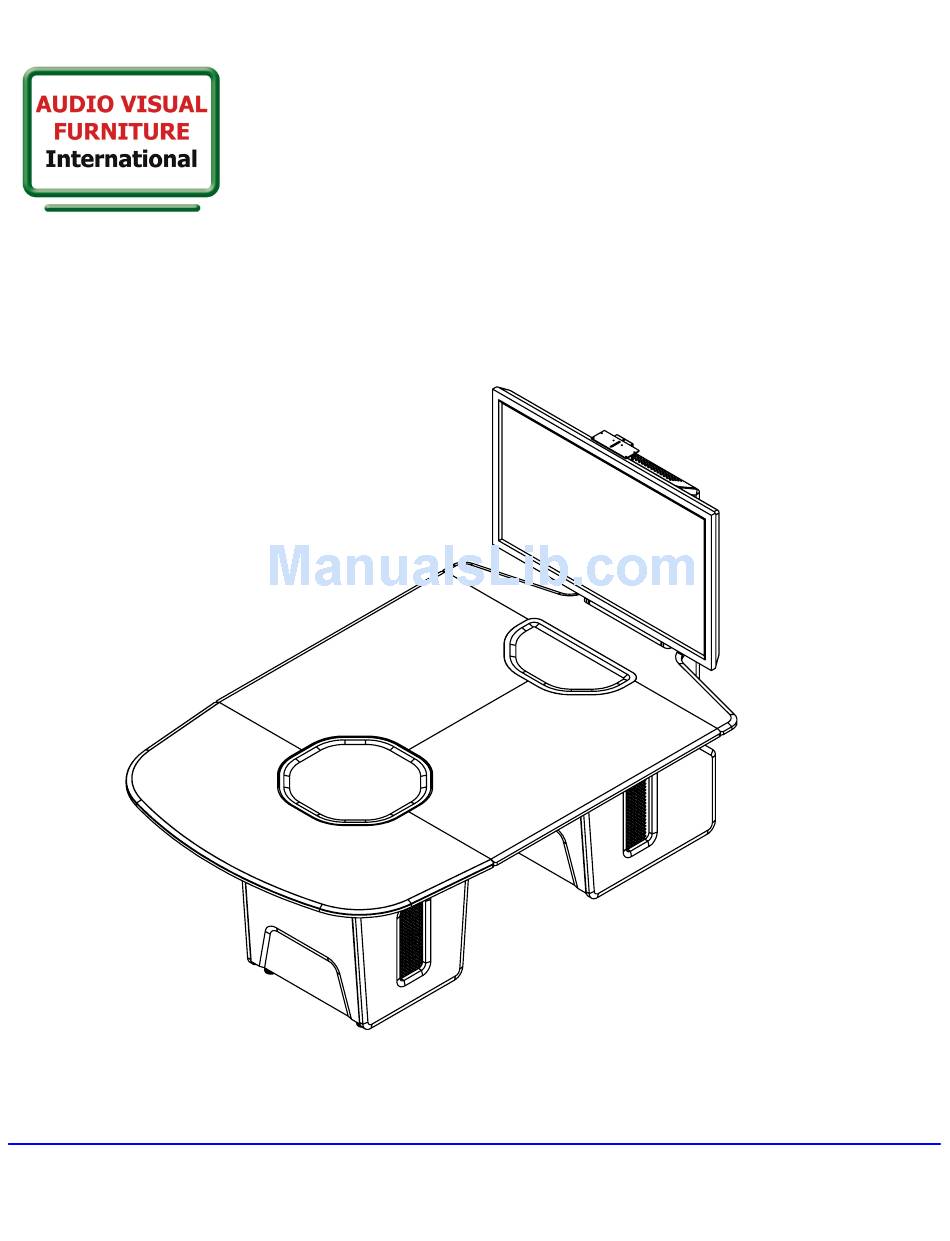

T628-T COLLABORATION TABLE
Assembly and Setup Instructions
AUDIO VIDEO FURNITURE INTERNATIONAL
Aurora , Ontario L4G 0G9
Fax: 1-905-751-1488 Local:905-751-1459
Page 1
www.video-furn.com
of 8
Advertisement
Table of Contents
Related Manuals for Audio Visual Furniture T628-T
Summary of Contents for Audio Visual Furniture T628-T
- Page 1 Page 1 of 8 T628-T COLLABORATION TABLE Assembly and Setup Instructions Note: If you cannot understand these instructions or are concerned about safety of the installation Contact a qualified contractor or contact AVFI at 1-877-834-3876. Confirm all hardware is included before you begin assembly.
- Page 2 Page 2 of 8 SUPPLIED PARTS A-Island Round Island Table base rear Table base front E324 Table top Right Side (1) Left Side (1) PM2 Tube Rack Gable TE-800 Tower 324 Table top Bridge Cap Cable Management bridge PM2_3 9160-10 PM2_3 WITH LOCK SUPPLIED HARDWARE...
- Page 3 Page 3 of 8 1. Align the pins of the brace into the holes and ensure brace seats flush before tightening 2. Tighten the quarter turn one quarter turn until piece is tight 3. Repeat for remaining braces ...
- Page 4 Page 4 of 8 4. Lay out the table tops and fasten the mending plates as indicated securing them with the wood screws provided 5. Using a cordless drill and a phillips (+) bit secure the cam pins into the pre-drilled holes 6.
- Page 5 Page 5 of 8 In the order indicted place each table top piece one at a time and ensure the pins and dowels are properly seated Using a phillips (+) screw driver turn cams one quarter turn until tight 10. Only place addition pieces when the previous pieces have been properly secured 11.
- Page 6 Page 6 of 8 12. Place cut outs into available spaces and secure to mending plates using the wood screws provided 13. Remove the back panel of the TE800 by removing the screws and set it aside 14. Position the TE800 unit onto the base and align the base holes 15.
- Page 7 Page 7 of 8 18. Attach the mounting brackets to the TE800 using a measuring tape for proper height placement 19. Secure using provided hardware M8 nut M8 washer M8 Socket Head Cap Screw 20. Mount the TV Brackets to your TV using the M8 or M6 Bolts provided WARNING: Over tightening these bolts can result in damage to your TV...
- Page 8 Page 8 of 8 21. Insert the mounting bar into the TE800 brackets and centre using a measuring tape 22. WITH ASSISTANCE lift and mount the TV onto the bar and centre it on the mount MOUNTING BAR 23. Postion the assembly cable management bridge into postion under the table 24.
