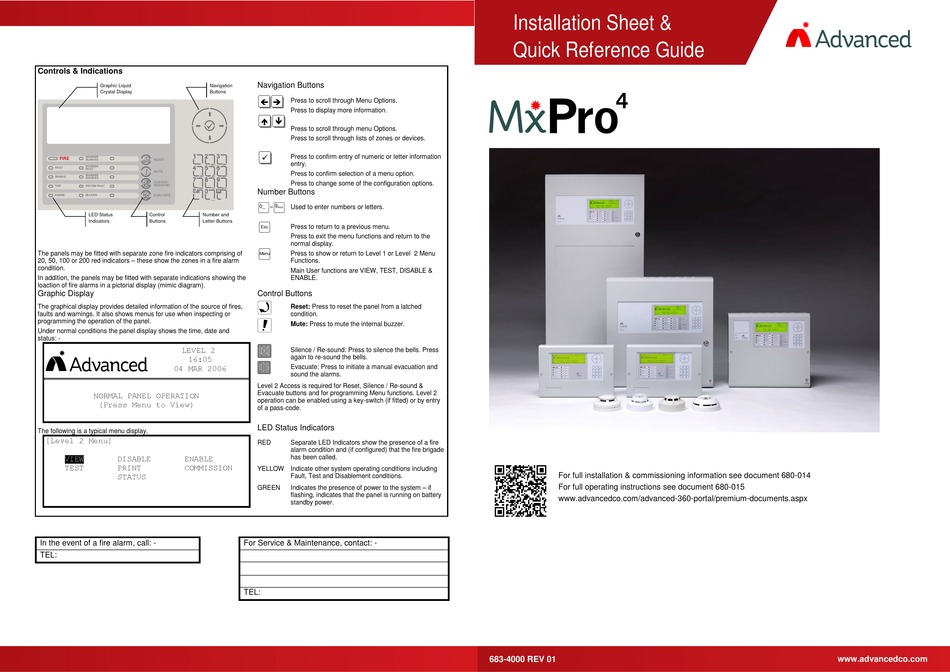

Advanced MxPro4 Installation Sheet & Quick Reference Manual

Hide thumbs Also See for MxPro4:

Advertisement

Quick Links

Controls & Indications
Graphic Liquid
Navigation
Crystal Display
Buttons
F I R E
S O U N D E R
S I L E N C E D
R E S E T
A B C
S O U N D E R
F A U L T
F A U L T
! !
M U T E
S O U N D E R
D I S A B L E
G H I
J K L
D I S A B L E D
S I L E N C E /
R E S O U N D
S Y S T E M F A U L T
T E S T
P Q R S
T U V
E V A C U A T E
P O W E R
D E L A Y E D
LED Status
Control
Number and
Indicators
Buttons
Letter Buttons
The panels may be fitted with separate zone fire indicators comprising of
20, 50, 100 or 200 red indicators – these show the zones in a fire alarm
condition.
In addition, the panels may be fitted with separate indications showing the
loaction of fire alarms in a pictorial display (mimic diagram).
Graphic Display
The graphical display provides detailed information of the source of fires,
faults and warnings. It also shows menus for use when inspecting or
programming the operation of the panel.
Under normal conditions the panel display shows the time, date and
status: -
LEVEL 2
16:05
04 MAR 2006
NORMAL PANEL OPERATION
(Press Menu to View)
The following is a typical menu display.
[Level 2 Menu]
VIEW
DISABLE
ENABLE
TEST
PRINT
COMMISSION
STATUS
In the event of a fire alarm, call: -
TEL:
Navigation Buttons
Press to scroll through Menu Options.
Press to display more information.
 
Press to scroll through menu Options.
Press to scroll through lists of zones or devices.
Press to confirm entry of numeric or letter information
entry.
D E F
Press to confirm selection of a menu option.
M N O
Press to change some of the configuration options.
W X Y Z
Number Buttons
0
9
Used to enter numbers or letters.
to
wxyz
Press to return to a previous menu.
Press to exit the menu functions and return to the
normal display.
Press to show or return to Level 1 or Level 2 Menu
Menu
Functions.
Main User functions are VIEW, TEST, DISABLE &
ENABLE.
Control Buttons
Reset: Press to reset the panel from a latched
condition.
Mute: Press to mute the internal buzzer.
Silence / Re-sound: Press to silence the bells. Press
again to re-sound the bells.
Evacuate: Press to initiate a manual evacuation and
sound the alarms.
Level 2 Access is required for Reset, Silence / Re-sound &
Evacuate buttons and for programming Menu functions. Level 2
operation can be enabled using a key-switch (if fitted) or by entry
of a pass-code.
LED Status Indicators
RED
Separate LED Indicators show the presence of a fire
alarm condition and (if configured) that the fire brigade
has been called.
YELLOW Indicate other system operating conditions including
Fault, Test and Disablement conditions.
Indicates the presence of power to the system – if
GREEN
flashing, indicates that the panel is running on battery
standby power.
For Service & Maintenance, contact: -
TEL:
Installation Sheet &
Quick Reference Guide
For full installation & commissioning information see document 680-014
For full operating instructions see document 680-015
www.advancedco.com/advanced-360-portal/premium-documents.aspx
683-4000 REV 01
