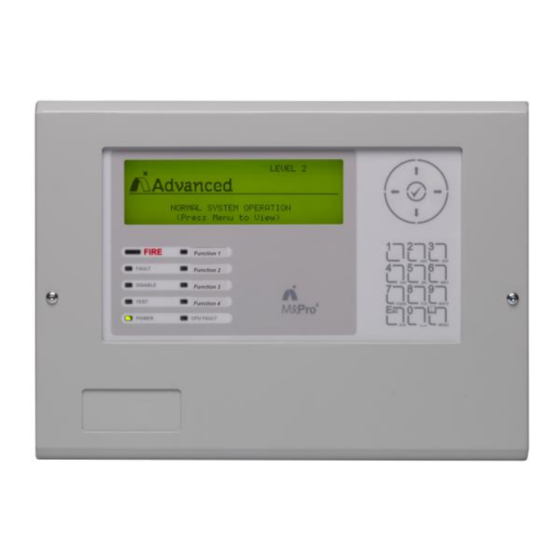

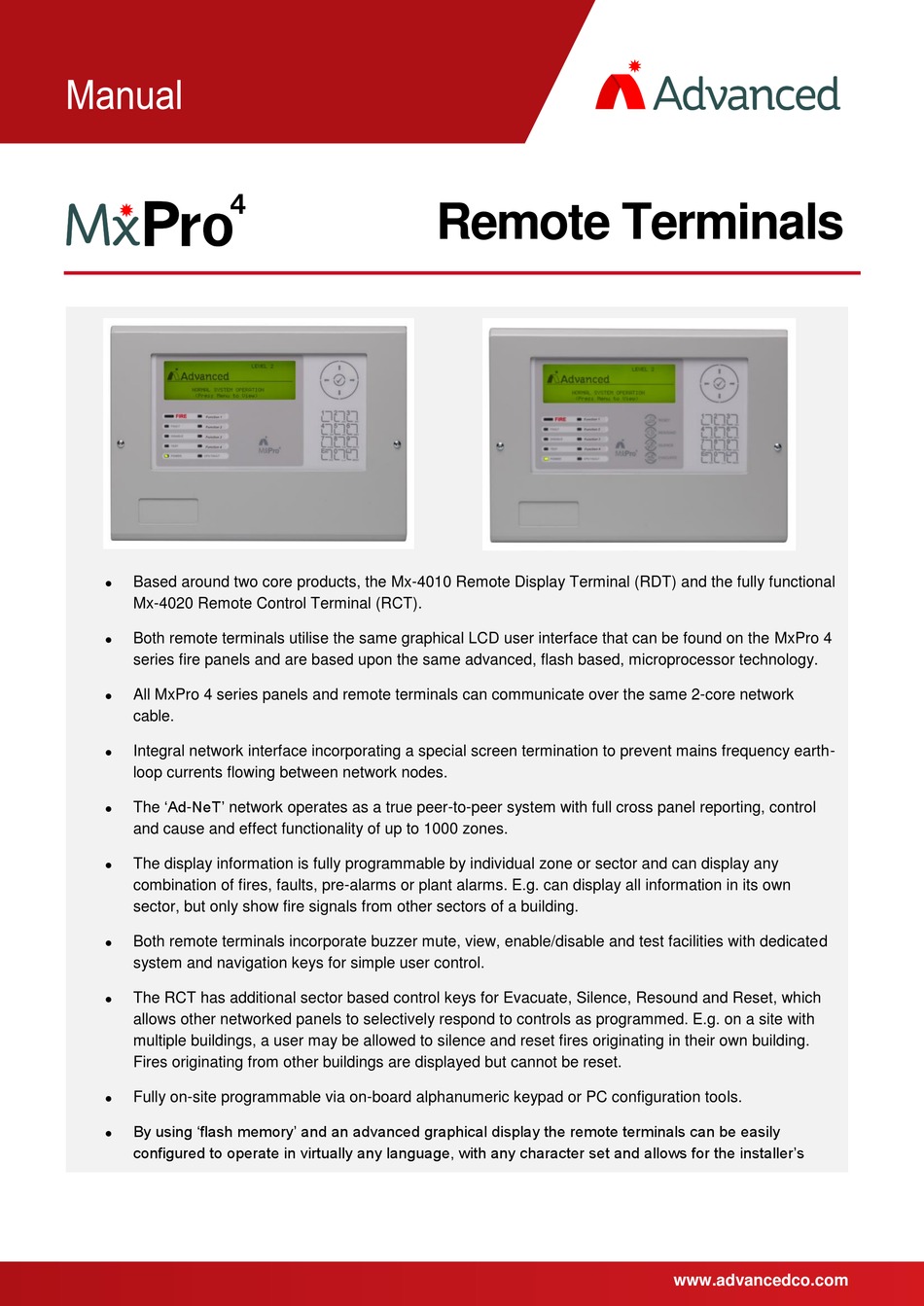

Based around two core products, the Mx-4010 Remote Display Terminal (RDT) and the fully functional
Mx-4020 Remote Control Terminal (RCT).
Both remote terminals utilise the same graphical LCD user interface that can be found on the MxPro 4
series fire panels and are based upon the same advanced, flash based, microprocessor technology.
All MxPro 4 series panels and remote terminals can communicate over the same 2-core network
cable.
Integral network interface incorporating a special screen termination to prevent mains frequency earth-
loop currents flowing between network nodes.
The 'Ad-NeT' network operates as a true peer-to-peer system with full cross panel reporting, control
and cause and effect functionality of up to 1000 zones.
The display information is fully programmable by individual zone or sector and can display any
combination of fires, faults, pre-alarms or plant alarms. E.g. can display all information in its own
sector, but only show fire signals from other sectors of a building.
Both remote terminals incorporate buzzer mute, view, enable/disable and test facilities with dedicated
system and navigation keys for simple user control.
The RCT has additional sector based control keys for Evacuate, Silence, Resound and Reset, which
allows other networked panels to selectively respond to controls as programmed. E.g. on a site with
multiple buildings, a user may be allowed to silence and reset fires originating in their own building.
Fires originating from other buildings are displayed but cannot be reset.
Fully on-site programmable via on-board alphanumeric keypad or PC configuration tools.
By using 'flash memory' and an advanced graphical display the remote terminals can be easily
configured to operate in virtually any language, with any character set and allows for the installer's
logo and company details to be displayed on the LCD display during normal operation.
Remote Terminals
www.advancedco.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MxPro4 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Advanced MxPro4 Series

  • Page 1 Fully on-site programmable via on-board alphanumeric keypad or PC configuration tools.  By using ‘flash memory’ and an advanced graphical display the remote terminals can be easily configured to operate in virtually any language, with any character set and allows for the installer’s logo and company details to be displayed on the LCD display during normal operation.
  • Page 2 Specifications & Ordering: Sales Order Parts: Options: Mx-4010: (RDT) Remote Display Terminal Mxm-008: Semi Flush Bezel Mx-4020: (RCT) Remote Control Terminal Mxp-018: Access Enable Key-Switch Mx-4010/FT: (RDT) with Fault Tolerant Network I/F Mx-4020/FT: (RCT) with Fault Tolerant Network I/F Item Specification Details Display Backlit 240 x 64 graphical LCD...
  • Page 3: Table Of Contents

    Table of Contents Page INSTALLATION ..............................4 .................... 4 DENTIFICATION OF OMPONENTS AND IRCUITS .......................... 5 OUNTING THE NCLOSURE ........................... 5 LECTRICAL ONNECTIONS COMMISSIONING ............................... 6 ..............................6 ASSWORDS ................................6 ................................6 ................................6 ETUP ..........................7 WITCH PERATION USER OPERATING INSTRUCTIONS .........................
  • Page 4: Installation

    1 Installation Only Trained service personnel should undertake the Installation, Programming and Maintenance of this equipment. This product has been designed to comply with the requirements of the Low Voltage Safety and the EMC Directives. Failure to follow the installation instructions may compromise its adherence to these standards.
  • Page 5: Mounting The Enclosure

    1.2 Mounting the Enclosure First, remove the enclosure cover, which is held in place by tamper resistant hexagon key screws. 226mm 35mm These require the use of a 2.5mm Allen Key. 17mm Remove the two screws securing the chassis on which the display and all the electronics are Earth Termination Back Box Fixing...
  • Page 6: Commissioning

    2 Commissioning All commissioning items are accessed by using the navigation keys and selecting the appropriate item from the commissioning menu. Wherever possible the menus have been chosen to follow a similar format to the MX fire panels. [Commission Menu 1] PASSWORDS ZONE EXIT...
  • Page 7: Key-Switch Operation

    “SERVICE NUMBER” - Numbers/Text displayed under fault conditions. “COMPANY LCD LOGO” - Toggle on/off as required “PROGRAM ID” - Displays the full version number of the installed software. “CONFIG DATA - Shows checksum corresponding to terminal configuration - (Moving to the right gives option to erase all configuration data) 2.5 Key-Switch Operation As an alternative to passwords, a key switch can be used to change between Level 2 and Level 1 access on the MX4020 by connecting a key switch to the “KEY-SWITCH INPUT”...
  • Page 8: Multiple Zones / Detailed Fire Information

    3.1.2 Multiple Zones / Detailed Fire Information If there are multiple zones in fire, it is possible to scroll through each zone by pressing the  keys. The top of the display will then list each zone in a fire condition. For example: Zone FIRE-LOCATION More >...
  • Page 9: Control Functions (Mx-4020)

    3.3 Control Functions (Mx-4020) The following control functions are available at access level 2. Reset Press to reset from a fire alarm condition. Resound Press to resound any outputs that have been silenced Silence Press to silence the sounders / bells. This also Mutes the internal buzzer.
  • Page 10 This page is intentionally left blank. www.advancedco.com...
  • Page 11 USER NOTES www.advancedco.com...
  • Page 12 Doc Number: 680-029 Revision: Advanced Electronics Ltd Moorland Way, Cramlington, Northumberland, NE23 1WE UK Tel: +44 (0)1670 707 111 Fax: +44 (0)1670 707 222 Email: sales@advancedco.com Web: www.advancedco.com www.advancedco.com...
