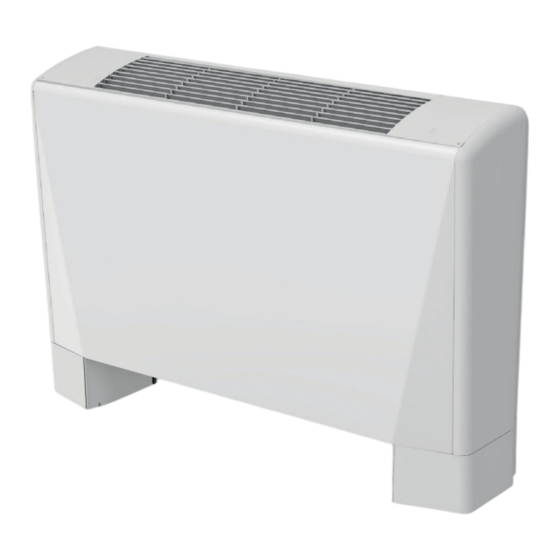

- Page 1 INSTALLATION, OPERATING AND MAINTENANCE MANUAL CENTRIFUGAL FAN COIL UNIT ALLEGRA II 0,6 - 6,7 kW 105 - 1500 m3/h ALLEGRA2-IOM-1901-E www.lennoxemea.com...
-
Page 2: Table Of Contents
USING THE APPLIANCE Using the control panel CLEANING AND MAINTENANCE Ordinary maintenance Cleaning the air fi lter Cleaning the housing and the control panel WHAT TO DO IF... DISMALTING THE APPLIANCE Installation, Operation and Maintenance Manual / ALLEGRA II-IOM-1901-E • 1 •... -
Page 3: Introduction
Protect hands with work gloves transportation. when dismantling the appliance. Do not tread on packs. Do not expose to the Work in PAIRS if the applinance elements. weighs more than 25 kg. Installation, Operation and Maintenance Manual / ALLEGRA II-IOM-1901-E • 2 •... -
Page 4: General Dimensions
1050 1200 1350 1500 1500 1650 1800 Unit lenght with cabinet L (mm) General features 1130 1280 1280 1430 1580 Unit lenght without cabinet M (mm) Power supply: 230V / 1ph / 50Hz ± 10% Installation, Operation and Maintenance Manual / ALLEGRA II-IOM-1901-E • 3 •... -
Page 5: Main Components
6) The safety switch is in the OFF position so that there is no voltage on the appliance supply line. Installation, Operation and Maintenance Manual / ALLEGRA II-IOM-1901-E • 4 •... -
Page 6: Fan Coil Installation
(Pic. 10). Pivot the cabinet on its base until it is aligned with the wall. Raise the fl aps covering the control panel and water connections and tighten the two fi xing screws (Pic.5). Installation, Operation and Maintenance Manual / ALLEGRA II-IOM-1901-E • 5 •... -
Page 7: Water Connections
The manufacturer cannot be held liable for any damage caused by dripping in the absence of a solenoid valve or of periodic maintenance of the drainage system. 3 cm/m Installation, Operation and Maintenance Manual / ALLEGRA II-IOM-1901-E • 6 •... -
Page 8: Electrical Connenction
(NTC) this sensor will be powered by mains voltage (230Vac/1/50 Hz) and is therefore provided with double insulation. CAUTION: FAILURE TO COMPLY WITH THE INDICATED CONNECTIONS MAY CAUSE MOTOR BURNOUT! Installation, Operation and Maintenance Manual / ALLEGRA II-IOM-1901-E • 7 •... - Page 9 Trafo (not present in all the models) ON/OFF Heating/cooling valve (2-pipe system) YV1 on/off cooling valve Heating/cooling valve YV1 + YV2 YV2 on/off heating valve(4-pipe system) (4-pipe system) Connection board Installation, Operation and Maintenance Manual / ALLEGRA II-IOM-1901-E • 8 •...
- Page 10 Electrical heater Safety thermostat with automatic reset Safety thermostat with manual reset Trafo (not present in all the models) ON/OFF Heating/cooling valve (2-pipe system) XA1 - XA2 Connection board Installation, Operation and Maintenance Manual / ALLEGRA II-IOM-1901-E • 9 •...
- Page 11 ELECTRICAL DRAWING 3-SPEED MOTOR (CONNECTION BOARD) + 230 VAC ON/OFF VALVE (2-PIPE SYSTEM) + LXTFZ01M CONTROL WHITE Installation, Operation and Maintenance Manual / ALLEGRA II-IOM-1901-E • 10 •...
- Page 12 ELECTRICAL DRAWING 3-SPEED MOTOR (CONNECTION BOARD) + VALVES AND ON/OFF 23V HEATER OPTION + LXTFZ01M CONTROL Installation, Operation and Maintenance Manual / ALLEGRA II-IOM-1901-E • 11 •...
- Page 13 ELECTRICAL DRAWING 3-SPEED MOTOR + REGULATION WITH INFRARED REMOTE CONTROL EC fault Alarm switch Installation, Operation and Maintenance Manual / ALLEGRA II-IOM-1901-E • 12 •...
- Page 14 Motor electronic control Motor ON/OFF Heating/cooling valve (2-pipe system) YV1 on/off cooling valve Heating/cooling valve YV1 + YV2 YV1 + YV2 YV2 on/off heating valve(4-pipe system) (4-pipe system) Connection board Installation, Operation and Maintenance Manual / ALLEGRA II-IOM-1901-E • 13 •...
- Page 15 Motor Safety thermostat with automatic reset Safety thermostat with manual reset Black Trafo (not present in all the models) White XA1 - XA2 Connection board Relay type Finder 22.32 Installation, Operation and Maintenance Manual / ALLEGRA II-IOM-1901-E • 14 •...
- Page 16 EC MOTOR (CONNECTION BOARD) + 230 VAC ON/OFF VALVE (2-PIPE SYSTEM) + LXTFZ01M CONTROL Installation, Operation and Maintenance Manual / ALLEGRA II-IOM-1901-E • 15 •...
- Page 17 EC MOTOR (CONNECTION BOARD) + 230 VAC ON/OFF VALVES (4-PIPE SYSTEM) + LXTFZ01M CONTROL Installation, Operation and Maintenance Manual / ALLEGRA II-IOM-1901-E • 16 •...
- Page 18 EC MOTOR (CONNECTION BOARD) + VALVES AND ON/OFF 23V HEATER OPTION + LXTFZ01M CONTROL Installation, Operation and Maintenance Manual / ALLEGRA II-IOM-1901-E • 17 •...
- Page 19 EC MOTOR + REGULATION WITH INFRARED REMOTE CONTROL EC fault Alarm switch Installation, Operation and Maintenance Manual / ALLEGRA II-IOM-1901-E • 18 •...
-
Page 20: Changing The Motor Speed Of Rotation
G) Position the coil, turning it of 180°, so that the fi ttings are in line with the holes left by the knockouts. Fix the coil using the previously removed screws. 180° Installation, Operation and Maintenance Manual / ALLEGRA II-IOM-1901-E • 19 •... -
Page 21: Operating Limits
- Units can’t be installed in areas with anomalous heat and humidity conditions; - Units can’t be installed outdoors; - Units can’t be installed in explosive environments; - Units can’t be installed in a corrosive atmosphere. Installation, Operation and Maintenance Manual / ALLEGRA II-IOM-1901-E • 20 •... -
Page 22: Using The Appliance
Turn the knob to select the desired temperature thermostat, refer to the thermostat instructions for use. Installation, Operation and Maintenance Manual / ALLEGRA II-IOM-1901-E • 21 •... -
Page 23: Cleaning And Maintenance
fi tted with a soft dusting tool or use a separate brush. Delicately clean the louvres and the controls by removing dust from the cracks and corners. Under no circumstances use water. Installation, Operation and Maintenance Manual / ALLEGRA II-IOM-1901-E • 22 •... -
Page 24: What To Do If
Contact a fi rm specialised in differentiated waste disposal; it is the only way to be certain of correct recycling and thereby contribute to protection of the environment. Installation, Operation and Maintenance Manual / ALLEGRA II-IOM-1901-E • 23 •... - Page 25 Installation, Operation and Maintenance Manual / ALLEGRA II-IOM-1901-E • 24 •...
- Page 26 LENNOX DISTRIBUTION +33 4 72 23 20 20 Due to LENNOX EMEA ongoing commitment to quality, the specifi cations, ratings and dimensions are subject to change without notice and without incurring liability. Improper installation, adjustment, alteration, service or maintenance can cause property damage or personal injury.
