- Page 1 SU 120417...
- Page 2 Kiturami Firewood Boiler User's Manual •Common KF - 35B Make sure to keep the user's manual in the vicinity of the boiler, after reading it. The user’s manual describes the features of the product and the safety requirements. Please read and make sure you fully understand the user’s manual...
- Page 3 KITURAMI boiler Thank you for purchasing a . Please carefully read and make sure you fully understand the user’s manual to ensure correct operation and maintenance of the product, and keep the manual safe. If the boiler operates abnormally or you have any questions about its functions, etc., please refer to the manual.

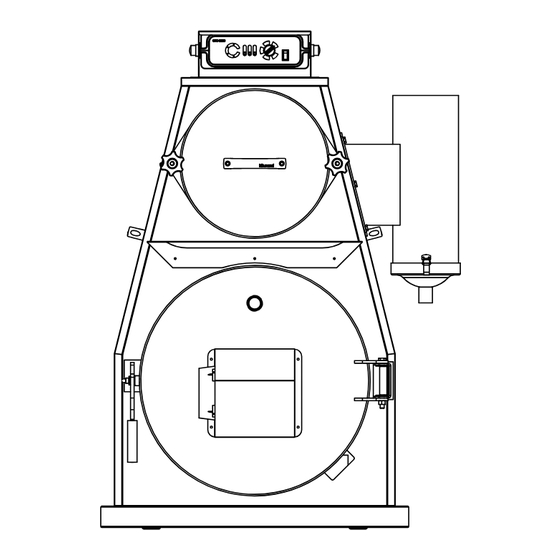

- Page 4 Blower cover Firewood feeding door handle <Right> Hot water outlet Flue Heating water outlet Controller Hot water inlet cover Back of flue cleaning port Heating water collection Included accessories: The KF-35B User s Manual, cleaning tools, and corrugated drain pipe.
-
Page 5: How To Operate
How to Operate Name of Each Component (CTC-3550N) Season selection Exhaust function button Boiler water lamp You can set the temperature This lamp is turned heating water Water temperature on when the boiler temperature. You in the boiler. exhaust fan works. can set the preferred temperature. - Page 6 How to Operate Name of Each Part of the Room Thermostat (CTR-6070) Hot Water Operation Temp. POWER ROOM BATH Component Function. Remarks Name • I n case of am abnormality in the boiler, Current • Display of current temperature in the LED flashes.
- Page 7 How to Operate ·ON/OFF Set point of fan and circulation pump Circulation pump Heating water temp. Setting Summer (45) Autumn (55) Spring (65) Early winter (75) Winter (85) How to Ignite the Firewood 1) Ignition throgh using tinder Put the "Tinder" in the central part of the firebox, add the firewood, and light the Beongaetan using papers, etc.
- Page 8 Precautions Precautions Use the power outlet exclusive for the boiler, and be cautious for leakage. The operating power is AC 230 and 50 Hz. Operate the boiler only after checking the voltage. DANGER D o not touch the power cable or operate the boiler with wet hands to avoid electric shock.
- Page 9 Precautions Cautions in using wood fuel ※ Our product DO NOT gurantee any flaw occurred by using material EXCEPT wooden fuel like oval briquets, brown coals, etc,. Use the designated fuel only. Firewood can only be used in this boiler. Use of other fuel (brown coals, briquettes, or household waste may reduce the lifetime of the product WARNING and should be prohibited.
-
Page 10: How To Clean
How to clean How to clean the firewood combustion chamber Especially, if firewood is used, the boiler should be cleaned at least once a week in order to save on fuel costs. push out the ash using an ash cleaning tool Cleaning upper part Cleaning lower part ※... -
Page 11: How To Install
How to install Use the outlet exclusion for the boiler. Otherwise, fire may breakout. Prevent the stovepipe from contact with combustible materials. Otherwise, fire may breakout. Finish the contact points with an incombustible insulation material when installing the flue to prevent fire. Install the boiler in a boiler room, if any. - Page 12 How to install Installation of flue ▶ Install the flue 3m above the boiler along with a T unit at the end of the flue in order to prevent FLUE incomplete combustion caused by damaging winds. Drainage device Install the device with inclination of 5 degrees Cautions for Installation Install the flue in such a way that the flue is free from the...
- Page 13 How to install Standard Piping Diagram <Upward Piping System> Water supply pipe Nitrogen tank (Above 20L) Air vent Ø150 Pressure gauge Hot water outlet Heating exit Circulation pump <Back side of the product> Return water distribution Water <Back side of supply Hotwater inlet the product>...
- Page 14 How to install Requirements when piping WARNING ① Please install the expansion tank 1m higher than from the top of the boiler ex. 1 ex. 2 EXPANSION EXPANSION TANK TANK CIRCULATION CIRCULATION PUMP PUMP BOILER BOILER ② DO NOT use valve at the fall pipe or expansion tank pipe ex.
- Page 15 Test Operation and How to Install The Room Thermometer How to Connect the Room Thermometer 1) Install the attachment plate at 1.5M from the 3) Attach the room thermometer (CTR-6070) by bottom having small thermal change. pushing against the wall so that the hanging part matches with the attachment loop and by pulling it downward.
-
Page 16: Boiler Specifications
· C onstant temperature function for firewood ·Freeze-rupture prevention function (Blower and circulation pump control) ※Temperature of exhaust gas : ≥ 300℃ ※The outer design and specifications are subject to change for improving the performance of the product. Product drawings ■ KF-35B (Front/Side) -
Page 17: Troubleshooting
Troubleshooting ※ If any abnormality if found during the operation of the boiler, do not take measures at your own discretion. Refer to the below-stated matters. If any disorder is generated in the boiler, the check lamp on the room thermostat flashes and the corresponding lamp is turned on to meet the state on the controller. - Page 18 Troubleshooting Failure Troubleshooting The water is insufficient in the boiler. Turn the tap on in order to check for a "95" flashes and the suspension in the water supply. if the water supply is suspended, take measures for a proper supply of water. controller's "Low Level I f release is not continuously done and makeup water is not supplied, Lamp"...
- Page 19 MEMO...
- Page 20 MEMO...
