Summary of Contents for Kiturami TURBO-21

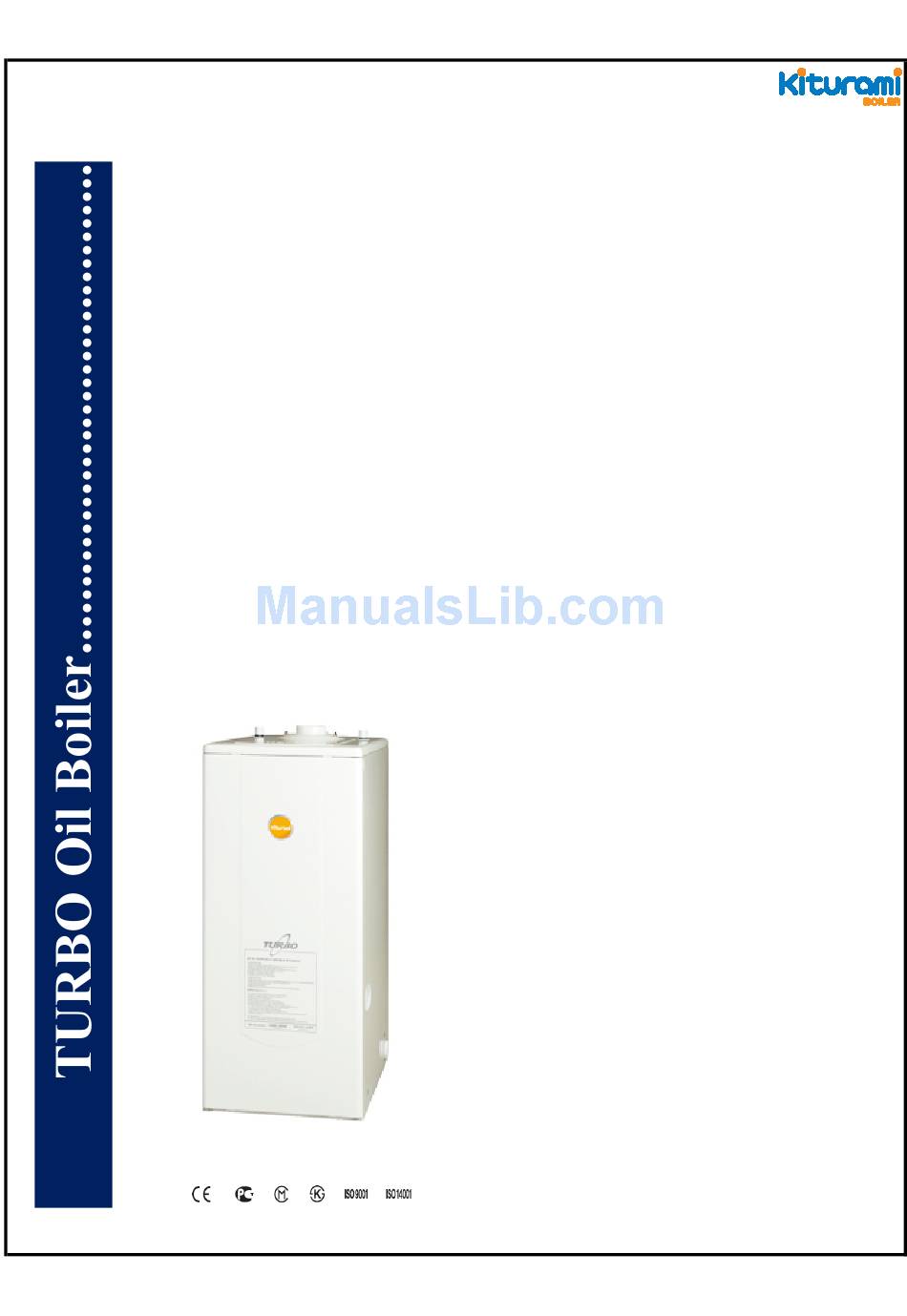

- Page 1 Technical information and Installation Servicing Instructions Model * TURBO - 17 (19.8 kW) * TURBO - 21 (24.4 kW) * TURBO - 25 (29.1 kW) * TURBO - 30 (34.9 kW) ┃┃┃┃┃ 1페이지...
-
Page 2: Table Of Contents
CONTENTS 1) overall view ************************************** 1 -1. General information 2) Product description ************************************** 2 - 1. Boiler Specification ************************************** 2 - 2. Product dimensions ************************************** 2 - 3. Burner Specification 3) Installation ************************************** 3 - 1. Standard chimney installation ************************************** 3 - 2. -
Page 3: General Information
4. Turbo Cyclone Burner (Korea Patent No.101040) Kiturami Turbo Cyclone Burner burns combusted air secondarily with a special metal plate heated up to 800℃ like a turbo engine of an automobile. It's different from general burner which burns injected fuel from nozzle in the air. It's eco-friendly and acquires NT(Net Technology). -
Page 4: Boiler Specification
TOTAL CONTROL Heat exchanger BURNER Ignition transformer CH RETURN OIL FILTER Bottom COVER MODEL TURBO-17 TURBO-21 TURBO-25 TURBO-30 POWER SOURCE 220 V/50Hz DIMENSION (Wx Dx H) 325 x 602 x 815 365 x 650 x 890 WEIGHT (kg) INSTALLATION TYPE... -
Page 5: Product Dimensions
2 - 2 Product dimensions ▶ TURBO - 17 , 21 , 25 , 30 Low water sensor Temperature sensor MAIN Controller Ignition Burner transformer electronic Air damper pump Photo sensor Peep hole A : Flue Connector B: CH Supply C: CH Return D: Drain E : DHW inlet... -
Page 6: Burner Specification
Cyclone stabilizer 입체 형 소용돌이 스테빌라이저 ※ Features of Turbo Cyclone Burner Kiturami Turbo Cyclone Burner burns combusted air secondarily with a special metal plate heated up to 800℃ like a turbo engine of an automobile, considerably reducing fuel costs and exhausts. - Page 7 * Dimension of Electronic Pump type Burner * Dimension of Gear Pump type Burner Gear Pump type Electronic Pump type Gear Pump type Gear Pump type Gear Pump type 7페이지...
- Page 8 * Dimension of Electronic Pump type Burner Flange MODEL TURBO-17 143.5 TURBO-21 143.5 * Dimension of Gear Pump type Burner Flange MODEL TURBO-21 143.5 TURBO-25 143.5 TURBO-35 143.5 8페이지...
-
Page 9: Standard Chimney Installation
3. Installation 3-1 Standard chimney installation ▶ Installing flue in case of no existing flue 1. As shown in Figure 1-1, install stainless flue outside and then install air intake vent and exhaust gas vent for boiler room. under 15cm under 2. - Page 10 ▶ Installing the Boiler chimney 1. Do not install the boiler in tighty shut area without ventilation or in bathroom with a lot of moisture. It may cause the critical lack of oxygen or imperfect combustion. 2. Install the boiler horizontally and solidly on the nonflammables such as NON-FLAMMABLES concrete or bricks which can withstand the weight.
-
Page 11: Standard Heating & Hot Water Installation
3 - 2 Standard heating & hot water installation Water tank Over flow Emission pipe is more than 20A expansion safety valve is more than 3.5kgf/㎠ tank Install the safety and Auto air valve. min 1.5m CH Supply Herder * Heating coil CH Return * radiator Outlet... - Page 12 3-2-1 Installing Downward piping type expansion tank Over flow chimney Cool water inlet pipe DHW inlet DHW outlet Over flow pipe Boiler Heating return Heating supply circulation pump Heating header 3-2-2 Installing Downward piping type (Diagram of Total Piping) expansion tank Over flow DHW inlet DHW outlet...
- Page 13 3-2-3 Installing Upward piping type Auto Air Heating supply vent Heating return chimney DHW outlet DHW inlet DHW inlet control valve VALVE Boiler circulation pump Over flow pipe Pipe preventing the natural circulation 3-2-4 Installing Upward piping type (Diagram of Total Piping) (2 nd) Heating Coil expansion tank 급수파이프...
-
Page 14: Standard Gas Connection Installation
3 - 3 Standard oil pipe installation Oil supply pipe -. When installing the Oil tank higher than Burner. (Upward type) ① KITURAMI burner is equipped the special filter, which protects gear pump and motor. When install the Oil tank higher than Burner, follow below instructions. -
Page 15: Burner Connection Spec
3 - 4 Oil Burner connection spec Part name ① Electronic Pump ② Oil Filter ③ ⑤ ⑦ ⑨ Hose Band ④⑧ Rubber Oil Hose ⑩ Oil Tank connecting Nipple ⑥ Oil Hose extending Nipple ▶ How to connect the Oil pipe (only gear pump equipped boiler) GEAR PUMP GEAR PUMP Water-gas... -
Page 16: Connecting Electricity
3 - 5 Connecting Electricity 3-5-1 Connecting Wires ※ This appliance is designed on AC 220V ~ 230V/ 50Hz. This work of connecting wires is required by a qualified electrician. 1. Make sure that the earth connection is required for safety uses from any electric leakage or short-circuit. 2. -
Page 17: Gear Pump
4. MAIN PART SPEC 4 - 1 GEAR PUMP ① Pressure of pump -. 10 bar : Adjusted pressure out of factory -. 12 bar : Change the pressure when the burner ignites at a low temperature. ② Structure of pump (based on DANFOSS pump) Adjusting Pressure Cylinder Port Inlet (Φ... - Page 18 ④ How to adjust the Air damper (manual) 1. After loosening screw A, adjust B by hand. 2. After adjusting B to the desired number , fasten the screw A. 3. The number D is bigger, the air flow is more. ※...
-
Page 19: Ignition Transformer
4 - 3 IGNITION TRANSFORMER ① SPEC (KI-G50) ITEM VALUE ITEM VALUE Power Supply AC 220V ±15%(50Hz) 20 W Power Consumption Current 220 mA (Max) Output Current 16.5kV (0 ∽ +10%) 33 mA (Min) Output Frequency 15kHz (Min) Consumption Allowable Temp. (-10℃... -
Page 20: Ignition Bar
ARC Resistance 196 sec Dielectric Constant ▶ Name and Dimension DIMENSION (mm) NAME TURBO-17 Ignition transformer TURBO-21 Connection nipple Ignition rod Connection hole Electrode rod Epoxy ▶ How to adjust the location of ignition rod Ignition bar 1. Ignition rod carries 16.5k voltage. Before adjusting, plug off the power cord. -
Page 21: Adjustment And Gas Conversion
4 - 6 Adjustment and Oil Conversion The following adjustment and conversion operations must be carried out by qualified personnel. KITURAMI Limited accepts no liability for damage to property or personal injury resulting from tampering with the boiler by unauthorized persons. -
Page 22: Burner Part Exploded View
5. Burner Direction for assembly 5 - 1 Burner Part exploded view 1). CAPACITY : TURBO - 17K , 21K NAME NAME NAME IGNITION TRANSFORMER OIL SUPPLY PIPE ELECTRONIC PUMP MOTOR (BURNER) MOTOR COVER PHOTO SENSOR C-RING MICA PEEP HOLE NOZZLE HOLDER Nozzle STABILIZER... - Page 23 1). CAPACITY : TURBO - 25K , 30K NAME NAME NAME DAMPER (AUTO/MANUAL) FAN CASE BODY IGNITION BAR STABILIZER BURNER TUBE NOZZLE NOZZLE ADAPTOR GUIDE GEAR , ELECTRONIC PUMP MOTOR BRACKET (FLANGE) BRACKET (PHOTO SENSOR) PHOTO SENSOR IGNITION TRANSFORMER 9PIN CONNECTOR BRACKET (TRANSFORMER) 23페이지...
-
Page 24: Check List Before Switching-On
6. TEST WORKING 6 - 1 Check list before switching-on 1). Before switching-on, please check the followings after finishing the installation of boiler, flue, pipes, and electricity. □ ① Is the boiler connected to the boiler-dedicated electrical outlet? □ ② Are there some combustible materials around the flue? □... -
Page 25: Boiler Part Exploded View
7. Direction for assembly 7 - 1 Boiler Part exploded view 25페이지... -
Page 26: Part Name
7 - 2 Part name Model Part Name (English) Korean ERP Code Top cover 상부 커버 케이스 (옆면) Case (side) 메인 콘트롤러 Main controller 하부 커버 Bottom cover 전면 도어 Front door 열교환기 Heat exchanger 케스타블 castable Gasket (burner) 가스켓 (버너) Temperature sensor 온도... - Page 27 8. MAINTENANCE GUIDE 8 - 1. Assembly Instructions for Burner Tool 1. Plug off the power cord. 2. Close the Oil valve connected with the oil tank. 3. Disassemble screws fixed on front panel and open the panel. 1. Separate the connector plug from burner. 2.
-
Page 28: Assembly Of Temp. And Overheating Sensors
8 - 2. Assembly Instructions for the Temperature and Overheating Sensors Tool 1. Plug off the power cord. 2. Close the oil valve connected with the oil tank. 3. Close the valves connected with the heating and hot water pipes. 4. -
Page 29: How To Clean Heat Exchanger's Exhaust Tube
8 - 3. How to clean Heat exchanger's Exhaust tube Tool 1. Plug off the power cord. 2. Close the oil valve connected with the oil tank. 3. Loosen screws fixed on front panel and open the panel. 4. Loosen screws fixed on the top of Heat exchanger and separate the panel. -
Page 30: Main Controller Part Mane
9. Functions of the controller 9 - 1 Main Controller part name Model : CTX - 1500 2. Air pressure sensing ON/OFF switch 1. TEMPERATURE 3. Burner lamp 4. circulation 5. Power lamp 6. Power switch pump ▶ Parts Description Displays current water temperature in the Heat exchanger of boiler. -
Page 31: Room Control Part Mane (Ctr-5700 Plus)
9 - 2 Room Control panel (CTR-5700 plus) ◎ LEGEND 1. LED panel 2. BOILER HEATING OPERATING CONDITION SELECT BUTTON (ROOM TEMPERATURE HEATING, TIMER HEATING, OUT GOING) 3. DOMESTIC HOT WATER, ONLY 4. GREEN INDICATOR - POWER SUPPLY 5. ADJUSTMENT NUMERIC INCREASING BUTTON EACH UNCTION 6. -
Page 32: Room Control Led Panel
9 - 3 Room control LED panel ◎ Display Features 1. When the boiler operates with room temperature heating mode, this symbol display 2. When the boiler operates with room temperature heating mode, this symbol display. 3. Current’s room temperature display in accordance with each heating modes 4. - Page 33 10. Troubleshooting guide (error code) 10 - 1 Finding fault Error code The error codes display when errors occur The last ten errors are saved in the appliance error memory → Press the “Timer” button for 5 seconds → Automatically the last errors history display 2 times by step on LCD panel. You can exit the error memory display as follow;...
-
Page 34: Technical Data Table
11. Technical Data Table M odel TURBO - 17 TURBO - 21 TURBO - 25 TURBO - 30 Tec hni c al Spec i f i c at i on Heat i ng O ut put ( M ax- M i n) 19. -
Page 35: Memo
12. Memo 35페이지... -
Page 36: Warranty
13. Warranty 36페이지...
