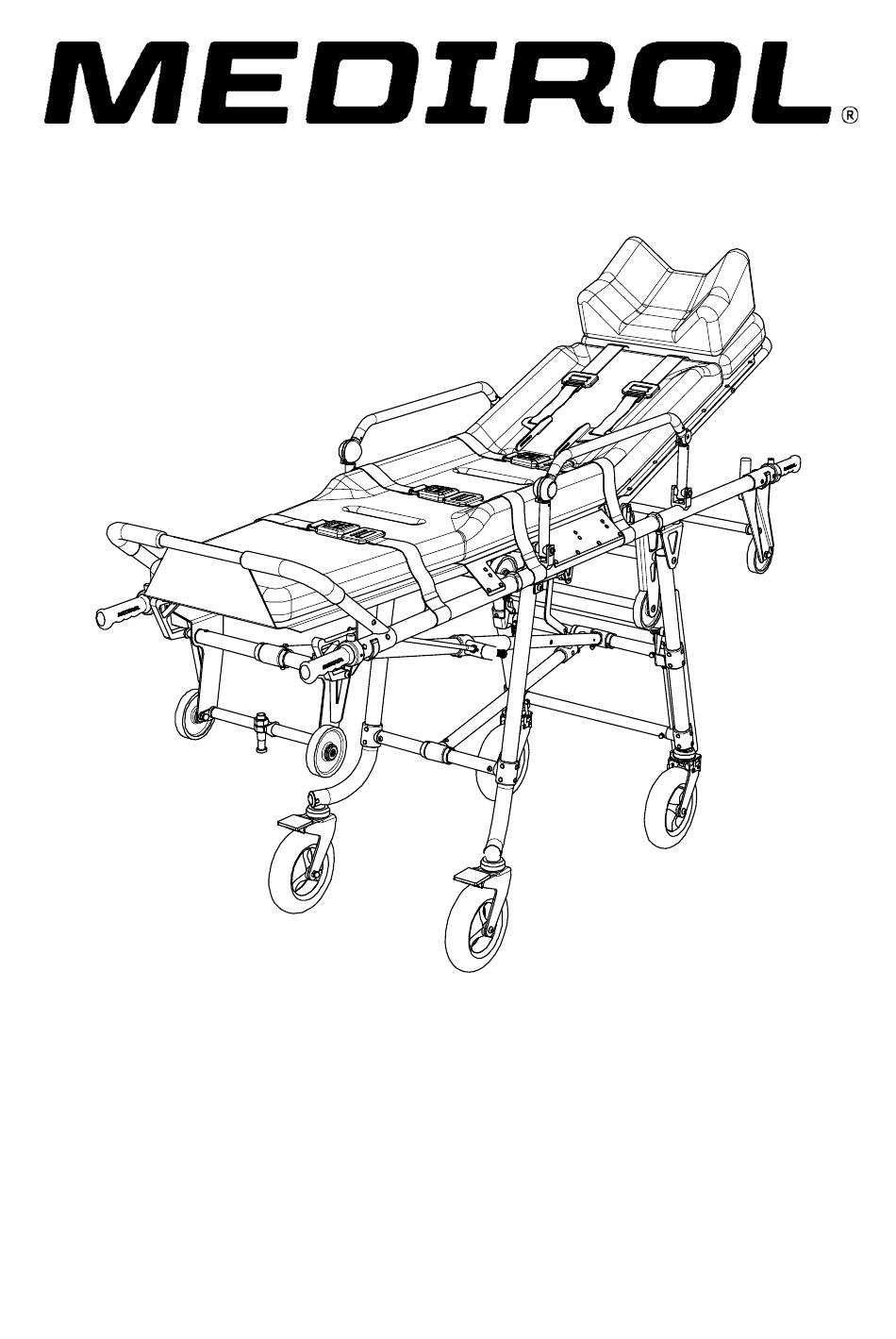

  • Page 1 Monoblock CONTERO M126 User Manual...

  • Page 2: Table Of Contents

    Content Content ..........................2 Introduction ..........................3 Safety Information ........................4 Guarantee Certificate ....................... 5 Product Description ......................... 6 Standard Features ........................ 6 Technical Specification ......................7 Height positions ........................8 Operating Instructions ......................10 Positioning of monoblock .....................12 Positioning of backrest ......................30 Extendable handles for transport the patient .................31 Fold-down side rails ......................32 Front rotating wheels ......................33...

  • Page 3: Introduction

    Introduction Thank you for purchasing a monoblock CONTERO M126. To take full advantage of all features of the product, carefully read all instructions and put it onto available place in order to it is accessible for all potential users. Attention This manual contains general instructions for use, operation and maintenance of this product.

  • Page 4: Safety Information

    COMPATIBILITY WITH FASTENING SYSTEM Integral part of the monoblock CONTERO is fastening system ROLFIX, fixing the ambulance cot in ambulance car. MEDIROL Company Ltd. strongly recommended to fasten the monoblock only using fastening system Medirol® ROLFIX F102, which with the monoblock Medirol®CONTERO M126 complies with European standard EN 1789 in section 4.5.9.

  • Page 5: Guarantee Certificate

    Guarantee Certificate The producer MEDIROL Ltd. provides a guarantee for each product against defects in materials and workmanship: With two years guarantee-  monoblock frame and all its components  pillow  mattress  restraint system  wheels This warranty does not cover: ...

  • Page 6: Product Description

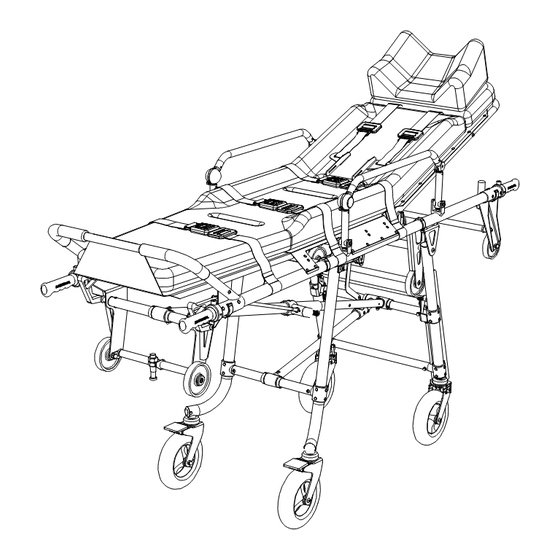

    Product Description The monoblock Medirol® CONTERO M126 is equipment designed for transport of recumbent patient on paved surface. Standard Features  High-strength aluminum construction  Ergonomic design  Fixed patient section allowing cardiac massage  One-hand release, fold-down side rails ...

  • Page 7: Technical Specification

    Recommended loading height 57 cm Recommended fastener system Medirol® ROLFIX F102 Specifications are rounded to the nearest whole number. *) The height is measured from the floor to the loading area of the patient without mattress. Overrun height is measured from the ground to the bottom of the front wheels.

  • Page 8: Height Positions

    Height positions Position: for the movement or handling of monoblock in ambulance Position 2: Trendelenburg...
  • Page 9 Position 3: position for crossing to intermediate position Position 4: intermediate position for loading / unloading patient Position 5: folded position in an ambulance or for loading patient...

  • Page 10: Operating Instructions

    Operating Instructions...
  • Page 11 Positioning of monoblock…………………………………………………… Positioning to folded position…………………………….…………… Positioning to intermediate position……………………..…………… Positioning to Trendelenburg position ………………….………….. Loading to ambulance car..…………..……………………………… Unloading from ambulance car ………………….…………………… Front rotating wheels……………………………..…………………………. Restraint system…………………………………………...…………...……. Positioning of backrest………………………………………….…………… Extendable handles for transport the patient…..………………..…..…… Fold-down side rails…..………………………………………..…………… Brakes………………………………………………………………………..

  • Page 12: Positioning Of Monoblock

    Positioning of monoblock Principles of safe positioning When positioning grab monoblock for extendable handles. Always make sure that the front wheels are fixed. Positioning to the folded position no. 5 must always be made in a two-person operation. Positioning in other positions can be performed by one person, but we recommend the assistance of another person.

  • Page 13: Positioning To Folded Position

    Positioning to folded position (position no. 5) When positioning the monoblock to the folded position in a two-person operation grab monoblock for extendable handles. Positioning to the folded position monoblock must always carry more than one person. Never positioning monoblock to the folded position without assistance.
  • Page 14 Green First red lever positioning unlock the front foot and hold it in the unlocked position. Then the green lever unlocks the front legs and rear legs and holds it in the unlocked position.
  • Page 15 Positioning ensures operation at the real part of monoblock by moving down Once the legs begin to fold, operation continues moving down. Release both of two lever during the positioning. Carefully place the monoblock to the ground until the folded legs are not back secured.
  • Page 16 Green To return to the original position no. 1 unlock foot by green lever.
  • Page 17 Hold monoblock for extendable handles and start to lift it. Both operators are lifting monoblock while the legs turn back to the original position no. 1 During the positioning release the green lever. Once you pick up the monoblock in No. 1, make sure that both legs are secured.

  • Page 18: Positioning To Intermediate Position

    Positioning to intermediate position (position no. 4) Yellow First, brake the rear wheels in the basic position of the sliding forward. Then unlock the rear legs with help of yellow lever and position the rear part of monoblock into position no. 3. During positioning release the yellow lever.
  • Page 19 Green Unlock the front legs with the green lever and by lifting the rear part of monoblock position into the position no. 4. During the positioning release the green lever. Make sure that both legs are secured.
  • Page 20 Green To return to the position no. 1, first press the green lever.
  • Page 21 Position the rear part of monoblock down to position no. 3. Release green lever during positioning. Move rear part of monoblock to position no. 1. Make sure that the rear legs are secured.

  • Page 22: Positioning To Trendelenburg Position

    Positioning to Trendelenburg position (position no. 2) Green To set monoblock to Trendelenburg position unlock the front legs with green lever and then lift the rear part of monoblock to position no. 2. During positioning release the green lever. Make sure both legs are secured.
  • Page 23 Green To return to the no. 1 position, unlock the rear legs with a green lever and then move down the rear part of monoblock until the monoblock is fixed into position no. 1. During positioning release the green lever. Make sure both legs are secured.

  • Page 24: Loading To Ambulance Car

    Loading to ambulance car When loading into ambulance car monoblock must always be only in the maximum high position no. 1. In another position can not be loading perform and the monoblock may be damaged. Move the front wheels to the platform with fastener in an ambulance car. Before unlocking the legs, make sure that the front legs touch the platform of ambulance car.
  • Page 25 Green First with red lever unlock the fuse of positioning front legs and hold it in the unlocked position. Then with the green lever unlock the front and rear legs and hold it in the unlocked position.
  • Page 26 Lift the rear part of monoblock and push monoblock into the ambulance car. During this operation release both control levers. Secure monoblock in an ambulance to the fastener. With proper securing will eject the control button of handle.

  • Page 27: Unloading From Ambulance Car

    Unloading from ambulance car First, unlock the monoblock from fastener in an ambulance by pressing unlocking button. Grab the monoblock for rear extendable handles and drive out from fastener with a slight shift forward.
  • Page 28 Green Before unloading of monoblock from ambulance unlock the legs with green lever.
  • Page 29 During unloading of monoblock from ambulance and folding legs release the green control lever. Before leaving with the front wheels the loading platform of ambulance car, make sure that all the legs are properly secured.

  • Page 30: Positioning Of Backrest

    Positioning of backrest Headrest can be adjusted to any angle in the range 0 ° -75 ° by gas spring. To change the position headrest press the control lever positioning and adjust the headrest to the desired position. Then release the control lever to secure.

  • Page 31: Extendable Handles For Transport The Patient

    Extendable handles for transport the patient Extendable handles serve for carrying and holding monoblock. To set handles press red button and move with him to desired position until the handle itself secures. 3 position of ejection...

  • Page 32: Fold-Down Side Rails

    Fold-down side rails Side handles serves to prevent fall of persons / patients from monoblock. To fold the side handles press the red button, move the handle to the side, until it folds. Return the handle to its original position by reverse move until itself locks.

  • Page 33: Front Rotating Wheels

    Front rotating wheels The front rotating wheels used for better handling in narrower spaces. If the situation does not require an unlocked front rotating wheels, keep them always assured. Lock Unlock For ensuring set the lever to the To unlock the front wheels set locked position and rotate the the lever to the unlocked wheel until it locks themselves.

  • Page 34: Restraint System

    Restraint system Manipulation Opening To switch off the belt press the red button on the buckle and pull clip. Closing To close the belt put the clip into the buckle. Method of attachment...
  • Page 35 Attachments points...

  • Page 36: Brakes

    Brakes Brakes are used to ensure monoblock against movement. Unlock position Lock position...

  • Page 37: Maintenance

     By use frequency over 200x times a month maintain inspection every month Revision MEDIROL recommend doing revision regularly. First revision inspection performs after 2 years and then regularly ones a year. Cleaning  wash all parts with warm water ...

  • Page 38: Inspectional Note

    Inspectional Note Serial number: Name: Type number: Date: Monoblock  All mechanical and screw joints are solid  All welded joints are unbroken, without craks  No part of framework is not dismounted  Overrunning wheels easily rotating, in wheel axis are not any impurities ...

  • Page 39: Belt System

    Belt system  Fully functional locking buckles and reduction of length buckles  Any breaks on belt surface by graze, tear, rip up  Any breaks of sawn belt joints Do not use the product once the fault is detected and contact authorized service partner or producer.

  • Page 40: Training Note

    Training Note Date Name Type of training...

  • Page 41: Note From Inspection

    Note from inspection Date Performed maintenance Name...
  • Page 42 Customer Care. If you have other questions about the product, its operation or maintenance, ask your dealer. Our dealers have extensive experience with the products MEDIROL. They can help you with your individual questions and find the right solution.
