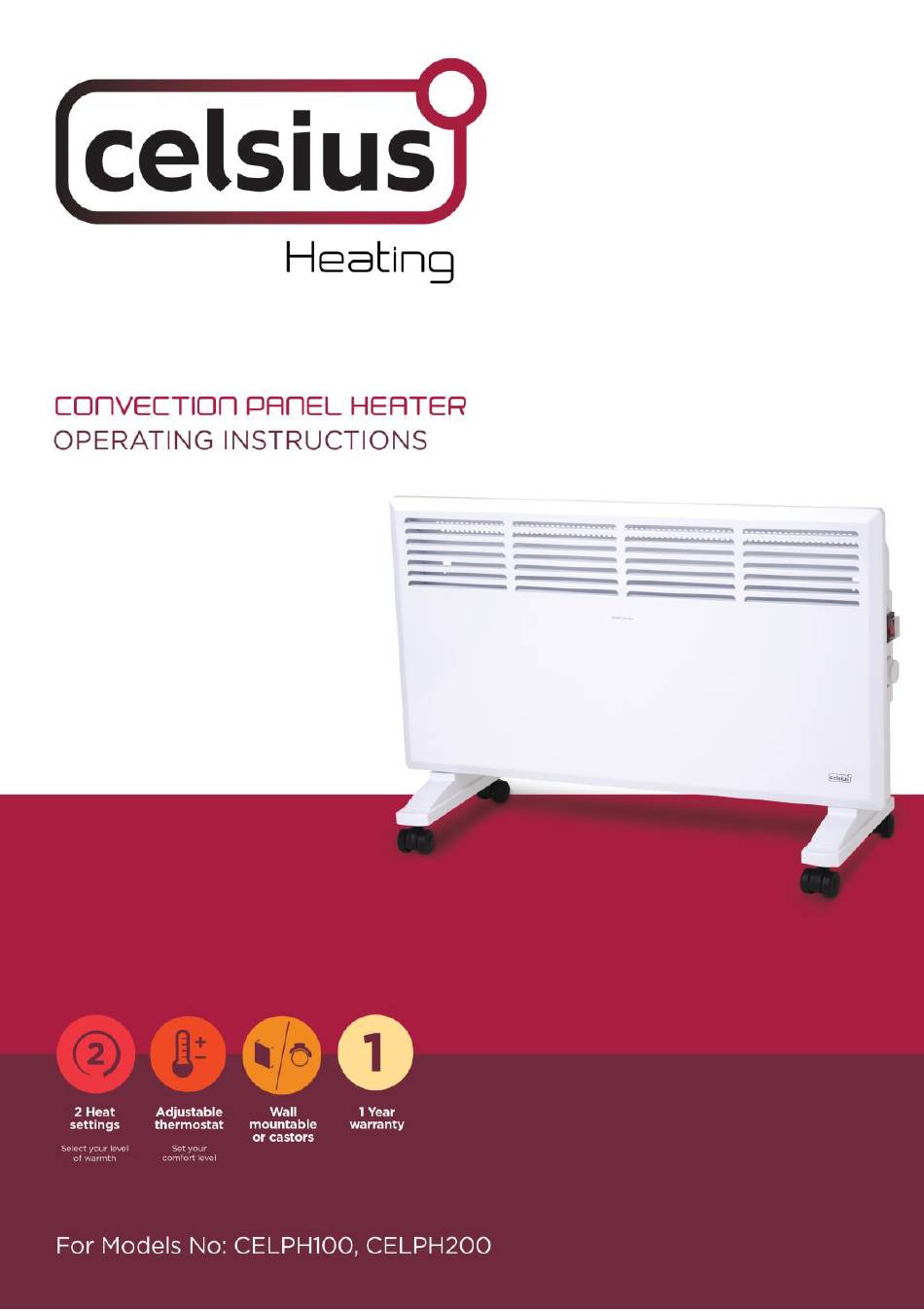

Summary of Contents for Celsius CELPH100
- Page 2 General Care and Safety Guide YOUR SAFETY IS IMPORTANT TO US. PLEASE ENSURE YOU TAKE NOTE OF THE INSTRUCTIONS AND WARNINGS OUTLINED IN THIS MANUAL. CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
- Page 3 General Care and Safety Guide • Never use the appliance to dry clothes. • Always unplug appliance when not in use. • Do not connect the appliance to mains supply until completely assembled and adjusted. • Ensure hands are dry before handling the plug or main unit. •...
- Page 4 Components Main Body x1 Main Body x1 Model CELPH100 Model CELPH200 Castor Plate and Castors x 2 Screw Pack Wall Top Mounting Brackets Wall Bottom Mounting Brackets...
- Page 5 Assembly Before using this appliance, it must either be wall mounted or have the castor plates and castors fitted. The screw pack to attach the feet to your appliance will be taped to either one of the feet for your appliance, or taped to the plug.
- Page 6 INSTALLATION FOR WALL MOUNTING Position the panel heater within one metre of a wall socket. Do not mount in front of or below the wall socket. Ensure the heater is mounted at least 200mm above the floor and at least 400mm from anything to the side and 600mm from anything above the heater.
- Page 7 Measure the distance between the mounting slots on the back of the heater. Now mount one of the wall brackets to the wall so that it is in the right location to hold the heater. Next mount the other bracket to the wall in the correct position to locate the other slot in heater.
-
Page 8: Operating Your Heater
Operating Your Heater Always choose a safe location for the appliance, keeping in mind the safety precautions outlined. Ensure all packaging has been removed from the unit before use. This appliance requires no installation, it should be used solely as a portable appliance. WARNING: In order to avoid overheating or fire, do not cover the heater WARNING:... -
Page 9: Thermostatic Control
Operating Your Heater HEATER CONTROL SWITCH Check that the heat control switch is set to Off position before plugging the heater into the mains supply. For greater economy, use the High Heat setting initially and then switch to the Low Heat setting. -
Page 10: Technical Specification
220-240VAC 50Hz 220-240VAC 50Hz Wattage: 1000W IPX4 2000W IPX4 SUPPORT AND TECHNICAL ADVICE Celsius – New Zealand Celsius – Australia Monday – Friday 8am-5pm Monday – Friday 8am-5pm Phone +64 (0)9 917 4000 Phone +61 (0)3 9365 5100 Phone 0800 232 633 Phone 1300 465 324 info@celsius.co.nz... -
Page 11: One Year Warranty
In non-domestic use Celsius limits the voluntary warranty to three months. Celsius undertake to repair or replace this product at no charge if found to be defective due to a manufacturing fault during the warranty period.
