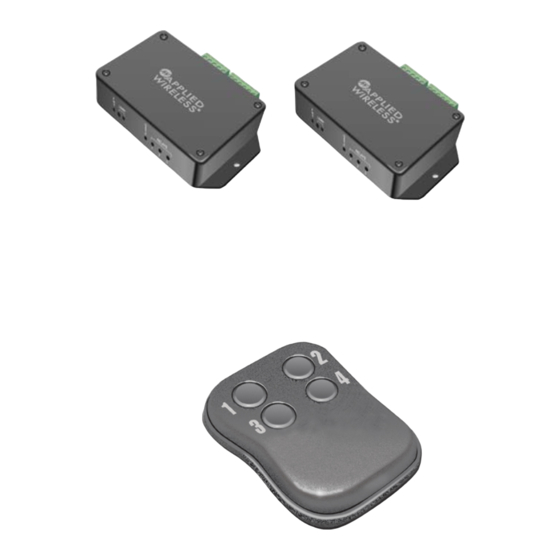

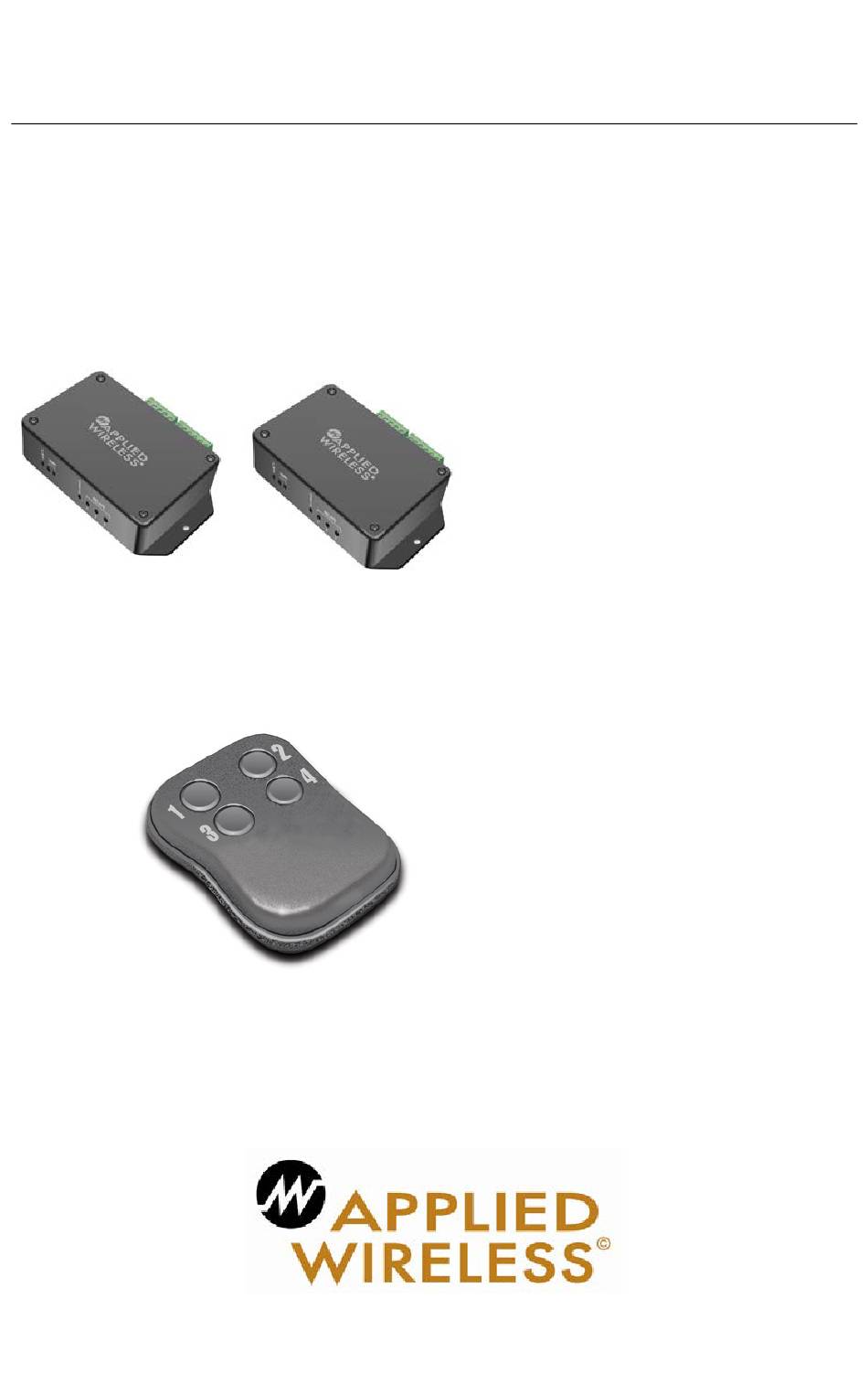

- Page 1 User’s Guide Instructions for Installation and Operation 900 MHz Spread Spectrum Switch Follower Remote Switching Products Model SF900 900 MHz Spread Spectrum Two-Way Remote Control Model SFT900-4 Long Range Wireless Applications...
- Page 2 This page intentionally left blank.
-
Page 3: Product Descriptions
In this configuration, latched, momentary and toggle mode outputs are available. When a button is pushed on the SFT900-4, a beep will indicate that the proper relay was triggered in the SF900. In this configuration, the SF900 is always in the loopback mode. - Page 4 Installation Instructions Before Beginning the Installation Plan your installation carefully. The physical location and orientation of the unit will have a significant influence on reception, particularly at longest ranges. For best results, the antennas should be positioned vertically (pointing either up or down). If necessary, use double-sided foam tape or hook &...
- Page 5 For example, if channel 1 and 2 are set to latched mode, pushing button 1 on the SFT900-4 will turn relay 1 on the SF900. Pushing button 2 will turn off relay 1 and turn on relay 2. This mode is often used when a separate on and off button is desired.
-
Page 6: Latched Mode
1, 2, 3, 4 on the SFT900. Two beeps will be heard from the SFT900. After a few seconds of handshaking protocol, the power LED on the SF900 will stop blinking and remain ON and the data LED will light. A beep will be heard from the SFT900. Pairing will be complete. - Page 7 LED is activated. Controlling 120V Circuits and High Amperage Loads The SF900 transceiver is not UL listed, and 110 Volt or higher voltage circuits should not be directly connected to the unit. These high voltage circuits can be controlled however by using a contactor with a 24-VAC coil (AW PN 269006, 30A contactor).
- Page 8 Receiver Package Information NC-Normally Closed Contact C1- Common Contact NO- Normally Open Contact- Terminal Strips may be “unplugged” for ease of installation Block Diagram...
-
Page 9: Ordering Information
Ordering Information Model No. Product Description SF900 Switch Follower, Single Unit SF900-P Switch Follower, 2-Unit Set SFT900-4 4-Button Handheld Transmitter Receiver Electrical Characteristics Parameter Unit Operating Voltage Range (AC or DC) Volts Operating Current, Receive Mode Operating Current, Transmit Mode “Input Signal”... - Page 10 Application Drawings Remote Activation of Relay(s) In this example, switch(s) activation on a water tank or other switch application, will remotely activate a relay(s) for activating, pump, motor, light or other device.
- Page 11 Application Circuit-Loopback Mode AC or DC Power AC or DC Power Supply or Adapter Supply or Adapter as required. as required. These switches (or other low voltage signals up to 36 Volts) controls these lights (or other low voltage loads up to 10 Amps.
- Page 12 Application Circuit- Thermostat to HVAC...
- Page 13 (USA) IMITED ARRANTY Products manufactured APPLIED This warranty is extended to the original purchaser of the product(s) only, and is not WIRELESS, INC. (AW) and sold to purchasers transferable to any subsequent owner or in the USA are warranted by AW according to the following terms and conditions.
- Page 14 You must first contact AW at the following address/phone for assistance: APPLIED WIRELESS, INC. 1250 Avenida Acaso, Suite F Camarillo, CA 93012...
-
Page 15: Troubleshooting Guide
Troubleshooting Guide Symptom Possible Problem Notes Antenna Receiver Antenna connected,vertically oriented and placed Poor Range preferably at least 7' high and away from metal surfaces. Antenna will not work inside a metal box. Battery Replace Battery (SFT900-4) Power Doesn't Work Check power to receiver (power LED lights?) Slow Response... - Page 16 Applied Wireless products are designed and manufactured with pride in the United States of America Copyright 2007 by Applied Wireless, Inc. All rights reserved. Specifications subject to change without notice. PPLIED IRELESS 1250 Avenida Acaso, Camarillo, CA 93012 Phone: 805-383-9600 Fax: 805-383-9001 Email: info@appliedwireless.com...
