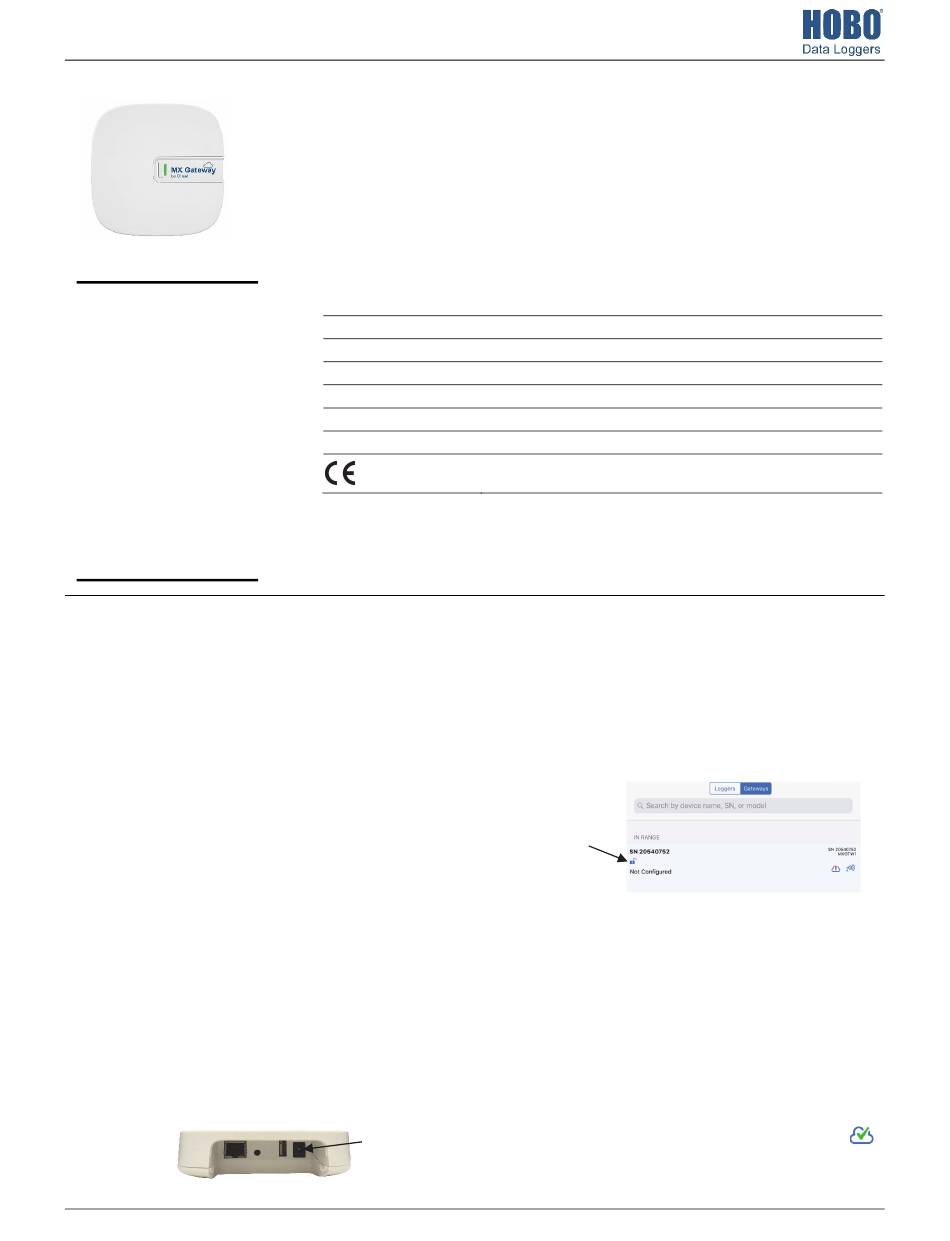

HOBO® MX Gateway (MXGTW1) Manual

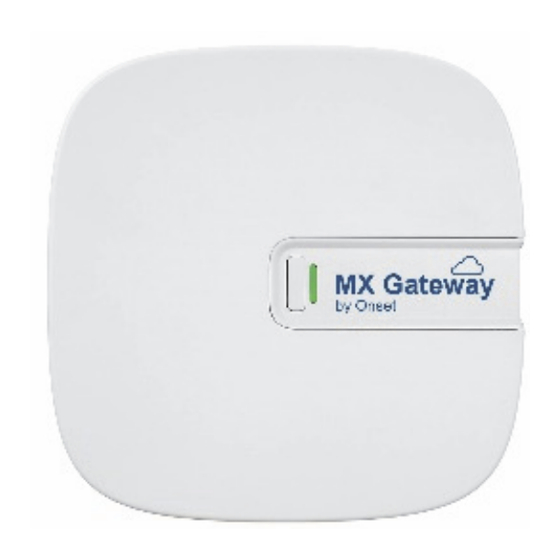

HOBO MX Gateway
MXGTW1
Included Items:
 Mounting kit
 AC adapter
Required Items:
 HOBOlink account
 HOBOmobile app
 Device with iOS or
Android™ and Bluetooth
Low Energy

 MX1101, MX1102, MX1104,

MX1105, MX2001, MX2200,
MX2300, or MX2501
loggers


Setting up the Gateway
Follow these steps to set up the gateway for the first time.
1. Download the HOBOmobile app.
Go to the App Store® or Google Play™ and download
HOBOmobile to your phone or tablet. Open the app and
enable Bluetooth in the device settings if prompted.
2. Set up HOBOlink settings in HOBOmobile.
a. Tap the Devices icon and then tap Gateways at the top
of the screen.
b. If you do not already have a HOBOlink account, tap the
link to create one or go to www.hobolink.com. You'll
receive an email to activate the new account. Return to
HOBOmobile when done.
c. In HOBOmobile, tap Use MX Gateways (or go to Settings
and then tap HOBOlink).
d. Enter your HOBOlink username and password and tap
Done. (Enable Upload Data if you are not prompted for
the username and password.)
e. Select "from a Gateway" for the default HOBOlink
upload setting.
3. Power up the gateway.
a. Insert the appropriate plug for your region into the AC
adapter. Connect the AC adapter to the gateway and
plug it in.
23470‐E
The HOBO MX Gateway provides near real‐time data monitoring for most MX series loggers by
automatically transmitting logged data to the HOBOlink® website. You can easily set up the
gateway with the HOBOmobile® app on your phone or tablet. Once configured, the gateway
uses Bluetooth® Low Energy (BLE) to regularly check for measurements from up to 100 loggers
within range. Logger measurements are then uploaded from the gateway via Ethernet or WiFi
to HOBOlink, where you can set up automatic email or text alarm notifications, display your
data in a dashboard, and export data for further analysis. Note: All MX loggers except the
MX100 series are supported by the gateway. Contact Onset Technical Support for questions on
MX100 logger compatibility with the gateway.
Specifications
Transmission Range
Approximately 30.5 m (100 ft) line‐of‐sight
Wireless Data Standard
Bluetooth 5.0 (BLE)
Connectivity
WiFi 802.11a/b/g/n 2.4/5 GHz or 10/100 Ethernet
Power Source
AC adapter or PoE
Dimensions
12.4 x 12.4 x 2.87 cm (4.88 x 4.88 x 1.13 inches)
Weight
137 g (4.83 oz)
The CE Marking identifies this product as complying with all relevant

directives in the European Union (EU).
Plug in AC
adapter here


b. Wait for the gateway to boot up and appear in
HOBOmobile. While the gateway boots up, the LED on
the gateway will start as solid yellow and then switch to
blinking yellow. It will take 4 to 5 minutes before the
gateway appears in HOBOmobile.
4. Set up gateway network settings.
a. In HOBOmobile, tap Devices and then tap Gateways at
the top of the screen. Tap the gateway to connect to it.
Tap anywhere
in the row to
connect to the
gateway
If the gateway does not appear, make sure it is
completely powered up as described in step 3 and
within range of your phone or tablet.
b. To set up WiFi:
i. Tap Network Settings.
ii. Tap WiFi and then the arrow to open WiFi Settings.
iii. Select Use Current WiFi Network to use your phone
or tablet's existing WiFI SSID and then type your
password. Tap Save.
iv. The gateway will automatically test the network
connection after saving the settings. The cloud icon
in HOBOmobile will display a green checkmark
once the network settings have been successfully
configured. If a message appears in the app



Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Hobo MX Series

  • Page 1: Specifications

    HOBO® MX Gateway (MXGTW1) Manual   The HOBO MX Gateway provides near real‐time data monitoring for most MX series loggers by  automatically transmitting logged data to the HOBOlink® website. You can easily set up the  gateway with the HOBOmobile® app on your phone or tablet. Once configured, the gateway  uses Bluetooth® Low Energy (BLE) to regularly check for measurements from up to 100 loggers  within range. Logger measurements are then uploaded from the gateway via Ethernet or WiFi  to HOBOlink, where you can set up automatic email or text alarm notifications, display your  data in a dashboard, and export data for further analysis. Note: All MX loggers except the  MX100 series are supported by the gateway. Contact Onset Technical Support for questions on  MX100 logger compatibility with the gateway.    HOBO MX Gateway  Specifications  MXGTW1  Transmission Range  Approximately 30.5 m (100 ft) line‐of‐sight  Included Items:  Wireless Data Standard  Bluetooth 5.0 (BLE)   Mounting kit  Connectivity  WiFi 802.11a/b/g/n 2.4/5 GHz or 10/100 Ethernet   AC adapter  Power Source  AC adapter or PoE  Required Items:  Dimensions  12.4 x 12.4 x 2.87 cm (4.88 x 4.88 x 1.13 inches)   HOBOlink account  Weight  137 g (4.83 oz)   HOBOmobile app   Device with iOS or  The CE Marking identifies this product as complying with all relevant ...
  • Page 2   HOBO MX Gateway Manual  prompting you to cycle the power on the gateway,  Note: MX100 series loggers are not supported by the  follow the instructions and remove the power cord  gateway. Contact Onset Technical Support for questions on  and then plug it back in after a couple of seconds. If  MX100 logger compatibility with the gateway.  the test is not successful and this icon still appears  To configure a logger for use with the gateway:  , make sure all your settings are entered  a. Tap Devices, and then Loggers at the top of the screen.  correctly and saved.  b. Tap the logger to connect to it and then tap Configure.  c. To set up Ethernet:  c. Make sure “from a Gateway” is checked under Upload  Plug in an Ethernet cable. The network settings are  Data to HOBOlink.  automatically configured if your Ethernet connection is  using DHCP (dynamic IP addresses). The cloud icon in  d. Choose other logger settings keeping in mind the  following:  HOBOmobile will display a green checkmark  .   A logging interval of 5 minutes or slower is optimal for  the gateway, although it can support a logging interval  down to 1 minute (see Viewing Data Uploaded from  the Gateway for details).   If you select a logging interval faster than 1 minute, the  data logged at the faster rate will not be available for  the gateway to upload. Use HOBOmobile to read out  the logger and retrieve this data.   Burst logging and statistics are not supported by the ...
  • Page 3   HOBO MX Gateway Manual  shown below for optimal signal strength. Also mount away  Connecting to the Gateway  from the corners where walls meet and above the tallest  To connect to the gateway with your phone or tablet:  obstructions in the room.  1. In HOBOmobile, tap Devices and then tap Gateways at the  top of the screen.  2. Tap the gateway in the list to connect to it.  For wall mounting,  position the gateway  If the gateway does not appear in the list or if it is having  facing the coverage  trouble connecting, follow these tips:  area with the logo   Make sure the gateway is within range of your phone or  oriented as shown  tablet when connecting to it. If your mobile device can    connect to the gateway intermittently or loses its   If you are mounting the gateway on a ceiling, place it on  connection, move closer to the gateway, within sight if  the lowest available mounting point facing downwards for  possible. Check the gateway signal strength icon   in the  optimal signal strength. Also mount away from HVAC ducts  app to make sure there is a strong signal between the  and below I‐beams or support beams.  phone and the gateway. The more blue bars, the stronger   Use the enclosed mounting kit to mount the gateway to a  the signal.  flat surface. Use the self‐tapping screws and anchors to   Change the orientation of your phone or tablet to ensure ...
  • Page 4   HOBO MX Gateway Manual  See the HOBOlink Help for details on how to set up a  Monitoring the Gateway  dashboard, export data, or create a data delivery schedule.  A heartbeat is regularly sent from the gateway to HOBOlink to  Notes:  make sure the gateway is still active. If no heartbeat is sent  after 15 minutes, then the gateway status will change from OK   A logging interval of 5 minutes or slower is optimal for the  to missing. The gateway will continue downloading the loggers  gateway, although it can support a logging interval down  even if it is not able to connect to HOBOlink. The data will be  to 1 minute. If the logging interval is set from 1 minute up  stored temporarily in the gateway and uploaded the next time  to 5 minutes, there may be occasional missing individual  it is able to connect to HOBOlink.  data points in exported files. Both the gateway and loggers  regularly “advertise” or send out Bluetooth signals. The  To check the status of the gateway in HOBOlink, click Devices  and then click MX Devices. Each gateway is listed by name and  rate at which these signals are sent may differ between  serial number with the status and the last time data was  the gateway and the loggers and can result in occasional  uploaded with the gateway.  data points not being uploaded. Use HOBOmobile to read  out the logger and generate a report with all data points  You can also set up an alarm to notify you via text or email  for the current deployment.  when a gateway is missing or when the loggers that are being   No data will be uploaded for loggers configured with  monitored by the gateway are missing, tripped an alarm, or  have low batteries.  logging intervals faster than 1 minute. If your deployment  requires logging faster than 1 minute, use HOBOmobile to  To set up a gateway alarm:  read out the logger and generate a report with this data.  1. In HOBOlink, click Devices and then click MX Devices. ...
  • Page 5   HOBO MX Gateway Manual  Resetting the Gateway  There is a reset button on the back of the gateway next to the  Ethernet port as shown below. You may be directed to press  this button by Onset Technical Support if you are experiencing  problems with the gateway. Refer to the table below for the  action taken by the gateway when the reset button is pressed  for varying lengths of time.  Reset  button    When you press  the reset button  like this:  The gateway does this:  Quick press, less  Soft reboot. This restarts the operating  than 2 seconds  system on the gateway without interrupting  power.  Short press,   Network reset. This clears all connections  2–4 seconds  configured by the gateway and requires the  button to be pressed for 2 to 4 seconds. To  aid the timing of the network reset, the LED  quickly flashes yellow to indicate the  window when the button should be  released. When the button is released  during that window, the LED will quickly  flash green to confirm the network reset  operation has been triggered. If you release  the button after 4 seconds, the LED will  return to the behavior it displayed before  quickly flashing yellow. If you release the  button between 4 and 8 seconds, no actions  (reboot or reset) are performed.  Long press,   Hard reboot. This resets the processor and ...
