Sicherheitshinweise
DE
Bedienungsanleitung
Ersatzteilliste
Instructions de sécurité
FR
Mode d'emploi type
Liste pièces de rechange
Avvisi di sicurezza
IT
Istruzioni per l'uso modello
Elenco dei pezzi di ricambio
Safety Instructions
GB
Operating Instructions
Replacement Parts
1904160 | 01-2015 | spewe.ch
DE
FR
IT
GB
2
3-9
10/12
2
3-9
11-12
2
3-9
11-12
2
3-9
11-12

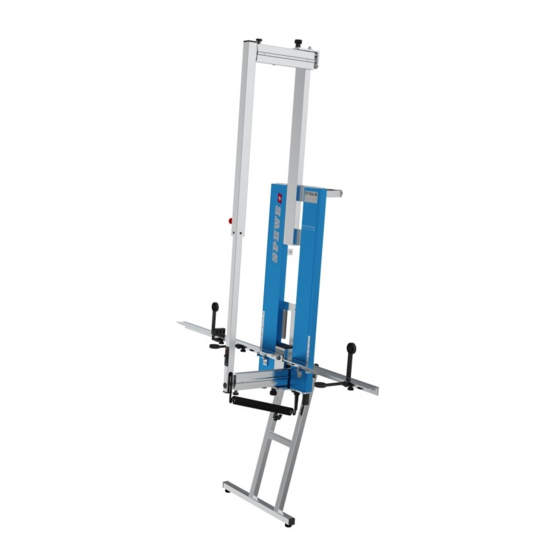

Spewe DT127-30 / DT104-28
DT127-30
DT104-28
Mod. 2015
Glühdraht-Schneidegerät
Découpeuse a filament chauffant
Trancia a filo incandescente
Heated Wire Cutting Device
1
Advertisement
Related Manuals for SPEWE DT104-28
Summary of Contents for SPEWE DT104-28
- Page 1 Instructions de sécurité Mode d’emploi type Liste pièces de rechange 11-12 Avvisi di sicurezza Istruzioni per l’uso modello Elenco dei pezzi di ricambio 11-12 Safety Instructions Operating Instructions Replacement Parts 11-12 Spewe DT127-30 / DT104-28 1904160 | 01-2015 | spewe.ch...
- Page 2 Découpe: Thermique, Alimentation : 230V / 50 Hz Corredo di fornitura: Trancia a filo incandescente modello DT127-30 / DT104-28 con alimentatore integrato, istruzioni per l’uso, (valigetta per il trasporto e la custodia). Optionale: Supporto per parapetto | supporto per il montaggio libero Dati tecnici: Lunghezza di taglio: 127 cm / 104 cm| Profondità...
- Page 3 The stand, angled forwards, allows the device to utilise the space between the wall and frame retainer. This results in enhanced access at the Fig. 3 frame. Spewe DT127-30 / DT104-28 1904160 | 01-2015 | spewe.ch...
- Page 4 Pivot the bearing rail [9+10]. Fold out the bearing supports [11] beneath the bearing rails. These can be shifted if necessary. To do so, loosen the knurled screw [12]. Fold out the bearing supports [13] on both sides. Fig. 6 Fig. 7 Spewe DT127-30 / DT104-28 1904160 | 01-2015...
- Page 5 Loosen the knurled screw [14+15+16], retract the cutting bracket, tighten the knurled screw [15+16], tension the wire spool (Fig. 11) and tighten the knurled screw [14]. Fig. 10 Fig. 11 Spewe DT127-30 / DT104-28 1904160 | 01-2015 | spewe.ch...
- Page 6 Separation cut: Draw the cutting bracket [20] to the desired height and tighten the fixing screw [26] top and bottom. Subsequently cut through the panel. After cutting, preferably switch the cutting device off. Fig. 13 Spewe DT127-30 / DT104-28 1904160 | 01-2015...
- Page 7 The wire does not heat up: Clean wire guide rollers [31] top and bottom, as well as contact surfaces [32]. Check that the device is fully extended or Fig. 15 retracted. Check that the knurled screw [33] is securely seated. Spewe DT127-30 / DT104-28 1904160 | 01-2015 | spewe.ch...
- Page 8 Disconnect the device from the 230V mains for 30 minutes to allow it to cool down. Never remove the seal sticker [35] or open up the power supply unit. Repairs must be carried out by a specialist exclusively. Spewe DT127-30 / DT104-28 1904160 | 01-2015...
-
Page 9: Sostituzione Del Filo
Run the wire over the guide rollers [39]+[40]. Loosen the knurled screw [36] and turn the wire spool until the wire is sufficiently tensioned by the tension spring according to the information label. (Fig. 19) Tighten the knurled screw [36] Fig. 19 Spewe DT127-30 / DT104-28 1904160 | 01-2015 | spewe.ch... - Page 10 Art.-Nr. Benennung 1904011 Kugelführung IX kpl. ET 1904022 Anschlag III kpl. ET DT127 Eckschneider zu DT127-30 1200126 (EU) Eckschneider zu DT104-28 (ab Gerät S01J14-0223) 1200129 (EU) 1200132 (CH) 1904012 DT104 Kugelführung X kpl. ET 1904023 Anschlag II kpl. ET 1904272 DT127 Kugelführung XI kpl.
- Page 11 Cutting wire for DT104, 138cm, ø 0.65, 5 units 1200120 Fil de découpe pour DT127, 161cm, ø 0.65, 5 pièces Filo da taglio a DT127, 161cm, ø 0.65, 5 pezzi Cutting wire for DT127, 161cm, ø 0.65, 5 units Spewe DT127-30 / DT104-28 1904160 | 01-2015 | spewe.ch...
- Page 12 Ersatzteilliste / Nomenclature / Elenco parti di ricambio per modello / Spare parts list Spewe DT127-30 / DT104-28 1904160 | 01-2015...
