Zubehör zu Glühdrahtgerät
D
Découpeuse a filament chauffant
F
Trancia a filo incandescente
I

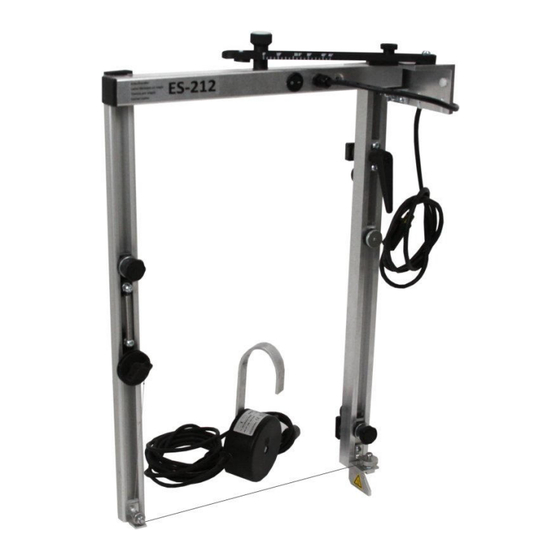

Heated Wire Cutting Device
GB
1903115 | 01-2017 | spewe.ch
Sicherheitshinweise
Bedienungsanleitung
Ersatzteilliste
Instructions de sécurité
Mode d'emploi type
Liste pièces de rechange
Avvisi di sicurezza
Istruzioni per l'uso modello
Elenco dei pezzi di ricambio
Operating Instructions
Replacement Parts
2
3-7
8
2
3-7
8
2
3-7
8
2
3-7
8
ES-212-30
ES-212-30
Art.-Nr. 1200038 (EU
Art.-Nr. 1200167 (EU)
Art.-Nr. 1200168 (CH)
1
Advertisement
Table of Contents
Related Manuals for SPEWE ES-212-30
Summary of Contents for SPEWE ES-212-30
- Page 1 Instructions de sécurité Mode d’emploi type Liste pièces de rechange Trancia a filo incandescente Avvisi di sicurezza Istruzioni per l’uso modello Elenco dei pezzi di ricambio Heated Wire Cutting Device Safety Instructions Operating Instructions Replacement Parts ES-212-30 1903115 | 01-2017 | spewe.ch...
- Page 2 Poids de l’appareil: 2.0 kg techniques : Découpe: thermique Alimentation électrique: via le transformateur Corredo di fornitura : Dispositivo di taglio angoli modello ES-212-30, trasformatore, cavalletto, Istruzioni d’uso. Optionale: Custodia Dati tecnici: Lunghezza di taglio: 31 cm Profondità di taglio: 52 cm Peso: 2.0 kg...
- Page 3 [3]. Transformateur à pied barre de mon- tage [4]. Coupe de coin en contact avec trans- formateur [5] et un transformateur branché sur le secteur. ES-212-30 1903115 | 01-2017...
- Page 4 - Preferably push up the edge cutter holding the cross tube or on the clamp lever in the rear area. Fit clamp lever slightly and switch off the equipment. Do NOT press up the edge cutter on the front aluminium rail [12]. ES-212-30 1903115 | 01-2017...
- Page 5 Rafter section can also be cut out on front side if the board is lying down. Position desired slope by tilting the edge cutter & fit with star handle [13]. Fit rafter height with slide [2] ES-212-30 1903115 | 01-2017...
- Page 6 [14], the exact 90° adjustment is perfor- med. Parking position: If the edge cutter is not required, it can be pivoted so that unob- structed working with the standing equipment is possible. The edge cutter does not have to be dismounted. ES-212-30 1903115 | 01-2017...
- Page 7 Slightly loosen star handle [15] on endless coil, pull wire forward, at roundel thread from the bottom [16] and secure with simple ooze [17]. Rewind excessive wire on wire coil and fit star handle [15] again. Subsequently tighten wire with star handle [7]. ES-212-30 1903115 | 01-2017...
- Page 8 Teflon disc grey, 27x8mm 1900463 Teflonspray, 100ml Teflon spray, tin 100ml 1903221 Trasformatore 11V, 230V DE Transformer 11V, 230V DE 12.1 1903220 Trasformatore 11V, 230V CH 1900521 Molla di tensione Tension spring 1904925 Custodia per il trasporto Transport bac ES-212-30 1903115 | 01-2017...
