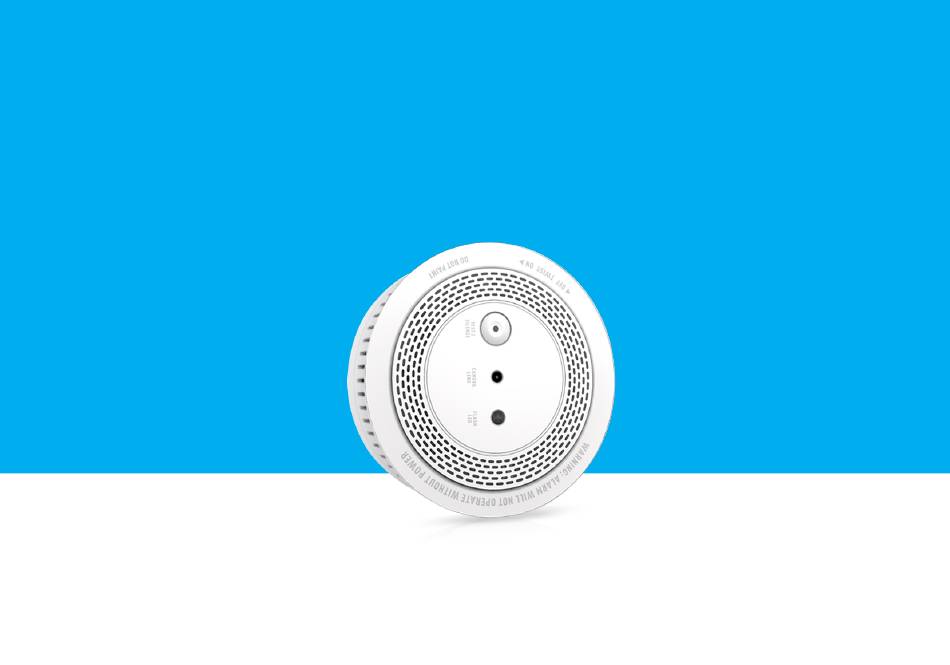

- Page 1 Smoke Alarm Camera Manual Model : WM2...
- Page 3 Welcome Thank you for choosing Vstarcam! Start your security journey~...
-
Page 4: Packing List
Packing List 3V Alkaline Battery*1 Smart smoke alarm*1 User Manual*1 A bag of screws... -
Page 5: Product Description
Product Description Lens Screw Fixing Hole Key Button Base Plate LED Indicator Battery Compartments Flash LED Screw Fixing Hole Smoke Input/ Sound Output Holes Front Rear... - Page 6 Functions After the battery is installed, it will start automatically (once the siren rings, Boot and Working the red LED flashes once, and the blue LED flashes 2S). status of device If the device is not configured with WIFI, and still not start to configure WiFi after 30S, the device will enter sleep state.
- Page 7 alarm once. After 10S, if detected smoke alarm again, the siren will alarm again, and continue to circulate until the smoke concentration is lower than the alarm value). Long press 5S to clear WIFI information and restore factory Settings Detectionfrequency:once/10s(oncesmokeisdetected,thedetection Smoke alarm frequencywillbeaccelerateduntilanalarmisgiven) Sound and light alarm: siren continues alarm, red LED flash continuously,...
-
Page 8: Application Scenarios
Ignore Push Smoke triggers the alarm. After the APP receives the push, press the ignore button on the push interface. After that, the push will not be carried out for 2 minutes. At the same time, alarm siren/red LED alarm every 5S) 1. - Page 9 Instructions Pull out the battery insulator in the battery box, and the blue light on the front of the smoke det -ector starts to flash slowly after the power is connected (flashing every 2 seconds, indicating that the battery is energized and waiting for the network configuration)， then follow the instruction steps in the mobile APP to complete the adding of the smart smoke alarm.
- Page 10 Connect to the network 1. APP download ① Search "Eye4" in App Store, Google Play or other phone platform store. ②Scan the QR code below to download the APP. 2、 Account Register Launch the APP Eye4, select the "Register" button, create a user name & a password and tap ‘Submit’, done.
- Page 11 3.Add the device There are two ways to connect the smoke alarm: Scan QR code and Others. Before adding the device, please turn on the bluetooth function of your mobile phone. Scan QR code ① Open the APP, click the "+" icon on the upper right corner of the homepage, and scan the QR code on the body of the smoke alarm.
- Page 12 ② After scanning the code successfully, confirm that the blue indicator light of smoke sense flashes every 2 seconds, check this option on the APP page and click "Next". (Note: After 30s without network configuration, the blue light goes out and enters sleep mode.
- Page 13 Reset method: Long press "Test/Reset button" for 5 seconds to reset. After successful reset, the blue light flashes every 2 second. ③ The APP began to search for the smoke alarm, which takes about 5~30 seconds. After the smoke alarm is detected, click “configure" to enter the WiFi configuration page. Please confirm your wifi...
- Page 14 If this method failed, you may try ‘Others’ way.
- Page 15 Others ① Open the APP, click the "+" icon in the upper right corner of the homepage, and select "Others" in the lower right corner, then select "Photograph smoke detector ", and select the correct model.(You can check the product model on the package box.).
- Page 16 ② Please confirm that the blue indicator light of smoke alarm flashes every 2 seconds. Check this option on the APP page and click "Next". (Note: After 30s without network configuration, the blue light goes out and enters sleep mode. Press the key button and it will enter network configuration mode again, flashing every 2 second)
- Page 17 ③ The APP began to search for smoke alarm, which takes about 5~30 seconds. After the smoke alarm is detected, click “configure" to enter the WiFi configuration page. Please confirm your wifi SSID and enter the correct wifi password, click "Working". After the binding is completed, the device will be on the APP homepage.
- Page 18 Use and share Smoke alarm prompt: If the device is connected the network successfully, when the smoke concentration reaches the alarm value, the alarm red light flashes continuously, the siren sounds twice (beep,beep,beep ), the fill light lights up, the alarm takes a picture and the picture is sent to the APP ( If the device is not connected to the network , the alarm sounds and the red indicator light flashes, the fill light does not light, and the photo is not taken).
- Page 19 Installation guide The installation location is generally selected under the ceiling in the center of the room. For the sloping beam roof, the ceiling is also inclined, the angle of inclination of the alarm shall not exceed 45 °C, and the horizontal distance from the apex shall not exceed 0.9 m. Fix the base to the ceiling with Install the detector on the base by screws and plastic expansion...
- Page 20 Q: Why can not add device to mobile app? A: 1. Please confirm that the wireless network to be connected is 2.4G frequency. 2. Confirm that the device is in the standby state: the indicator flashes once every one second. 3.
- Page 21 Q: What if no alarm when there is smoke? A: 1. Check whether the network connection of the alarm is normal (When not connected to network, the alarm sounds and the red indicator light flashes, but no fill lights on, no pictures taken).
- Page 22 If you have any questions about the product, please contact us: Email ： support@vstarcam.com Website: http://www.vstarcam.com...
