Retekess TR604 User Manual

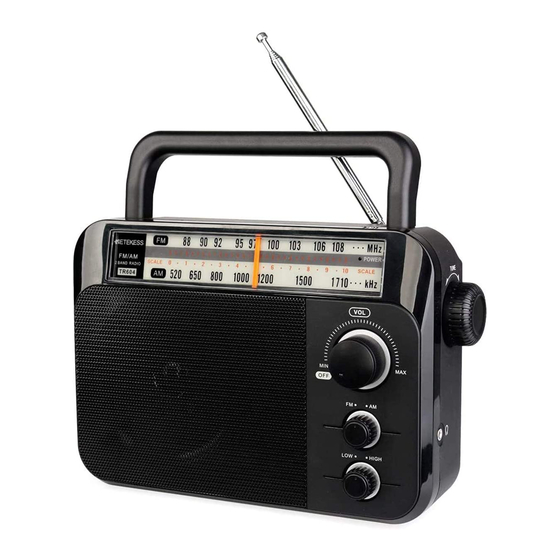

Retekess TR604 FM/AM 2 Band Radio User Manual
WARNING
There may be electric shock dangerous when you don't operate or use this machine correctly,
please strictly operate in accordance with its regulations. Except for the authorized repairing
personnel, never open the back cabinet arbitrarily so as to avoid the dangerous of electric shock.
Please don't expose the unit under the rain or humid place, prevent from water and spray. Don't
put anything which fill with liquid like vase etc above this unit.
Please don't press or bend the AC cord of the unit, in case of the copper inside the AC cord break
and lead to open circuit.
When fall across thunderstorm or you don't use this machine for a long time, please do pull out
the AC plug.
Please pull out the batteries when don't use DC power supply, so as to avoid batteries electronic
leak liquid corroding the radio.
Don't use the batteries combined with new and old, or different category. Please put he dumped
batteries on the place where indicate by government to avoid environment pollution.
1 2
3 4 5
1.Handle 7.Band switch
2.FM antenna
8.High&Low tone
3.Dial scale
9.Tuning knob
4.Dial pointer
10.Earphone jack
5.Power indicator
11.AC socket
6.Volume control &
12.Battery door
Power switch
9
6
11
10
7
12
8
POWER SUPPLY
1. This unit has the function of AC&DC available power supplying, AC voltage is 110V 60Hz or
220V/50Hz, DC voltage is 4.5V (3x1.5V R20/D size) .
2. When use the AC power, please connect the inlet of the AC cord with the socket jack (11), and
put the plug of the AC cord into power board or the power socket on the wall.
3. When use the DC power, please operate as the following procedures;
1) Push down the battery doorlocks by hands and take apart the battery door (12).
2) Aiming the polarity of the battery, put into 3 pcs 1.5V R20/D size.
3) Closed the battery door.
NOTICE
Just to be on the safe side, please pull out the AC plug from power supplying before installing
batteries.
Please try to use the AC power supplying due to because the time is limited for batteries
proving power.
RADIO OPERATION
1. Move the power switch (6) between on and off to control.
2. Move the band switch (7) to the band you want to listen: AM or FM, after band selected,
turn the tuning knob (9) and watch the dial pointer (4) on dial scale (3) to search your
desired station program.
3. Use volume control (6) to regulate the large or small volume of the sound.
4. Use high & low tone (8) for your preference.
5. You can see earphone to listen to radio in case of disturb other people. Insert the earphone
plug into "earphone jack" (10).
ANTENNA OPERATION
1. When listen to FM, please pull out the FM antenna (2) to obtained the best effect.
2. When receiving AM, it's using the internal magnetic antenna, you can get the optimum
reception by rotating the direction of the radio.
MAINTENANCE
1. Please put this unit at well ventilated place, don't use it in high temperature or humid environment.
When maintain this radio, please clean up this machine with soft cloth, but with out any lubricant,
alcohol etc volatile liguid.
2. The machinery parts of this machine have been fully lubricated by factory before delivery.
WARNING
RF ENERGY EXPOSURE AND PRODUCT SAFETY GUIDE
Before using this radio, read this guide which contains important
operating instructions for safe usage and RF energy awareness
and control for compliance with applicable standards and regulations.
Local Government Regulations
When radios are used as a consequence of employment, the Local Government Regulations
