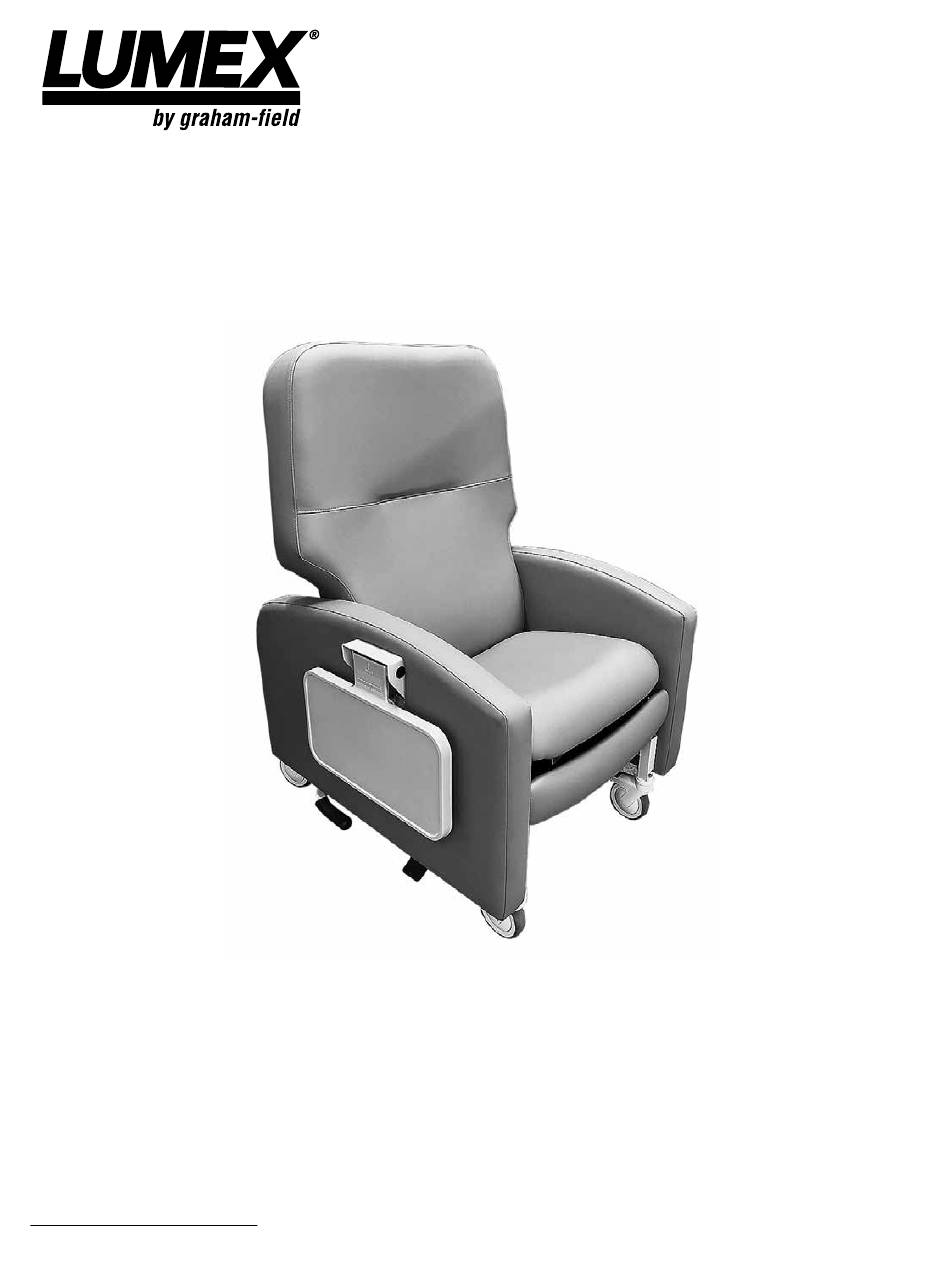

FR601 Series Clinical Care Recliner with Pivot-Arm
FR601H Series Clinical Care Recliner with Pivot-Arm and
Heat and Massage Function
Assembly and Operating Instructions
IMPORTANT: READ THIS MANUAL BEFORE OPERATING YOUR LUMEX FR601 / FR601H
SERIES CLINICAL CARE RECLINER WITH PIVOT-ARM.
SAVE THIS MANUAL FOR FUTURE USE.
THE MOST CURRENT VERSION OF THIS MANUAL CAN BE FOUND ONLINE AT
www.grahamfield.com.
FR601-INS-LAB-RevC20
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Graham Field Lumex FR601 Series
Summary of Contents for Graham Field Lumex FR601 Series
- Page 1 FR601 Series Clinical Care Recliner with Pivot-Arm FR601H Series Clinical Care Recliner with Pivot-Arm and Heat and Massage Function Assembly and Operating Instructions IMPORTANT: READ THIS MANUAL BEFORE OPERATING YOUR LUMEX FR601 / FR601H SERIES CLINICAL CARE RECLINER WITH PIVOT-ARM. SAVE THIS MANUAL FOR FUTURE USE.
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION ...............................3 INTENDED USE ..............................3 IMPORTANT SAFETY PRECAUTIONS—PLEASE READ BEFORE USE ............3 WARNINGS ..............................3 ASSEMBLY ................................5 UNPACKING...............................5 PRODUCT DESCRIPTION ..........................5 UPHOLSTERED BACK ASSEMBLY, ALL MODELS ..................6 OPERATION ................................7 TENTE CASTERS............................. 7 ® LOCKING CASTERS ...........................7 DIRECTIONAL (SWIVEL) CASTER ......................7 SIDE TABLE OPERATION ..........................8 RAISE SIDE TABLE ............................8 LOWER SIDE TABLE ..........................8... -
Page 3: Introduction
INTRODUCTION This manual contains assembly, operation, and maintenance instructions for the Lumex Clinical Care Recliners Series FR601 and FR601H. Read the entire manual carefully before using your recliner, and refer to it during use if you have questions. If you have further questions, call Graham-Field / Lumex Technical Support at 1.770.368.4700. - Page 4 WARNING: This product has a maximum weight capacity of 400 lb (184 kg), EVENLY DISTRIBUTED. WARNING: Casters must be locked at all times, except during transport. WARNING: Unauthorized modification of your recliner or the use of non-Lumex replacement parts may change the structure of the recliner and could create a hazardous condition, which may result in serious injury and will void the warranty.
-
Page 5: Assembly
ASSEMBLY UNPACKING 1. Check for obvious damage to the carton or its contents. If damage is evident, notify the carrier and your Graham-Field authorized distributor. 2. Remove all packaging materials from recliner base. PRODUCT DESCRIPTION upholstered back push handle upholstered seat pivot-arms upholstered legrest / skirt... -
Page 6: Upholstered Back Assembly, All Models
UPHOLSTERED BACK ASSEMBLY, ALL MODELS upholstered back upholstered skirt threaded knobs upholstered back’s knockdown brackets steel tube mechanism’s bayonet links bracket and link to be even threaded knob through large bayonet hole in link knockdown bracket bayonet link 1. Lift the skirt on the rear of the upholstered back. To make assembly easier, hold skirt up with a small piece of tape to fully expose the knockdown brackets that are to be mated to the two bayonet lugs on the recliner mechanism. -
Page 7: Operation
OPERATION TENTE CASTERS ® WARNING: Casters must be locked at all times EXCEPT during transport. black actuator tab green actuator tab total directional (swivel) locking caster locking caster (right rear caster) All Lumex Clinical Care Recliners now feature the latest design, all-plastic casters from TENTE, shown above. -
Page 8: Side Table Operation
SIDE TABLE OPERATION side table (disengaged position) armrest " clevis pin attachment side table (engaged position) side table mount bracket tabs engage into slots on side table mount bracket side table (stored position) Side Table See illustration above for side table operation. Raise Side Table Raise the side table all the way up and slide in toward the armrest until tabs engage slots in mount bracket. -
Page 9: Recliner Operation
RECLINER OPERATION The Lumex Series FR601 and FR601H Recliners feature three positions for patient comfort. The fourth position is a Trendelenburg (or Shock Position) that must be activated by a caregiver. The Trendelenburg Position CANNOT be activated by a patient while in the recliner. -
Page 10: Trendelenburg Position (Also Known As Shock Position)
Trendelenburg Position (Also Known as Shock Position) Second Recline Position (Full Recline Position) Info: This position can only be achieved by a caregiver. See picture at right. Standing on either side of the recliner, grasp the armrest with one hand while holding the recliner back with the other. -
Page 11: Pivot-Arm Operation
PIVOT-ARM OPERATION See pictures at right. The FR601 Clinical Care Recliner features two pivot-arms. The pivot-arms make cleaning the recliner much easier and more efficient. The pivot-arms are hinged at the back of the recliner. WARNING: The pivot-arm Feature is a CAREGIVER OPERATED FEATURE. -
Page 12: Footplate Operation
FOOTPLATE OPERATION Footplate Shown in Extended Position The FR601 Pivot-Arm Recliner features a self-storing footplate, shown above, for patient comfort and convenience during patient transport. The footplate is easily extended when needed and can be stored safely out of the way when not in use. To operate the footplate, pull it out from underneath the recliner until fully extended —... -
Page 13: Heat And Massage Unit Setup Instructions (Gen 3 Pendant-Operated)
HEAT AND MASSAGE UNIT SETUP INSTRUCTIONS (GEN 3 PENDANT-OPERATED) INSTALLATION AND OPERATING GUIDE FOR CLINICAL CARE RECLINERS WITH HEAT AND MASSAGE FEATURE (FR601H SERIES) WARNING: Important! Read and understand these instructions before assembling or using the Lumex Specialty Healthcare Seating Heat and Massage Unit. If you do not understand any part of these warnings, cautions or instructions, contact a healthcare professional for direction in the use of this product. -
Page 14: Main Components
Main Components Handheld Heat and Massage Pendant Shown in Storage Bracket on Back of Recliner 1. The handheld pendant comes pre-installed and is shipped within the back compartment. To store the pendant when not in use or for caregiver use, place the pendant in the pendant storage bracket mounted on the back of the recliner as shown above. -
Page 15: Heat And Massage Installation Instructions
Heat and Massage Installation Instructions 1. Place the back cushion over the vertical bayonet lugs of the recliner mechanism. Secure the back on each side with the threaded screw knobs per the previous Upholstered Back Assembly instructions. Handheld Pendant Storage Bracket Raise Back to Access 601H Back Back Compartment... -
Page 16: Heat And Massage Unit Operation Instructions
Heat and Massage Unit Operation Instructions 1. Plug the power cord into any grounded outlet. Heat and Massage Handheld Pendant 2. The Heat and Massage Unit is operated using the handheld pendant, shown above. Faceplate Selector Switch, Heat and Massage Handheld Pendant 3. - Page 17 4. Press the left switch to start the Massage function. The Massage Function Settings are as follows: a) Press selector switch for Setting 1: Gentle Lower Back Massage. b) Press selector switch AGAIN for Setting 2: Firm Lower Back Massage. c) Press selector switch AGAIN for Setting 3: Gentle Upper and Lower Back Massage.
-
Page 18: Heat And Massage Unit Troubleshooting Guide
Heat and Massage Unit Troubleshooting Guide The cables and connections need to be validated. This will require the services of a maintenance person and a clear working area. 1. INSPECTION: Perform the following checks. If a working recliner of the same model is available, use it for comparison. -
Page 19: Care And Maintenance
CARE AND MAINTENANCE WARNING: Inspect all components periodically and replace as needed. EVERY THREE MONTHS • Check and clean casters. • Tighten bolts in each leg that secure caster into frame. • Check brakes on casters. • Check and clean lock recline mechanism. •... -
Page 20: Cdc Recommendations
Info: For cleaning that requires step 4 or 5, use a soft cotton cloth saturated with the cleaning material and rub the stain in circles 10 times. Pat dry with another soft cotton cloth and check the results. The information published in this care guide refers to the performance of PERMABLOK3 products in specific tests conducted under laboratory conditions. - Page 21 • Use a one-step process and an EPA-registered hospital detergent / disinfectant designed for general housekeeping purposes in patient-care areas where: • Uncertainty exists as to the nature of the soil on the surfaces (whether it is blood or body fluid or just normal dust or dirt). •...
-
Page 22: Ce Certification (Series Fr601 Only)
CE CERTIFICATION (SERIES FR601 ONLY) Info: CE Certification applies ONLY to Series FR601 Pivot-Arm Clinical Care Recliner. CE Certification DOES NOT apply to Series FR601H Pivot-Arm Clinical Care Recliner with Heat and Massage. GF Health Products, Inc. One Graham-Field Way, Atlanta, Georgia 30340-3140 Tel: 1.770.368.4700 Web: www.grahamfield.com EC Authorized Representative... -
Page 23: Limited Warranty
LIMITED WARRANTY SCOPE OF WARRANTY GF Health Products, Inc. (“GF”) warrants to the original purchaser only that it will replace or repair components, at GF’s sole discretion, that are defective in material or workmanship under normal use and service. All warranties are conditioned upon the proper use of the products strictly in accordance with good commercial practice and applicable GF instructions and manuals, including proper use and maintenance. - Page 24 1.770.368.4700 Information contained herein is subject to change. The most current and complete product information can be found on our website. www.grahamfield.com © 2019, GF Health Products, Inc. All Rights Reserved. Graham-Field and Lumex are trademarks of GF Health Products, Inc. GF Health Products, Inc.
