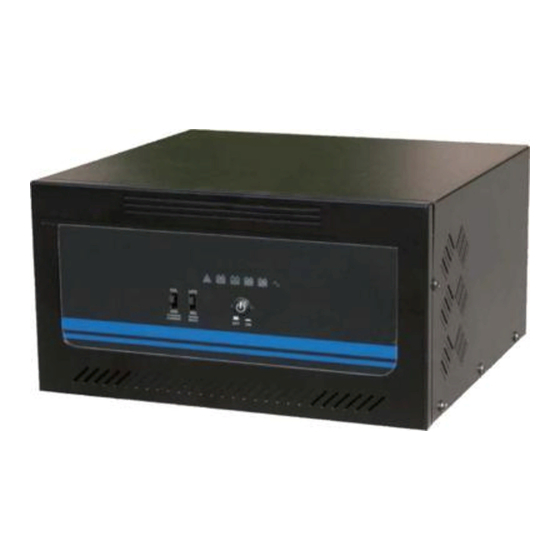

SOHO Intelligent Household Inverter
User Manual
Version
V1.1
Revision Date
2015-11-05
Shenzhen KSTAR Science and Technology Co., Ltd. provides customers
with full-around technical support. Users may contact the nearest KSTAR
local sales office or service center, and can also contact with the company
headquarter.
Shenzhen KSTAR Science and Technology Co., Ltd.
All rights reserved. The contents in this document are subject to change
without notice.
Shenzhen KSTAR Science and Technology Co., Ltd.
Address: KSTAR Industrial Park, No.7, Hi-Tech Industrial West Zone,
Guangming District, Shenzhen, China
Post Code: 518106
Homepage: www.kstar.com.cn
Service hotline: 4007009662
E-mail: service@kstar.com.cn
Advertisement
Table of Contents
Related Manuals for KStar SOHO Series
Summary of Contents for KStar SOHO Series
- Page 1 Revision Date 2015-11-05 Shenzhen KSTAR Science and Technology Co., Ltd. provides customers with full-around technical support. Users may contact the nearest KSTAR local sales office or service center, and can also contact with the company headquarter. Shenzhen KSTAR Science and Technology Co., Ltd.
-
Page 2: Table Of Contents
Contents Chapter 1 Safety Information ..............3 Chapter 2 Overview ................... 4 Applicable Scope ................. 4 Models ....................4 Physical ....................5 Using Environment ................6 Chapter 3 Installation ................6 Preliminary Checking After Unpacking ..........6 Mechanical Installation ................. 7 3.2.1 Installation Location ................ -
Page 3: Chapter 1 Safety Information
Chapter 1 Safety Information Please read and follow bellow instructions carefully, otherwise personal injury or equipment damage may happen. Please keep the manual for future use. Do not reverse connect the positive and negative poles of the battery; Do not short circuit the positive and negative poles of the inverter battery;... -
Page 4: Chapter 2 Overview
Chapter 2 Overview 2.1 Applicable Scope This inverter is an intelligent 1/1 phase pure sine-wave inverter specially designed for the houses and office environment in the regions where the utility voltage is unstable or low for a longtime or where power failure frequently happens. With CPU intelligent control, the inverter has the features of wide input voltage, fast battery charging speed, aesthetic appearance and high reliability. -
Page 5: Physical
2.3 Physical (600VA/800VA) (1000VA/1500VA) (2000VA/3000VA) (4000VA/5000VA) SOHO Inverter User Manual... -
Page 6: Using Environment
Table 2-4 Mechanical Characteristics (Filled in) Items 600VA 800VA 1000VA 1500VA 2000VA 3000VA 4000VA 5000VA Unit 272*285*165 313*295*189 352*220*358 452*260*418 Dimensions Package 380*375*255 420*384*275 435*306*448 535*346*510 Dimensions Net Weight 11.4 13.4 15.0 18.6 (KG) Gross Weight 12.7 14.7 16.5 20.1 39.5 49.5 (KG) -
Page 7: Mechanical Installation
1. Check packaging is good before accepting the goods; 2. Unpack the inverter, check the conditions of the unit and external wiring terminals. If they are damaged during transportation, please contact the carrier immediately; 3. Check if the parts inside the package are complete. Table 3-1 List of Parts Name Quantity... -
Page 8: Chapter 4 Operation
Chapter 4 Operation This chapter introduces the panel functions of SOHO inverter, and the process of turning on/off the inverter. 4.1 Introduction to Panel Prior to operation, be sure to read and understand below indication of the control panel Figure 4-1-1 Front panel of 600-1500VA LED inverter Figure 4-1-2 Front panel of 2000~5000VA LED inverter Note: Functions... - Page 9 The inverter is on when the switch is pressed (the Power switch switch is put to “ON” position) ON, means the inverter is Mains power on, and the mains power indicator input is normal and (green) transfer to load ON, means the inverter is Inverter indicator on, and the load power is (red)
- Page 10 If the alarm lasts for 2s and repeats 4 times, this means the output overload; If the ON, means the inverter alarm lasts for 1s and abnormal, and check if the repeats 3 times, this means Inverter abnormal inverter is faulty, over load the inverter over indicator or over temperature...
- Page 11 Figure 4-1-3 Rear panel of 600~1500VA inverter Figure 4-1-4 Rear panel of 2000VA/3000VA inverter Note: 1---Mains power input cables 2---Mains power input fuse 3---Output receptacle 4---Battery circuit breaker 5---Negative cable of battery 6--- Positive cable of battery 7---Heat dissipating fan 8---Nameplate SOHO Inverter User Manual...
-
Page 12: Off
Figure 4-1-5 Rear panel of 4000VA/5000VA inverter 4.2 On After confirming that the wiring of the inverter is correct, turn on the power switch on the panel of the inverter, then the inverter can be used normally. If the mains power is normal at this time, the mains power indicator and battery charging indicator are on;... -
Page 13: Description Of Audio Alarm
4.4 Description of Audio Alarm Alarm Sound Description Beep every 10S, muted Battery backup mode automatically after 3min Beep twice every 1S Battery low voltage Beep continuously for 4 Output overload times within 2S Beep continuously within UPS startup Beep three times every 1S Inverter over temperature UPS get faulty, such as output short circuit, Beep continuously... - Page 14 On: CHG (turned off after charging cycle is ended), BAT FULL is on after boost charge is completed and transfer to float charge / no alarm sound On: AC(turned off after protection), CHG(turned off after charging cycle is ended), BAT FULL is on after boost charge is Overload completed and transfer to float charge, FAIL /Alarm sound lasts 2s, 4 times continuously,...
-
Page 15: Appendix 1 Technical Specification
buzzer sounds all along after protection On: BAT DIS(turned off after protection), FAIL / Over temperature 1s 3 times (including after protection) Short circuit On: FAIL / Buzzer sounds continuously Battery low voltage On: BAT DIS, BAT LOW / 1s 2 times alarm Battery low voltage On: BAT LOW , / no alarm sound... - Page 16 480W 640W 800W 1200W 1600W 2400W 3200W 4000W Over When heatsink temperature exceeds 90ºC: Shut down charger in mains mode, temperature and shut down inverter in battery mode protection Over voltage Shut down output when the voltage is above 285+/-10V protection Under voltage...
