135R, 336FR, 336RK
EN
Operator's manual
2-28

Advertisement

Table of Contents
loading

Related Manuals for Husqvarna 135R

Summary of Contents for Husqvarna 135R

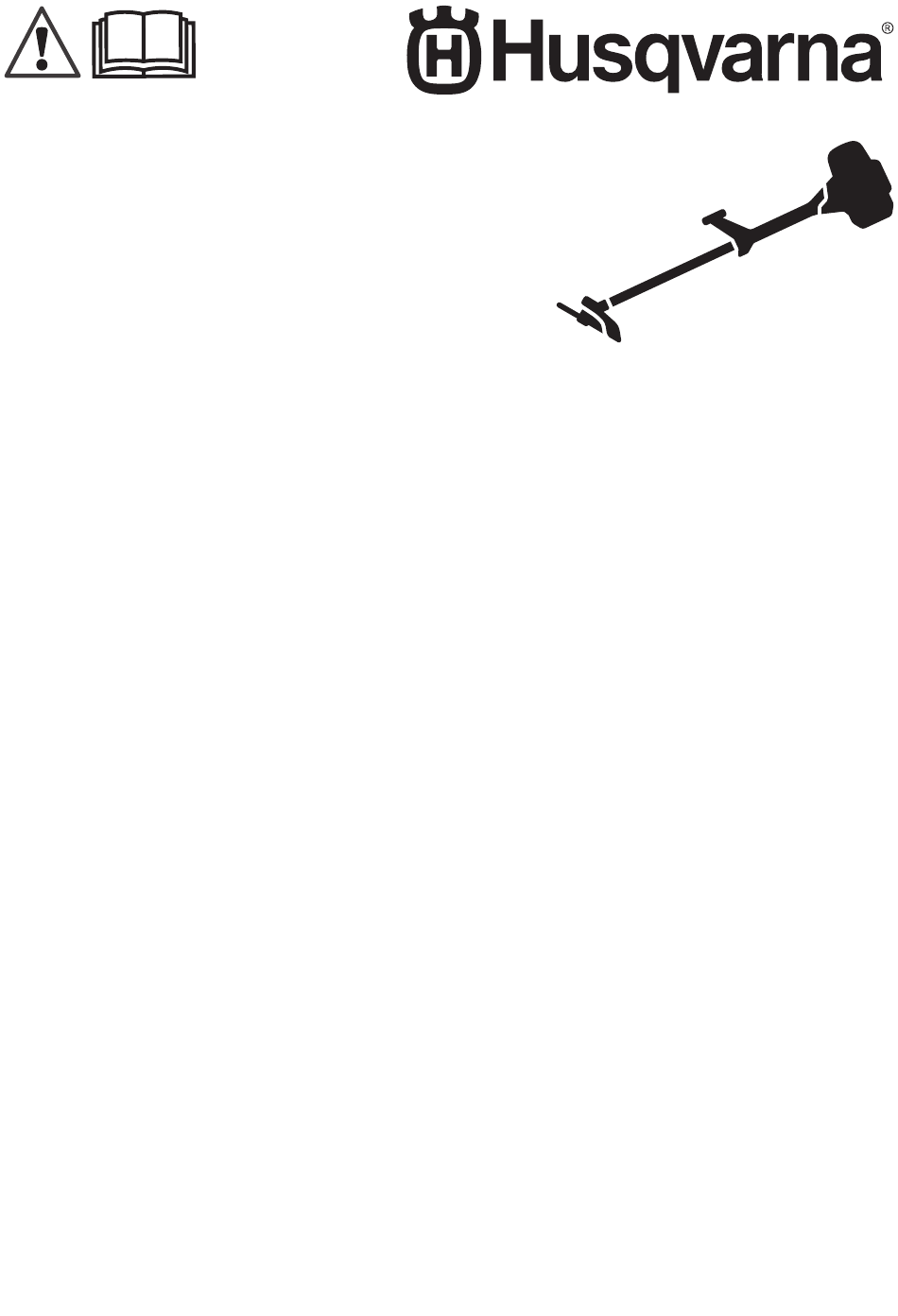

  • Page 1 135R, 336FR, 336RK Operator's manual 2-28...

  • Page 2: Table Of Contents

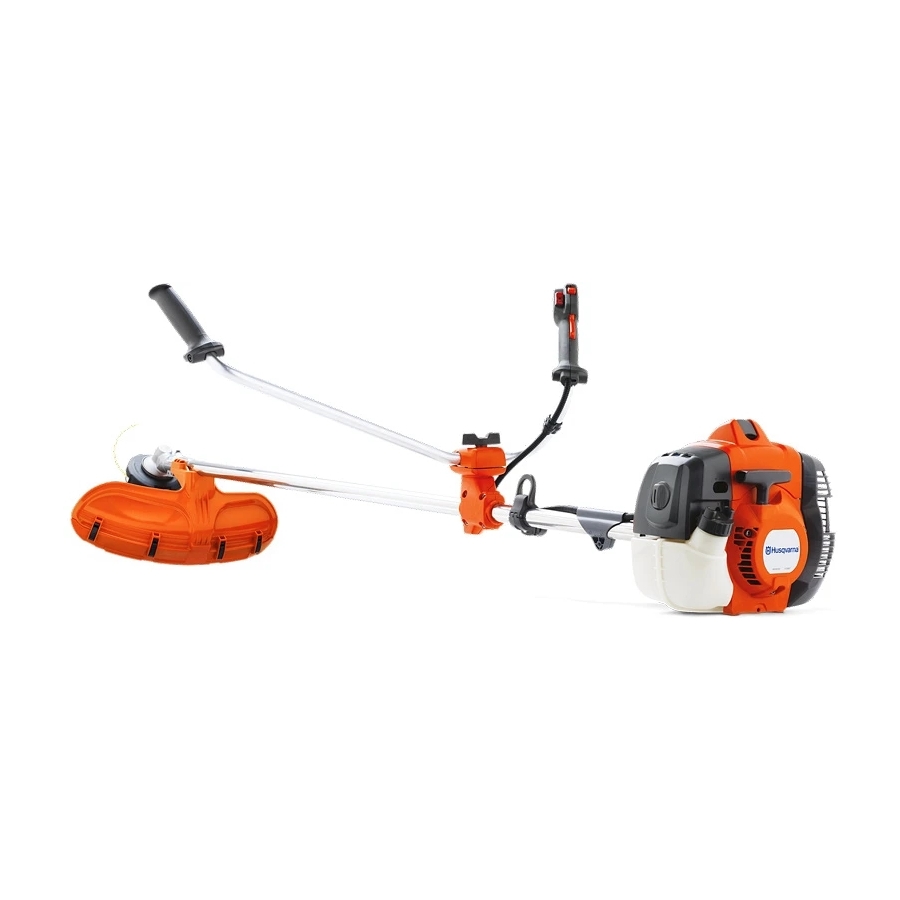

    Accessories on page 26 . by the manufacturer. Refer to trimmer head to cut different types of vegetation. Do not Product overview 336FRD 336FR 135R 1. Trimmer head 4. Cutting attachment guard 2. Grease filler cap, bevel gear 5. Shaft 3. Bevel gear 6.
  • Page 3 7. Throttle trigger Keep a minimum distance of 15 m / 50 ft. to 8. Stop switch persons and animals during operation of the 9. Throttle trigger lockout product. 10. Suspension ring 11. Cylinder cover Risk of blade thrust if the cutting equipment touches an object that it does not 12.

  • Page 4: Safety

    • the product is repaired with parts that are not from • the product is not repaired at an approved service the manufacturer or not approved by the center or by an approved authority. manufacturer. • the product has an accessory that is not from the manufacturer or not approved by the manufacturer.
  • Page 5 • Never use a product that is faulty. Carry out the • Make sure that persons or animals keep a distance safety checks, maintenance and service instructions of a minimum of 15 m/50 ft during work. Always look described in this manual. Some maintenance and behind you before you turn around with the product.
  • Page 6 • Never allow children to use or be in the vicinity of the • Always use approved personal protective equipment product. As the product is equipped with a spring- when you use the product. Personal protective loaded stop switch and can be started by low speed equipment cannot fully prevent injury but it and force on the starter handle, even small children decreases the degree of injury if an accident does...
  • Page 7 Do a check of and do maintenance on the safety devices regularly. If the safety devices are defective, 4. Start the product and apply full throttle. Refer to speak to your Husqvarna service agent. Product overview on page 2 . •...
  • Page 8 1. Stop the engine. WARNING: The muffler becomes very hot 2. Do a visual check for damages, for example cracks. during and after operation and also at idle speed. Use protective gloves to prevent burn injuries. The muffler keeps noise levels to a minimum and points exhaust fumes away from the operator.
  • Page 9 • To attach the locknut, turn the locknut in the opposite • Make sure that the cutter on the cutting attachment direction from the direction of rotation. guard is not damaged. • Soak the grass trimmer line in water for 2 days before you attach the grass trimmer line to the product.

  • Page 10: Assembly

    • Stop the engine, make sure that the cutting • Let an approved Husqvarna service agent do attachment stops and let the product cool down servicing on the product regularly. before you do the maintenance.
  • Page 11 5. Tighten the knob fully. 2. Push and hold the button (C). 3. Hold tight in the end of the shaft that the engine is To assemble the two-piece shaft attached to. 1. Turn the knob to loosen the coupling. 4.
  • Page 12 To remove the guard extension 6. Make sure that the drive disc and support flange engages correctly in the centre hole of the grass • Release the locking hooks with the spark plug blade. wrench. 7. Attach the nut (G). 8.

  • Page 13: Operation

    To assemble the guard and trimmer head/ 6. Turn the output shaft until 1 of the holes in the drive disc aligns with the related hole in the gear housing. plastic blades 7. Put the locking pin (C) in the hole to lock the shaft. 8.
  • Page 14 Two-stroke oil • For best results and performance use Husqvarna two-stroke oil. • If Husqvarna two-stroke oil is not available, use a two-stroke oil of good quality for air-cooled engines. Speak to your servicing dealer to select the correct oil. •...
  • Page 15 To mix gasoline and two-stroke oil 3. Remove the fuel tank cap and fill the fuel tank. 4. Tighten the fuel tank cap carefully. Gasoline, liter Two-stroke oil, 5. Move the product 3 m/10 ft or more away from the liter refueling area and fuel source before you start the 2% (50:1)
  • Page 16 To prepare for grass clearing 2. Set the choke control in the choke position. 1. Apply support to the product with the harness during grass clearing. 2. Make sure that the cutting equipment is parallel to the ground. Correct balance of the product For forestry clearing, the product is correctly balanced when it freely hangs horizontally from the suspension point.
  • Page 17 3. Tilt the saw blade and push it with force diagonally WARNING: Do not use the product with a up and to the right. At the same time, push the tree damaged spark plug cap to prevent with the blade guard. electrical shock.
  • Page 18 Grass trimming with a trimmer head 4. Cut through the tree from the other side. To trim the grass 1. Hold the trimmer head immediately above the ground at an angle. Do not push the trimmer line into the grass. CAUTION: If the saw blade becomes 2.

  • Page 19: Maintenance

    To cut the grass To sweep the grass 1. Make sure that the trimmer line is parallel to the The airflow from the rotating trimmer line can be used to remove cut grass from an area. ground when you cut the grass. 1.
  • Page 20 To adjust the idle speed 1. Make sure that the air filter is clean and that the air filter cover is attached to the product. Your Husqvarna product is made to specifications that decrease harmful emissions. At an interval of 6 months.
  • Page 21 To do a check of the muffler 2. Turn the idle speed screw (T) clockwise until the cutting attachment starts to turn. WARNING: Do not use a product that has a defective muffler or a muffler that is in bad condition.
  • Page 22 To apply oil to the air filter sure that the bevel gear is 3/4 full of grease. Use Husqvarna special grease. CAUTION: Always use Husqvarna special air-filter oil. Do not use other types of oil. WARNING: Put on protective gloves. The air-filter oil can cause skin irritation.
  • Page 23 To lubricate the two-piece shaft • Make sure that the product and blade has sufficient support when you sharpen it. • Apply grease to the end of the drive shaft after each 30 hours of operation. To do a check of the spark plug •...

  • Page 24: Troubleshooting

    WARNING: Always discard a blade that is damaged. Do not try to make a bent or twisted blade straight and use it again. Troubleshooting The engine starts but stops again Product part to examine Possible cause Action Fuel tank Incorrect fuel type. Drain the fuel tank and fill with cor- rect fuel.

  • Page 25: Technical Data

    • Attach the product safely during transportation. Technical data 135R 336FR 336RK Engine Cylinder displacement, cm 34.6 34.6 34.6 Idle speed, rpm 2900 2900 2900 Speed of output shaft, rpm 8220 8220 8220 Maximum engine power acc. to ISO 8893, kW/hp @ 1.4/1.9 @ 8400...

  • Page 26: Accessories

    135R 336FR 336RK Vibration levels Equivalent vibration levels (a ) at handles, measured according to EN ISO 11806 and ISO 22867, m/s hv,eq Equipped with trimmer 2.4/2.1 2.3/2.2 3.5/5.0 head (original), left/right Equipped with grass blade 2.9/2.5 2.8/2.5 4.3/2.9 (original), left/right Equipped with saw blade 3.7/2.7...
  • Page 27 Attachments Art No. Use with Clearing saw attachment with CSA 967 02 69-01 336RK 850 shaft. Trimmer attachment with shaft GTA 967 11 31-01 336RK 975 - 001 - 26.09.2019...

  • Page 28: Ec Declaration Of Conformity

    11/2289 - 336RK SMP Svensk Maskinprovning AB has also verified agreement with appendix V of the council’s directive 2000/14/EG. The certificate has the number: 01/164/069 - 135R, 01/164/069 - 336FR, 01/164/078 - 336RK Huskvarna March 30, 2016 Per Gustafsson, Development manager (authorized representative for Husqvarna AB and responsible for technical documentation.)
  • Page 29 975 - 001 - 26.09.2019...
  • Page 30 975 - 001 - 26.09.2019...
  • Page 31 975 - 001 - 26.09.2019...
  • Page 32 Original instructions 1155638-26 2019-10-08...
