INSTALLATION INSTRUCTIONS

BEFORE YOU BEGIN

All information is based on the latest product information available at the time of publication. Kohler Co.
reserves the right to make changes in product characteristics, packaging, or availability at any time without
notice.
Please leave these instructions for the consumer. They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove any debris.
2. Do not remove the plaster guard from the valve body until instructed to.
3. Install valve 880A (or 98309A-CP for NZ) according to the rough-in dimensions of 37336A-4. Install valve
882A (or 98310A-CP for NZ) according to the rough-in dimensions of 37335A-4. For additional valve
installation instructions refer to the 40mm valve install guide (1071635-AN2-A).
4. All installations should comply with the relevant requirements of AS/NZS 3500.
5. 37335A-4 and 37336A-4 are trim only. The mixing valve is sold separately.

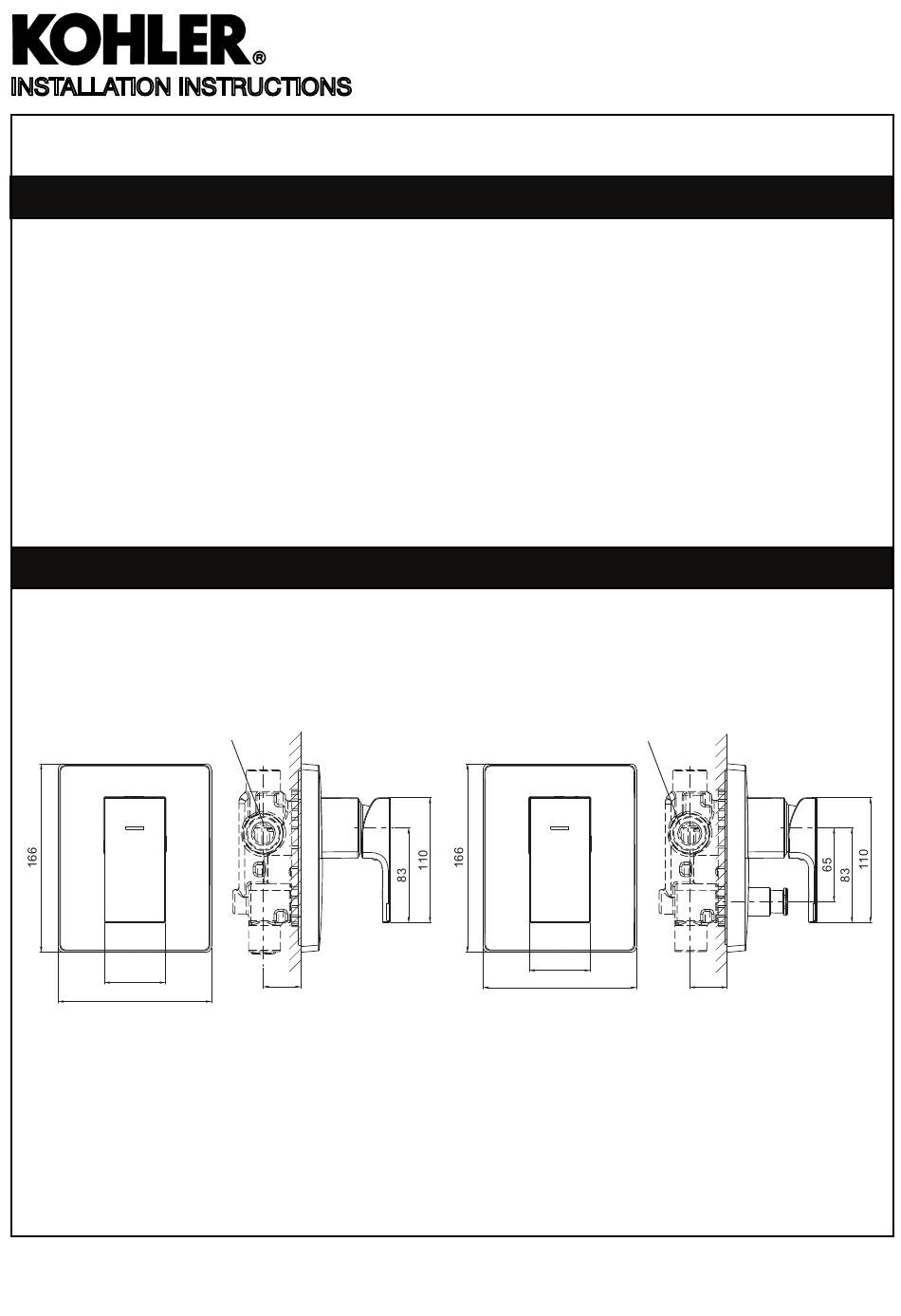

ROUGH-IN DIMENSIONS

54
135
1154953-AN2-A 15/10/12
Rc 1/2" inlet
& outlet ports
Finished Wall
32~42
or 40~49
37336A-4
SHOWER / BATH TAPWARE
Wall Mount Single Lever Mixers
Bath / Shower mixer with diverter:
Bath / Shower mixer without diverter:
Rc 1/2" inlet
& outlet ports
54
135
37335A-4
1
STRAYT
37335A-4
37336A-4
Finished Wall
32~42
or 40~49
