GE MRV-S Series Installation Instructions page 2

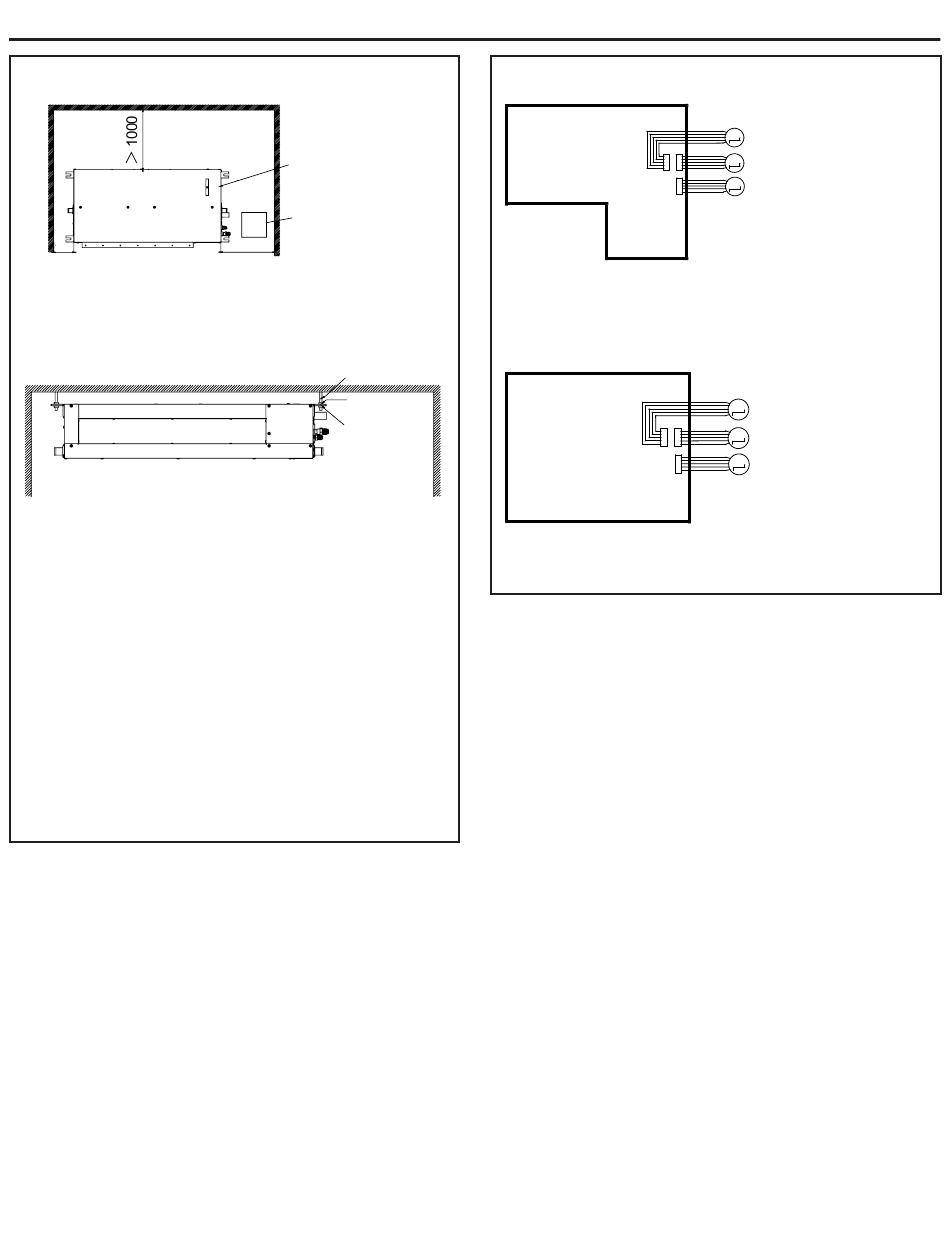

5. Minimum Clearances
39-3/8
>100
If the unit location is not readily accessible, provide a 24"
X 24" (610 mm X 610 mm) service access panel per local
code.
Installation
A
Install the unit level to the building structure, using 3/8"
threaded rods, washers, and nuts.
If a gravity drain is preferred, slope the cabinet 1/4"
toward the drain end.
6. Connecting Plenum to Indoor Unit
A. Direct Connection
Use M4x3/8 sheet metal screws. Holes on the panel will
match the holes on the unit.
B. Connection to Ducts
Use the holes in the panel and the unit to attach the
ductwork. Use M4x3/8 screws. All ducts must be sealed
and insulated.
Installation Instructions
electrical box
accessing opening
4 qty. 3/8 hanging bolts
16 qty
3/8 nuts
8 qty
3/8 washer
B
7. Swing Motor Wiring, FlexFit Models
INDOOR UNIT PCB
Connect up/down swing motors to CN15 and CN16.
The left/right swing motor goes to CN14.
8. Swing Motor Wiring, MRV-S Models
INDOOR UNIT PCB
Connect up/down swing motors to CN11 and CN11-1.
The left/right swing motor goes to CN35
2
M
SWING MOTOR-UP/DOWN
CN16 CN15
M
SWING MOTOR-UP/DOWN
CN14
M
SWING MOTOR-LEFT/RIGHT
M
SWING MOTOR-UP/DOWN
CN11-1 CN11
M
SWING MOTOR-UP/DOWN
CN35
M
SWING MOTOR-LEFT/RIGHT
31-5000441 Rev. 0 09-19 GEA
