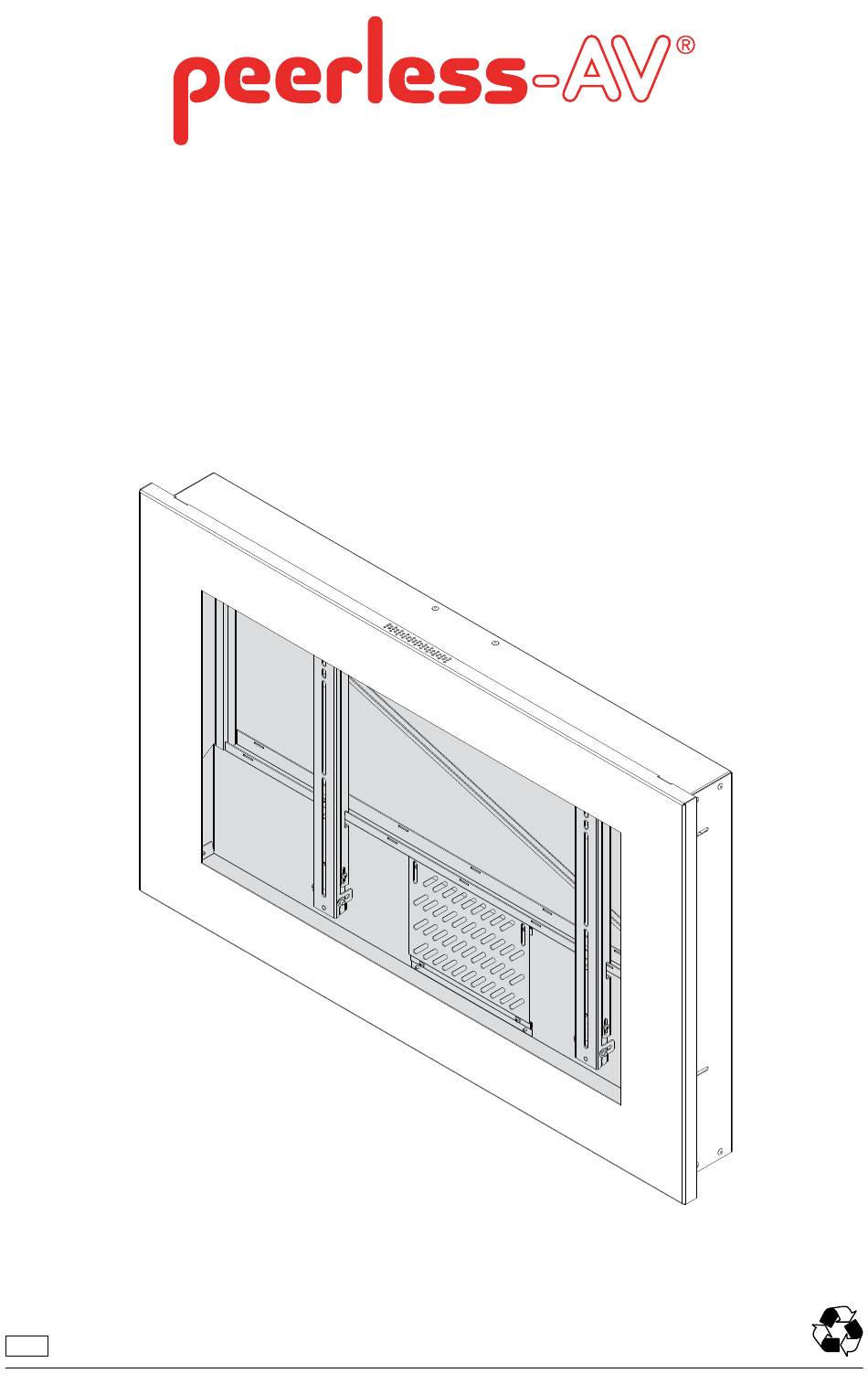

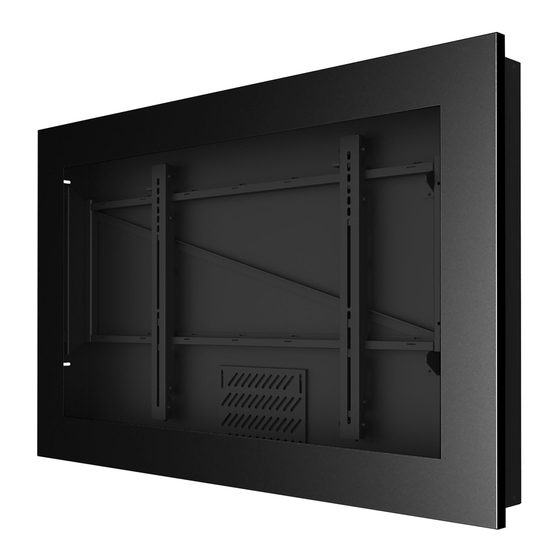

- Page 1 2015-04-28 #:150-9053-3 (2017-07-12)
- Page 2 WARNING ENG - Do not begin to install product until you have read and understood the instructions and warnings contained in this user guide. This product is designed to be installed on wood stud walls. Hardware is included for wood stud installation.
- Page 3 Tools Needed for Assembly. ENG To properly tighten screws: Tighten until screw head makes contact, then tighten another 1/2 turn. Do not overtighten screws. +1/2 5/32" (4mm) 3/8" (10mm) 2015-04-28 #:150-9053-3 (2017-07-12)
- Page 4 Parts (Before beginning, make sure you have all parts shown below). Parts List KIL740 KIL742 KIL743 KIL746 KIL747 KIL740-S KIL742-S KIL743-S KIL746-S KIL747-S Description Part # Part # Part# Part # Part # A back assembly 150-T1685 150-T1686 150-T1686 150-T1683...
- Page 5 A ( 1 ) B (4) C (4) D (4) M5 x 12 mm M5 x 25 mm M6 x 12 mm back assembly E (4) F (4) M6 x 25 mm M8 x 12 mm G (4) H (4) L ( 1 ) M5/M4/M6 washer M8 x 25 mm...
- Page 6 2" x 4" nominal size. Do not install over gypsum board thicker than 5/8". Use stud finder to locate and mark stud center lines. KIL740, KIL742, KIL743 XX = 43.25", YY = 27.5" KIL746, KIL747, KIL748 XX = 48.25", YY = 30.25"...
- Page 7 Level wallplate. Mark mounting holes on stud. 2.5" (64mm) 5/32" 5/32" (4mm) (4mm) Drill mounting holes into supporting surface (2.5" (64 mm) minimum depth required). 2015-04-28 #:150-9053-3 (2017-07-12)
- Page 8 Level wallplate. Install using wood screws provided. 3/8" (10mm) Maximum 80 in. • lb (9 N.M.). M (4) 2015-04-28 #:150-9053-3 (2017-07-12)
- Page 9 Center adapter brackets vertically on back of screen. N (2) ENG Use of spacers is optional. H (4) C (4) B (4) D (4) H (4) H (4) I (4) E (4) F (4) G (4) H (4) I (4) I (4) 2015-04-28 #:150-9053-3...
- Page 10 Note: Mounting Arm swings out to access adapter brackets and behind display 2015-04-28 #:150-9053-3 (2017-07-12)
- Page 11 2015-04-28 #:150-9053-3 (2017-07-12)
- Page 12 J (2) KIL740, KIL740-S, KIL742, KIL742-S, KIL743, KIL743-S, KIL746, KIL746-S, KIL747, KIL747-S, KIL748, KIL748-S, KIL749, KIL749-S, KIL755, KIL755-S, 2015-04-28 #:150-9053-3 (2017-07-12)
- Page 13 This page intentionally left blank. 2015-04-28 #:150-9053-3 (2017-07-12)
- Page 14 This page intentionally left blank. 2015-04-28 #:150-9053-3 (2017-07-12)
- Page 15 LIMITED FIVE-YEAR WARRANTY Peerless Industries, Inc. (“Peerless”) warrants to original end-users of Peerless products will be free from defects in material and ® workmanship, under normal use, for a period of five years from the date of purchase by the original end-user (but in no case longer than six years after the date of the product's manufacture).
- Page 16 Peerless-AV Peerless-AV Europe Peerless-AV de Mexico 2300 White Oak Circle Unit 3 Watford Interchange, Ave de las Industrias 413 Aurora, IL 60502 Colonial Way, Watford, Herts, Parque Industrial Escobedo Email: tech@peerlessmounts.com WD24 4WP, United Kingdom Escobedo N.L Mexico 66062 Ph: (800) 865-2112...
