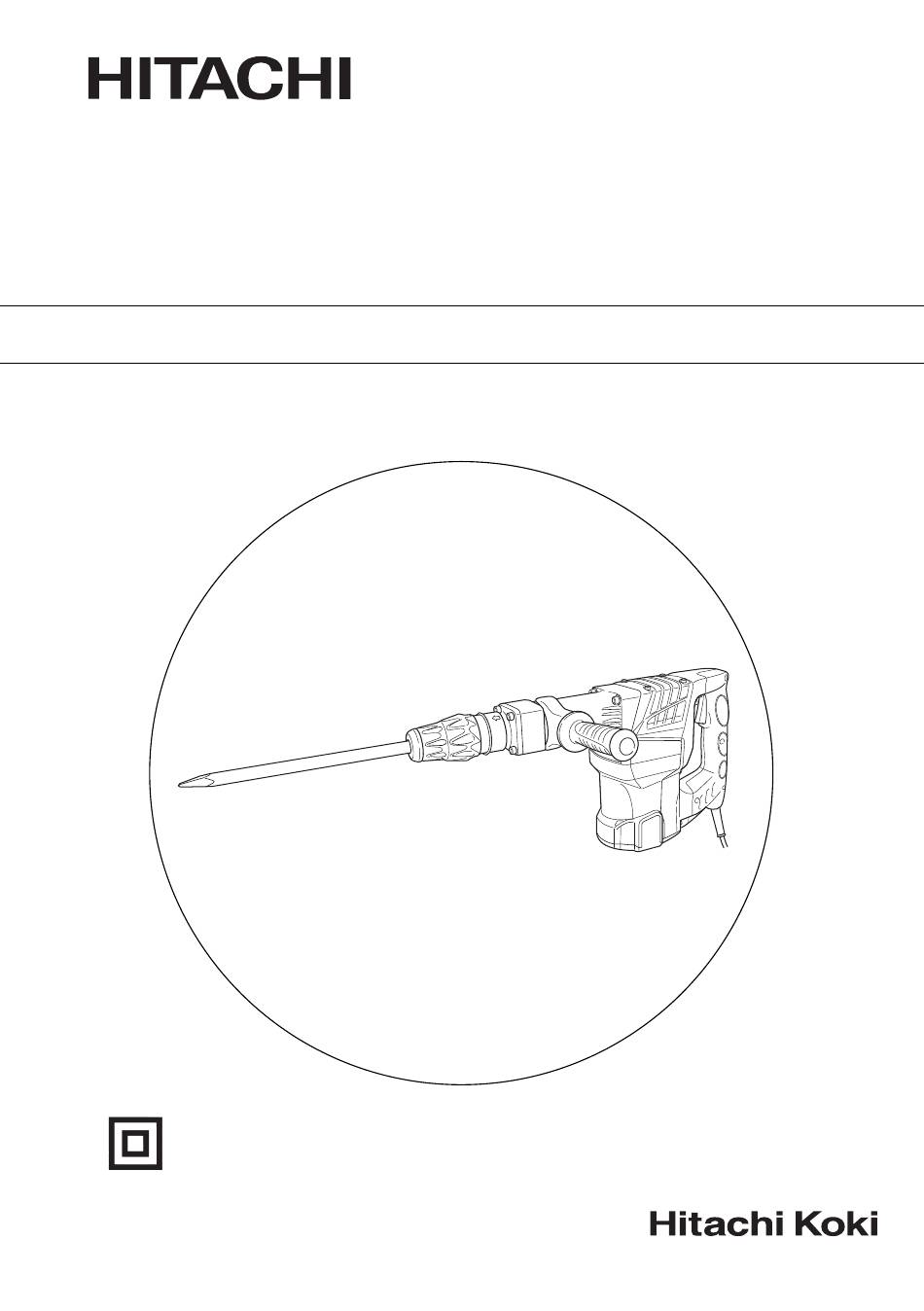

Demolition Hammer 電動鎚 파괴햄머 H 60MC Handling instructions 使用說明書 취급 설명서 Read through carefully and understand these instructions before use. 使用前務請詳加閱讀。 본 설명서를 자세히 읽고 내용을 숙지한 뒤 제품을 사용하십시오.
Page 3
17 mm 7 mm English 한국어 中國語 Tool shank 툴 섕크 工具柄 Front cap 프런트 캡 前帽 Grip (A) 그립 (A) 夾持器 (A) Grip (B) 그립 (B) 夾持器 (B ) Side handle 사이드 핸들 側柄 Grip 그립 夾持器 Crank cover 크랭크...
English d) Remove any adjusting key or wrench before GENERAL SAFETY RULES turning the power tool on. A wrench or a key left attached to a rotating part of WARNING! the power tool may result in personal injury. Read all instructions e) Do not overreach.
English 4. Before starting to break, chip or drill into a wall, fl oor or DEMOLITION HAMMER SAFETY WARNINGS ceiling, thoroughly confi rm that such items as electric cables or conduits are not buried inside. 1. Wear ear protectors 5. Wear a mask when turning your head upward. Exposure to noise can cause hearing loss.
At this time, do not damage or lose the oil seal. For bar type handle NOTE The Hitachi Electric Hammer Grease A is of the Fixing the side handle (Fig. 4). low viscosity type. When the grease is consumed, (1) Rotate the side handle in a clockwise direction to...
Page 7
6. Service parts list CAUTION Repair, modifi cation and inspection of Hitachi Power Tools must be carried out by a Hitachi Authorized Service Center. This Parts List will be helpful if presented with the tool to the Hitachi Authorized Service Center when requesting repair or other maintenance.
Page 12
한국어 d) 전원을 켜기 전에 조정 키 또는 렌치를 반드시 제거 일반적인 안전 수칙 해야 합니다. 전동 툴의 회전 부위에 키 또는 렌치가 부착되어 있으 경고! 면, 부상을 입을 수 있습니다. 설명서를 자세히 읽으십시오. e) 작업 대상과의 거리를 잘 조절하십시오. 알맞은 발판 설명서의...
Page 13
한국어 4. 벽, 바닥, 천장 등을 부수거나 깎거나 구멍을 뚫기 전에, 철거 해머 안전 경고 전기선이나 배관 같은 것이 묻혀 있지 않은지 철저히 확 인하십시오. 1. 귀 보호 장구를 착용하십시오. 5. 고개를 위로 들 때 마스크를 착용하십시오. 소음으로 인해 청력을 잃을 수 있습니다. 6.
Page 14
를 원하는 위치로 자유롭게 변경할 수 있습니다. 아냅니다. (그림 10 참조) (2) 그립 (B)를 놓고 공구를 돌려 완전히 고정시키십시오. (2) Hitachi 전동햄머 윤활제 A 76g(커넥팅 로드를 커버하 6. 공구 제거 는데 필요한 표준 분량)을 크랭크 케이스에 보충합니다. 그림 1과 같이, 그립 (A)를 잡아당기고 공구를 잡아당겨...
Page 15
한국어 6. 서비스 부품 정보 주의 Hitachi 전동 툴의 수리, 변경 및 검사는 반드시 공식 Hitachi 서비스 센터를 통해서 해야 합니다. 공식 Hitachi 서비스 센터에 수리 또는 기타 점검을 요청 할 때 툴과 함께 부품 정보를 제공하면 도움이 됩니다. 전동 툴을 사용하거나 점검할 때는 각국의 안전 수칙 및...
Page 17
Item Item Part Name Q’TY Part Name Q’TY BRUSH HOLDER FRONT CAP GRIP (A) HEX. SOCKET SET SCREW M5 × 8 BEARING HOLDER RING TAPPING SCREW (W/FLANGE) D4 × 16 NEEDLE HOLDER SPRING (A) DUST SEAL TAIL COVER STOPPER RING TAPPING SCREW (W/FLANGE) D5 ×...
Page 20
Hitachi Koki Co., Ltd. Code No. C99193631 M Printed in Malaysia...
