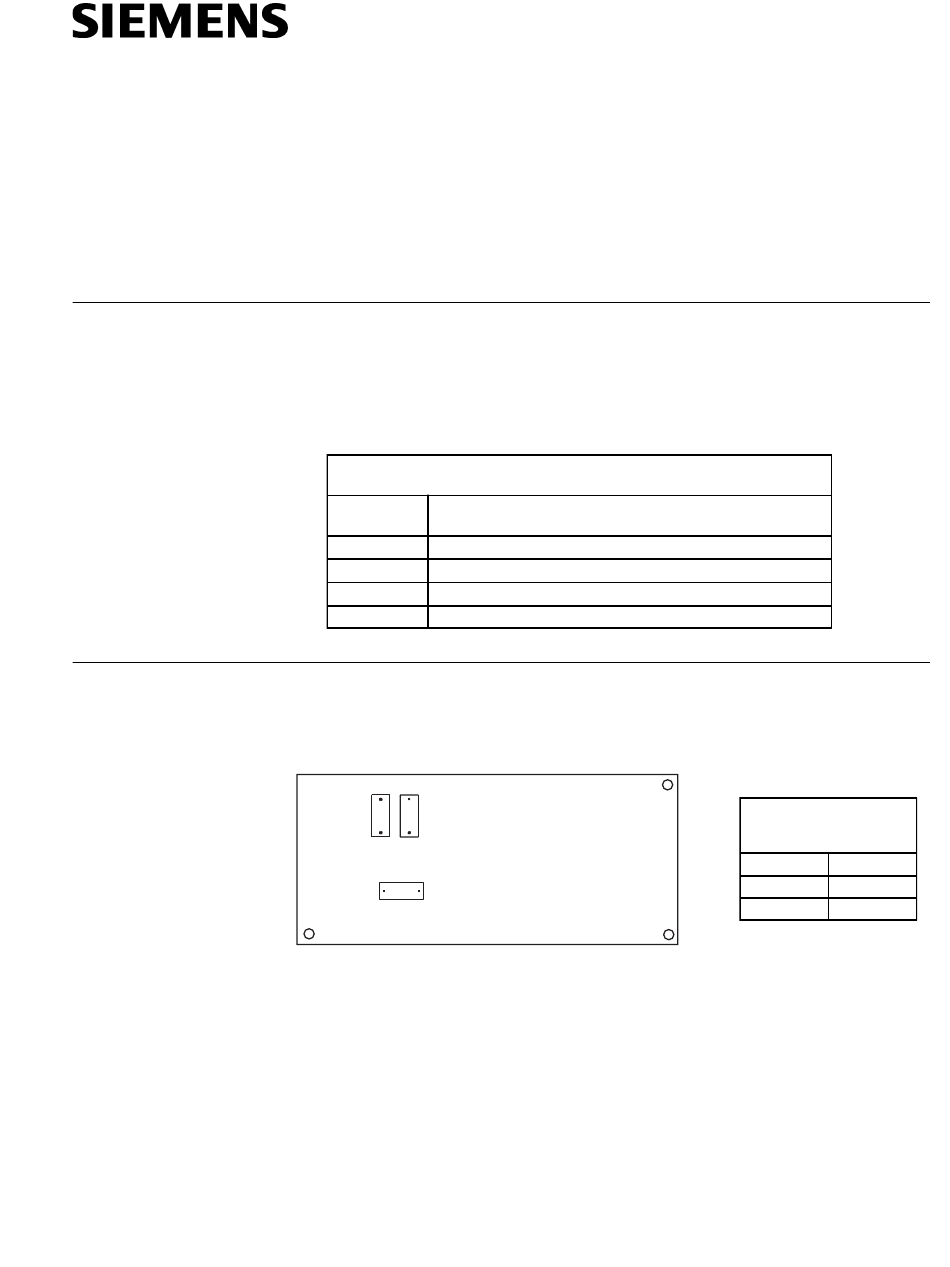

Installation Instructions
Model Modem Block
Modem Block Module For HUB-4
INTRODUCTION
PRE-INSTALLATION
P/N 315-099356-2
The SIEMENS Modem Block module is a component of the HUB-4 assembly. Each
Modem Block module provides 1 independent data channel. The HUB-4 can support
up to 4 independent data channels. The Modem Block module mounts on the HUB-4,
COM-2 board, which in turn mounts on the HUB -4 Main-2 board. Refer to the table
below to determine the required modules for the desired configuration.
Number of
Channels
1
1 HUB-4 Main-2, 1 HUB-4 COM-2, 1 Modem Block
2
1 HUB-4 Main-2, 1 HUB-4 COM-2, 2 Modem Blocks
3
1 HUB-4 Main-2, 2 HUB-4 COM-2, 3 Modem Blocks
4
1 HUB-4 Main-2, 2 HUB-4 COM-2, 4 Modem Blocks
The Modem Block module has three configuration jumpers: JP1, JP2, and JP3. Refer
to Figure 1 for the location of the jumpers. Set the jumpers to the configuration
shown in Table 2.
JP2
JP3
JP1
NOTE:
"ON" IS WHEN THE JUMPER
IS IN THE PROPER POSITION
OVER PLUGS JP1, JP2, OR JP3.
Figure 1
Module Block Module
TABLE 1
HUB-4 CONFIGURATION
Required Modules
MODEM BLOCK
Siemens Building Technologies
TABLE 2
MODEM BLOCK
JUMPER SETTINGS
JP1
ON
JP2
OFF
JP3
OFF
Fire Safety
Advertisement
Table of Contents
Related Manuals for Siemens Modem Block
Summary of Contents for Siemens Modem Block
- Page 1 Modem Block module provides 1 independent data channel. The HUB-4 can support up to 4 independent data channels. The Modem Block module mounts on the HUB-4, COM-2 board, which in turn mounts on the HUB -4 Main-2 board. Refer to the table below to determine the required modules for the desired configuration.
- Page 2 Disconnect BATTERY and AC prior to working on equipment. Mounting Each Modem Block module mounts to a HUB-4, COM-2 with the 3 nylon spacers, 3 nylon screws, and 3 nylon washers provided. One HUB-4, COM-2 board can accom- modate up to 2 Modem Block modules.
