IR Speaker Installation Instructions

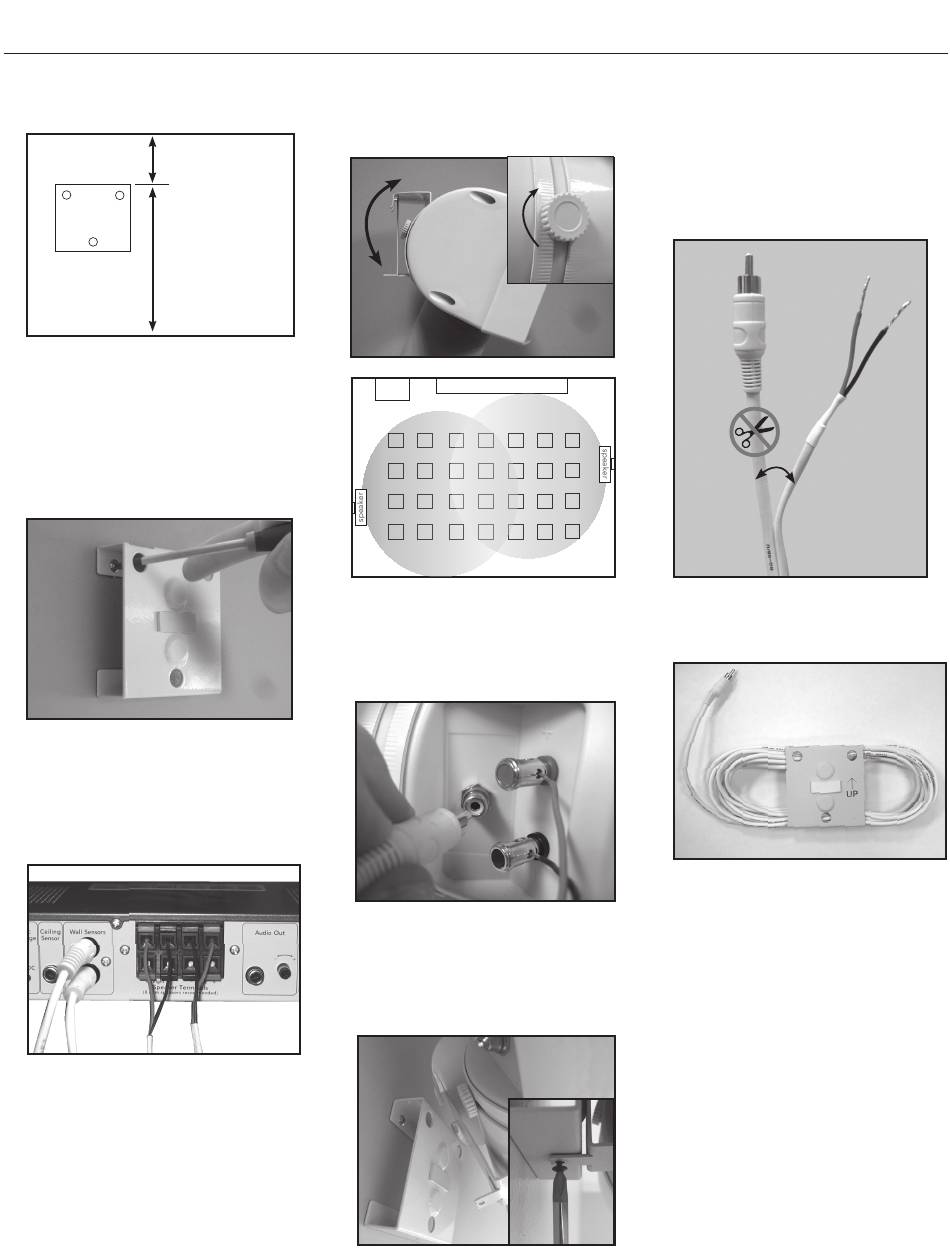

1. Mark drill holes using template from
speaker box
ceiling
5in. (13cm) min.
height from ceiling
7.5 to 10ft
(2.3 to 3.0m)
floor
2. Mount wall plate
note: Use the recommended
fasteners for your wall type. If the
recommended fasteners cannot be
used, any alternate fastener must
be rated to support 60 lbs or more.
3. Attach cables to receiver
note: Remember to connect one
speaker to the LEFT channel and
one to the RIGHT channel.

4. Run cable to speaker locations

note: The cable is UL listed. If
there is any excess cable, it can be
safely stored in the plenum space.
If there is no plenum space see
instructions, "TRIMMING COMBO
CABLE" at right.
5. Angle speaker toward the center of
the closest half of the classroom.
Tighten knob.
chalkboard
940R
Classroom top view

6. Attach cables

7. Attach speaker to wall plate and
install set screw.
(cont'd)

tRImmIng combo cable

1. Measure combo cable to length.
2. Split combo cable and cut speaker
cable onlY.
Do not cut sensor cable.
Sensor
Cable
3. Coil excess sensor cable and place
in wall plate.
Speaker
Cable
