Summary of Contents for Alpine PXE-X09

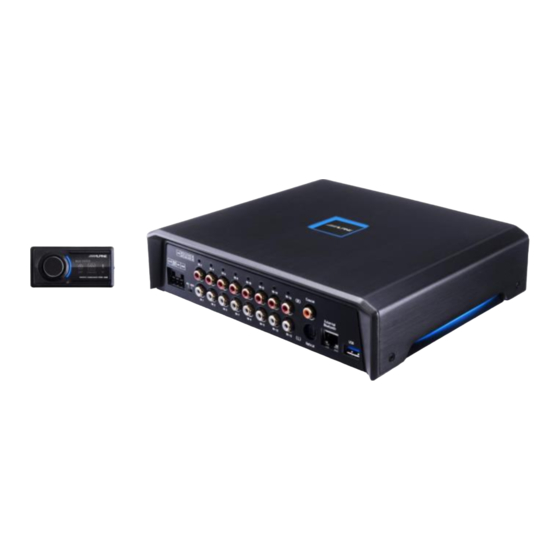

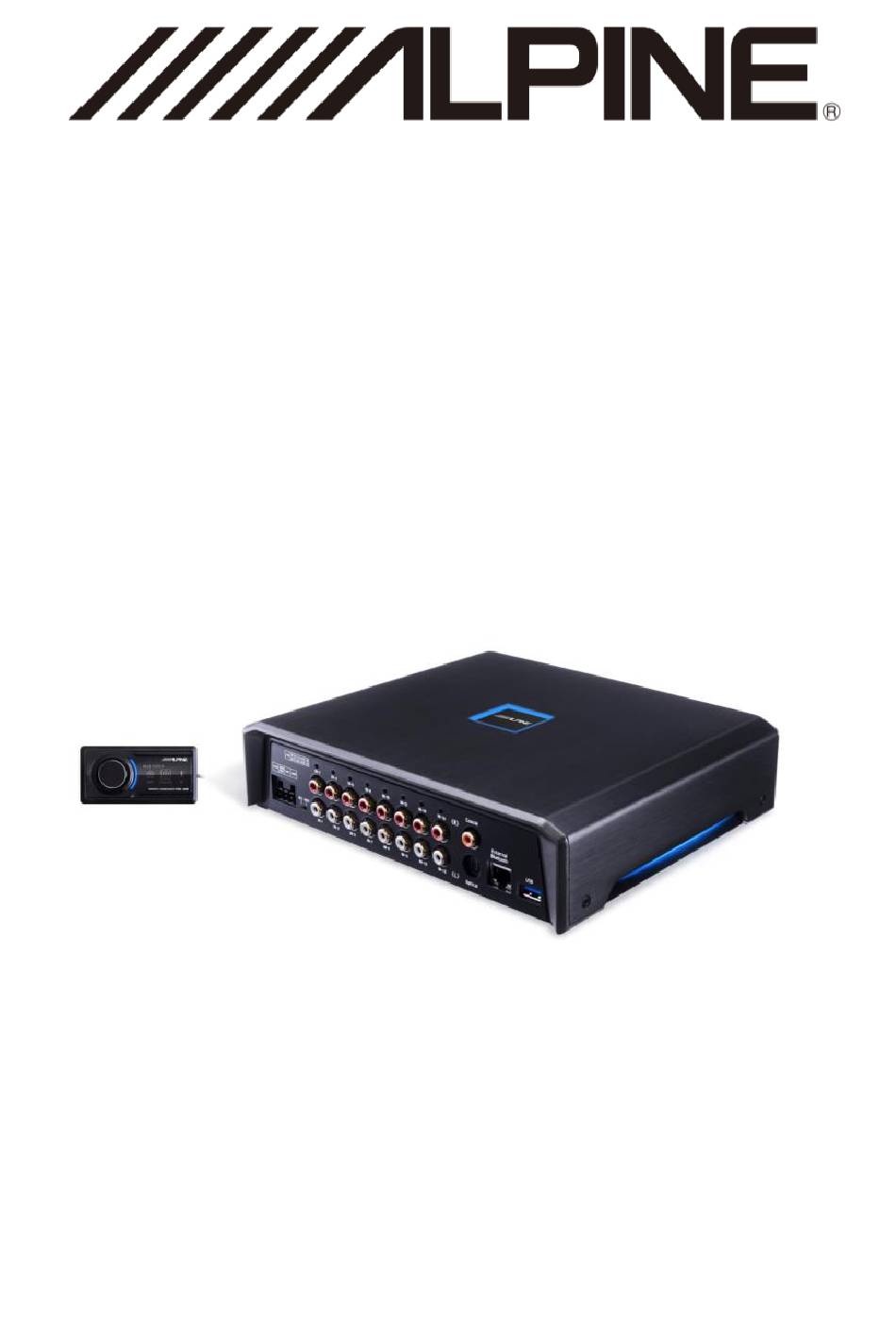

- Page 1 16-Channel High Sound Quality Audio Processor PXE-X09...
-
Page 2: Table Of Contents
Contents Operating Instructions Input type selection ......... 15 Output type selection ........18 Crossover setup ..........20 Warning ............. 1 Channel EQ setup ........... 20 Caution .............. 1 Equalizer setup ..........21 Setting channel phase and volume ....21 Information to Be Known before Reading Channel debugging setting ...... -
Page 3: Operating Instructions
PRODUCT CLEANING APPEARS. Use a soft dry cloth for periodic cleaning of the Please return the device to your authorized Alpine dealer Product. For more severe stains, please dampen or the nearest Alpine Service Center for repairing. the cloth with water only. Anything else has the... -
Page 4: Information To Be Known Before Reading
Information to Be Known before Reading You may use PXE-X09 mobile phone software or computer software to tune and set up the PXE-X09 device. As these two modes have different ways of control, they are described in separate sections. The specific list... -
Page 5: Introduction To The Device
Introduction to the Device 1. Diagram of the connectors... -
Page 6: Introduction To The Connectors And Functions
Note: Please choose the coaxial cable with impedance of 75 Ω. ⑭ External Bluetooth connector Bluetooth can be used to play non-destructive music and connect PXE-X09 mobile phone tuning software. When the Bluetooth connection succeeds, the Bluetooth indicator will remain ON. -
Page 7: Mobile Phone Software Operation Instructions
Mobile Phone Software Mobile Phone Software Operation Instructions An iPhone user may search PXE-X09 Tuning App in the APP Store to download and install it; an Android user may directly scan the QR Code on the front cover to download and install it. -
Page 8: Input Type Selection
Mobile Phone Software d. Choose [Output Debugging Setting] to set the output functions to be 1. High level input selection Stereo in the front sound field (2CH): debugged, where six options are available, i.e. Channel EQ, Input 1 and 2 are front left and right full-range speakers. Crossover, Channel Delay, Channel Phase, Channel Volume and (2) 4-channel full range (4CH): Input 1 and 2 are front left and right full-range speakers;... - Page 9 Mobile Phone Software (11) Front 2-way active crossover + rear full range + front middle + (17) Front 2-way active crossover + rear 2-way active crossover + left and right subwoofers (9CH): front middle + rear middle + left and right subwoofers (12CH): Input 1 and 2 are front left and right high-frequency speakers;...
-
Page 10: Output Type Selection
Mobile Phone Software Input 5 and 6 are front left and right low-frequency speakers; (1) High and low level input switching: Click [HI] or [AUX] to switch Input 7 and 8 are rear left and right high-frequency speakers; between high and low levels (the green triangle symbol means that Input 9 and 10 are rear left and right medium-frequency speakers;... - Page 11 Mobile Phone Software Stereo in the front sound field (2CH): 11. Front 2-way active crossover + rear full range + front middle + Output 1 and 2 are front left and right full-range speakers. left and right subwoofers (9CH): 4-channel full range (4CH): Output 1 and 2 are front left and right high-frequency speakers;...
-
Page 12: Crossover Setup
Mobile Phone Software 17. Front 2-way active crossover + rear 2-way active crossover + Output 9 and 10 are rear left and right medium-frequency speakers; front middle + rear middle + left and right subwoofers (12CH): Output 11 and 12 are rear left and right low-frequency speakers; Output 1 and 2 are front left and right high-frequency speakers;... -
Page 13: Channel Eq Setup
Mobile Phone Software Channel EQ setup Equalizer setup 1. When adjusting EQ, the “Pass through Equalizer” button 1. Input EQ Edit section “ appears. Input EQ has two interfaces: “Graphic Equalizer” and Parametric Equalizer”. 2. Pass through Equalizer: When the channel equalizer turns on, the button [ ] shows up. -
Page 14: Channel Debugging Setting
Mobile Phone Software Channel debugging setting Setting the master volume From the options, choose the input and output functions to be debugged jointly. and audio source The output signal master volume adjustment, audio source selection and display sections. 1. Adjusting the master volume: Drag the Click the debugging button [ ]. -
Page 15: Computer Software Operation Instructions
Computer Software Operation Instructions This function may be used by the manufacturer and dealers only. After installing the PXE-X09 software on a computer, you may tune and set up the PXE-X09 unit from the computer. Software installation precautions The software may be used in the Microsoft® Windows® system only. -
Page 16: Connections
Computer Software Homepage (data files of the whole unit include all data Connections such as current working scenario, preset scenarios of the unit, and output channel configuration data), i.e. duplicating all data of the previously debugged unit to the unit 1. -
Page 17: Input Type Selection
Computer Software When the dialog box pops up, enter a 6-digit password to encrypt the well-tuned sound effect data. The data to be encrypted include EQ frequency, Q value and gain as well as delay, channel, corresponding equalizer and other tuning data. Only the currently used set of sound effect data is encrypted. - Page 18 Computer Software (5) 4-channel full range + left and right subwoofer (6CH): Input 3 and 4 are front left and right medium-frequency speakers; Input 1 and 2 are front left and right full-range speakers; Input 5 and 6 are front left and right low-frequency speakers; Input 3 and 4 are rear left and right full-range speakers;...
- Page 19 Computer Software (18) Front 3-way active crossover + rear 2-way active crossover + (22) Front 3-way active crossover + rear 3-way active crossover + front middle + left and right subwoofers (13CH): front middle + rear middle + left and right subwoofers (16CH): Input 1 and 2 are front left and right high-frequency speakers;...
-
Page 20: Output Type Selection
Computer Software The front options are high-frequency, Front 2-way active crossover + rear full range (6CH): medium-frequency, low-frequency, Output 1 and 2 are front left and right high-frequency speakers; medium/high-frequency, medium/low- Output 3 and 4 are front left and right medium/low-frequency frequency, and full-range speakers;... - Page 21 Computer Software 14. Front 3-way active crossover + rear full range + front middle + 19. Front 3-way active crossover + rear 2-way active crossover + subwoofer (10CH): front middle + rear middle + left and right subwoofers (14CH): Output 1 and 2 are front left and right high-frequency speakers; Output 1 and 2 are front left and right high-frequency speakers;...
-
Page 22: Crossover Setup
Computer Software Click [ ]. Set the output mode when a dialog box pops up. The front options high-frequency, medium-frequency, low-frequency, medium/high-frequency, medium/low-frequency, full-range speakers; the rear options include high-frequency, medium-frequency, and full-range speakers; the middle options are high-frequency, medium- frequency, and full-range speakers;... -
Page 23: Equalizer Setup
Computer Software There are 31 adjustable EQ segments for output. The frequency, Q 2. Volume: You can set the channel volume by directly entering a value and gain adjustment method and range for output EQ are the figure, scrolling the mouse wheel, or pressing the up/down same as input EQ. -
Page 24: Setting The Presets
Notes: When the current source is selected, an 2. Adjust the delay by directly entering a figure, scrolling the mouse auxiliary source cannot overlap with such source. wheel, or pressing the up/down button on the keyboard. Otherwise, the auxiliary source will not work. Optical fiber and coaxial cable cannot be jointly available for Setting the presets overlap. -
Page 25: Line Controller Operation Instructions
Line Controller Line Controller Operation Instructions This line controller only suits PXE-X09. Before use, correctly connect the line controller to the unit. Be sure the controller can start up the unit properly. Startup screen Figure 3 MIX SOURCE When the line controller starts up the unit normally, it displays the dynamic startup screen as shown in Figure 1. -
Page 26: Preset
Line Controller Figure 5 PRESET After adjusting SUB W, short press the knob to enter the PRESET screen as shown in Figure 6-1. On the screen, the number following PRESET represents the sound effect data currently recalled by the unit. Figure 6-1 Turn the knob to select the desired sound effect. -
Page 27: Technical Parameter Index
Technical Parameter Index 1. Technical specifications Dynamic range ≥110dB Signal-to-noise ratio ≥100dB Noise floor ≤32uVrms Channel separation ≥110dB Total harmonic distortion ≤0.005% Input voltage High level: 26Vpp; AUX: 8Vpp Output voltage 8Vpp AUX input/output sensitivity 1:1 (no power amplification) Frequency response 20Hz~20kHz System sampling ratio 24bit/96kHz... -
Page 28: Functional Parameters
2. Functional parameters 16-channel RCA/high-level mixed input, optical fiber/coaxial Input signal cable/Bluetooth signal input Output signal 16-channel RCA audio signal output Input/output signal gain Range: Mute, 0 ~ 35 Type: Graphic Equalizer and Parametric Equalizer Frequency: 20Hz ~ 20kHz, with a resolution ratio of 1Hz Input/output signal equalizer Q value (slope or gradient): 0.404 ~ 28.852 Gain: -12.0dB ~ +12.0dB, with a resolution ratio of 0.1dB...
