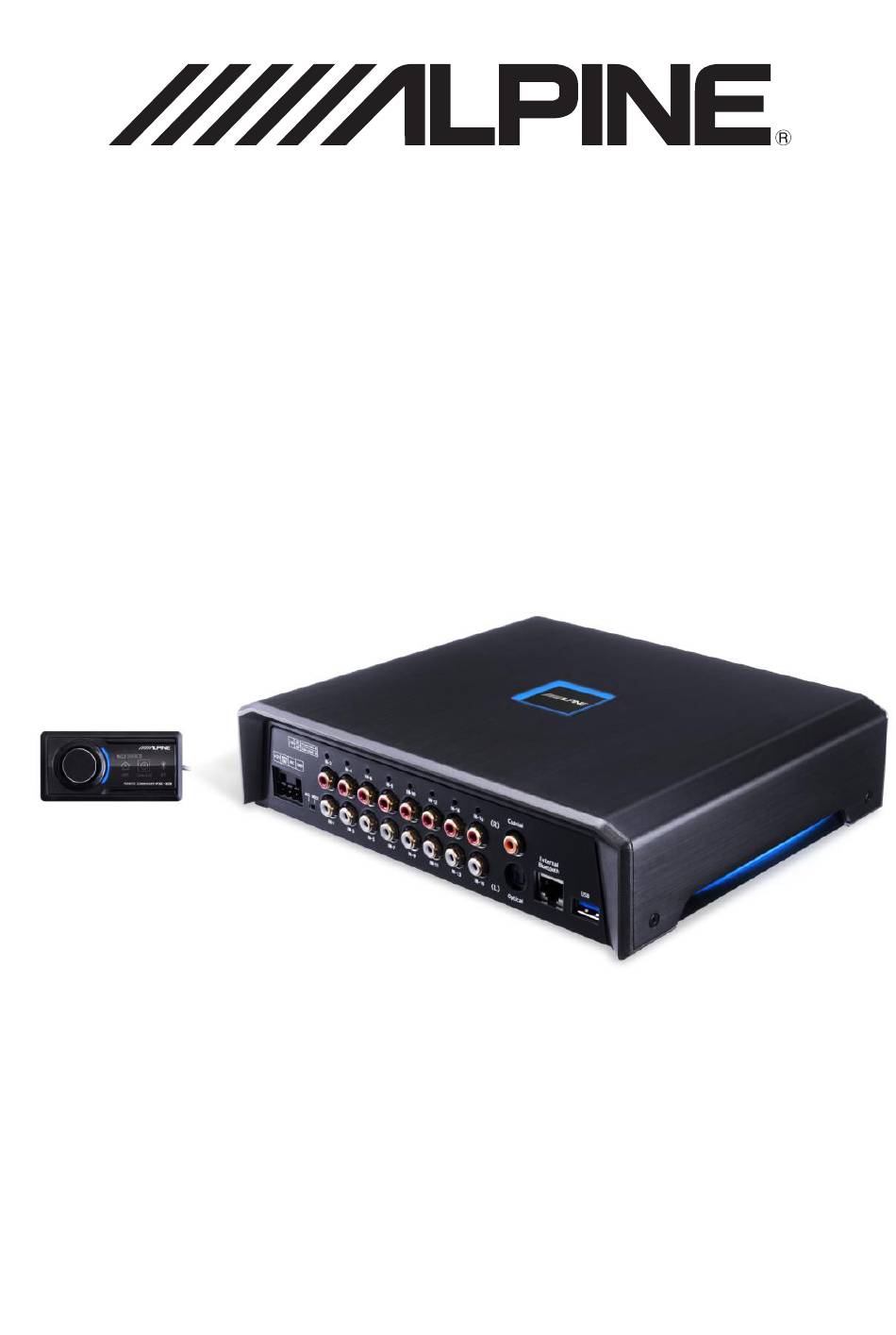

- Page 1 HIGH-RESOLUTION WIRELESS DIGITAL SOUND PROCESSOR PXE-X09...
-
Page 2: Table Of Contents
Contents Operation Instructions Setting the Output Mode ......17 Setting the Crossover .......19 Warning ............1 Setting the Channel EQ ......20 Attention .............1 Setting the Equalizer ........20 Important Instructions .........1 Setting the Channel Phase and Volume ..21 Setting the Channel Link ......21 Precautions Setting the Delay ........21 Function List ..........2... -
Page 3: Operation Instructions
Do not use any functions that may divert your attention when driving. Installation Location Only use such functions that distract you when Do not install PXE-X09 in the following places: the car stops. Make sure that you park your ● Under the direct Sunlight or near heating car in a safe place before using such functions. -
Page 4: Precautions
Precautions You can use PXE-X09 mobile phone app or PC software to tune and set up the PXE-X09. The control with the two methods differs slightly and thus will be discussed in different chapters. The function list is as follows:... -
Page 5: Introduction To The Dsp
Introduction to the DSP 1. Connections... -
Page 6: Introduction To The Connectors And Functions
Note: Please use coaxial cables with the impedance of 75Ω. 14 External Bluetooth interface Lossless music can be played through Bluetooth connection. Start the PXE-X09 mobile phone app and turn the Bluetooth of your mobile phone; the Bluetooth indicator is on. -
Page 7: Mobile Phone App Instructions
Bluetooth automatically, and click to connect “DSP-HD-...”; when it progresses to 100%, the connection is established successfully. Then start the PXE-X09 app on your phone, it will Input interface Output interface connect to the DSP automatically. It will enter the Alpine startup page. -
Page 8: Setting The Input Mode
Mobile Phone App e. Select “Shutdown delay” to set the (3) Four-CH + FC (5CH): shutdown delay. The range of the Front Left and Front Right channels of shutdown delay: 0-255s. IN 1 and 2 are set to Full-range; Select “Configuration wizard” to enter the Rear Left and Rear Right channels of wizard for configuring the main sound IN 3 and 4 are set to Full-range;... - Page 9 Mobile Phone App Front Left and Front Right channels of Front Left and Front Right channels of IN 3 and 4 are set to Mid-bass; IN 1 and 2 are set to Tweeter; Rear Left and Rear Right channels of Front Left and Front Right channels of IN 5 and 6 are set to Full-range;...
-
Page 10: Setting The Output Mode
Mobile Phone App 2. Low level input selection: (1) Stereo (2CH): Front Left and Front Right channels of IN 1 and 2 are set to Full-range. (2) Four-CH (4CH): Front Left and Front Right channels of IN 1 and 2 are set to Full-range; Rear Left and Rear Right channels of IN 3 and 4 are set to Full-range. - Page 11 Mobile Phone App 4. Four-CH + Left and Right (6CH): OUT 8 is set to Subwoofer. Front Left and Front Right channels of OUT 10. Three Front Channels + Two Rear 1 and 2 are set to Full-range; Channels + Center Channel + FC (12CH): Rear Left and Rear Right channels of OUT 3 Front Left and Front Right channels of OUT and 4 are set to Full-range;...
-
Page 12: Setting The Crossover
Mobile Phone App Rear Left and Rear Right channels of OUT 9 Woofer, and Full-range; FC options include and 10 are set to Subwoofer; left subwoofer and right subwoofer, and OUT 11 is the center channel and set to subwoofer; surround options include left and Full-range. -
Page 13: Setting The Equalizer
Mobile Phone App There are 10 input EQ values. Move the slider up 4. Click “Reset EQ” , all the equalizers and down or click a gain value to display the gain of the current channel are reset to the initial adjustment box and then move the slider left and state: the input Q value is 2.515, the output right or press “+”/“-”... -
Page 14: Setting The Delay
Mobile Phone App Setting the Master Volume and Sound Source Master volume adjustment, sound source selection, and output signal display section. 1. Adjusting the master volume: Adjust the volume by either dragging the volume slider, or by pressing Setting the Delay “+”/“-”, from 0 to 35. -
Page 15: Software Instructions
Before connecting PXE-X09 to PC, please install the PXE-X09 software correctly. Introduction to the Main Interface Start the PXE-X09 software and enter the startup interface, as shown in Figure 1. Select the main sound source, high and low level input and output modes, or skip to the volume adjustment interface, as shown in Figure 2. -
Page 16: Connecting To The Dsp
Software for PC Figure 2 scenarios, preset scenarios, output Connecting to the DSP channel configuration data, etc.) to copy all the data of a DSP that had been well adjusted to the currently connected 1. Before the DSP is connected, the DSP;... -
Page 17: Setting The Input Mode
Software for PC frequency, Q value and gain value data. The tuning data as delay time, channel, and phase equalizer settings will also be encrypted. The encryption is only effective for the sound effect data currently used, instead of all the data of the DSP. - Page 18 Software for PC (4) Four-CH + Left and Right FC (6CH): (10) Three Front Channels + Two Rear Front Left and Front Right channels of Channels + Center Channel + FC IN 1 and 2 are set to Full-range; (12CH): Rear Left and Rear Right channels of Front Left and Front Right channels of IN 3 and 4 are set to Full-range;...
-
Page 19: Setting The Output Mode
Software for PC Rear Left and Rear Right channels of IN 3 and 4 are set to Full-range. IN 9 and 10 are set to Subwoofer; (3) Six-CH (5.1CH): IN 11 is the center channel and set to Front Left and Front Right channels of Full-range. - Page 20 Software for PC Note: the “Clear all” button is invalid in the 7. Two Front Channels + Rear Channels + Left and Right FC (8CH): customized setting interface. Front Left and Front Right channels of OUT 1 and 2 are set to Tweeter; Front Left and Front Right channels of OUT 3 and 4 are set to Mid-bass;...
-
Page 21: Setting The Crossover
Software for PC Front Left and Front Right channels of OUT Rear Left and Rear Right channels of OUT 5 and 6 are set to Woofer; 7 and 8 are set to Full-range; Rear Left and Rear Right channels of OUT Left and Right channels of OUT 9 and 10 7 and 8 are set to Tweeter;... -
Page 22: Setting The Channel Eq
Software for PC on the left and right and hold, then drag it left and right to adjust the Q value of the Equalizer. The frequency, Q value, and gains can also be set by directly entering the value, scrolling the mouse wheel or pressing Up/Down keys on the keyboard. -
Page 23: Setting The Channel Phase And Volume
Software for PC 4. Click “Reset EQ”, all the equalizers of the Setting the Channel Link current channel are reset to the initial state: the frequency is evenly distributed, the input Q value is 2.515, the output Q value is Link: The input link settings include Channel 2.201, and the gain is 0.0 dB. -
Page 24: Sound Effect Presets
Software for PC Coaxial, Bluetooth, High Level, Low Sound Effect Presets Level, and Off. Note: When a sound source is selected, it cannot then be selected again as Loading and storage of sound effect presets. Click the auxiliary sound source; doing “Call”... -
Page 25: Instructions For The Use Of The Wired Controller
Wired Controller Instructions for the Use of the Wired Controller This wired controller only applies to PXE-X09. Connect the wired controller correctly to the DSP and make sure it is started normally before use. Startup Screen Figure 3 After the wired controller is started, the dynamic Mix Source startup screen appears, as shown in Figure 1. -
Page 26: Subwoofer Volume (Subw)
Wired Controller Subwoofer Volume (SUBW) After selecting the mix sound source, press the button briefly to enter the Subwoofer volume (SUBW) interface, as shown in Figure 5. Turn the button of the wired controller to adjust the subwoofer volume. Turning it clockwise can increase the volume, while turning it counterclockwise will reduce the volume (the adjustment range is from 0 to 15). -
Page 27: Technical Parameters
Technical Parameters 1. Technical specifications Dynamic range ≥110dB Signal noise ratio ≥100dB Noise floor ≤32uVrms Channel separation ≥110dB Total harmonic distortion ≤0.005% Input voltage High level: 26Vpp; AUX: 8Vpp Output voltage 8Vpp AUX input/output sensitivity 1:1 (without power amplification) Frequency response 20 Hz–20 kHz System sampling rate 24 bit/96 kHz... -
Page 28: Functional Parameters
2. Functional parameters Input signal 16-Channel RCA/High level mixed input, Optical/Coaxial/Bluetooth signal input Output signal 16-Channel RCA audio signal output Input/output Range: mute, 0-35 signal gain Mode: Graphic EQ and Parametric EQ Frequency: 20 Hz–20 kHz, resolution 1 Hz Input/output signal EQ Q value (slope): 0.404-28.852 Gain: -12 dB to +12 dB, resolution 0.1 dB Each input/output channel has at most 8 independent filters. -
Page 29: Harmful Substances
Harmful Substances Name and content of harmful substances contained in the product Poisonous or harmful substances or elements Hexavalent Polybrominated Polybrominated Part name Lead Mercury Cadmium chrome biphenyl diphenyl ether (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) Circuit × О О О...
