edc HAZ-DUST IV HD-1004-S Quick Start Manual

Step 4:
Air Sampling
After performing clean air zero switch should already be in the desired position. If sampling for
Respirable, insert the RS-104 [comprised of the GS3 Cyclone and the GS3 Cyclone Adapter
(p/n GSA-204)] into IOM inlet at bottom of optical sensor. If sampling for Inhalable, remove
the RS-104, if attached. Choose the appropriate size fraction on the instrument. Select Enter →
Special Functions → System Options → Extended Options → Size → Respirable or Inhalable
Insert GS3 Cyclone into IOM inlet at bottom
of sensor or position cyclone between sensor
and sensor bracket for a locked fitting.
Remove Cyclone for Inhalable air sampling.
Environmental Devices Corporation
Fieldstone Industrial Park
4 Wilder Drive Bldg. #15
Plaistow, NH 03865 USA
1(800) 234-2589 or 1(603) 378-2112
sales@hazdust.com
Technical Support
techsupport@hazdust.com
Visit our website at www.hazdust.com
An "R" will appear when Respirable is
selected in the menu option. An "I" will
appear when Inhalable is selected.
Sales
ext.20
ext.14
Quick Start Guide

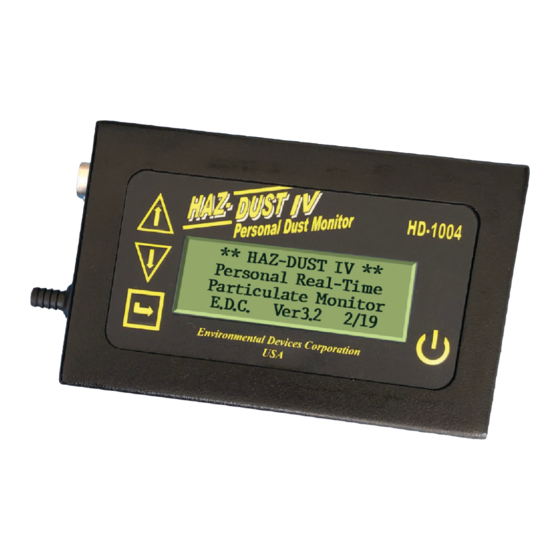

The HD-1004-S is a Real-Time Personal Particulate Air Monitoring Instrument
with the ability to monitor for Respirable and Inhalable size fractions. When in
the Inhalable setting, the flow rate should be set to 2.0 LPM and factory dust
calibration is in accordance with the NIOSH 0500 dust method. When in the
Respirable setting, the flow rate should be set at 2.75 LPM and used with SKC's
Respirable Cyclone and factory dust calibration is in accordance with the NIOSH
0600 dust Method. When the user has set flow rates the instrument can be used
to easily switched between Inhalable and Respirable size fractions. The flow rate
and dust calibration is automatically adjusted.
HD-1004-S
