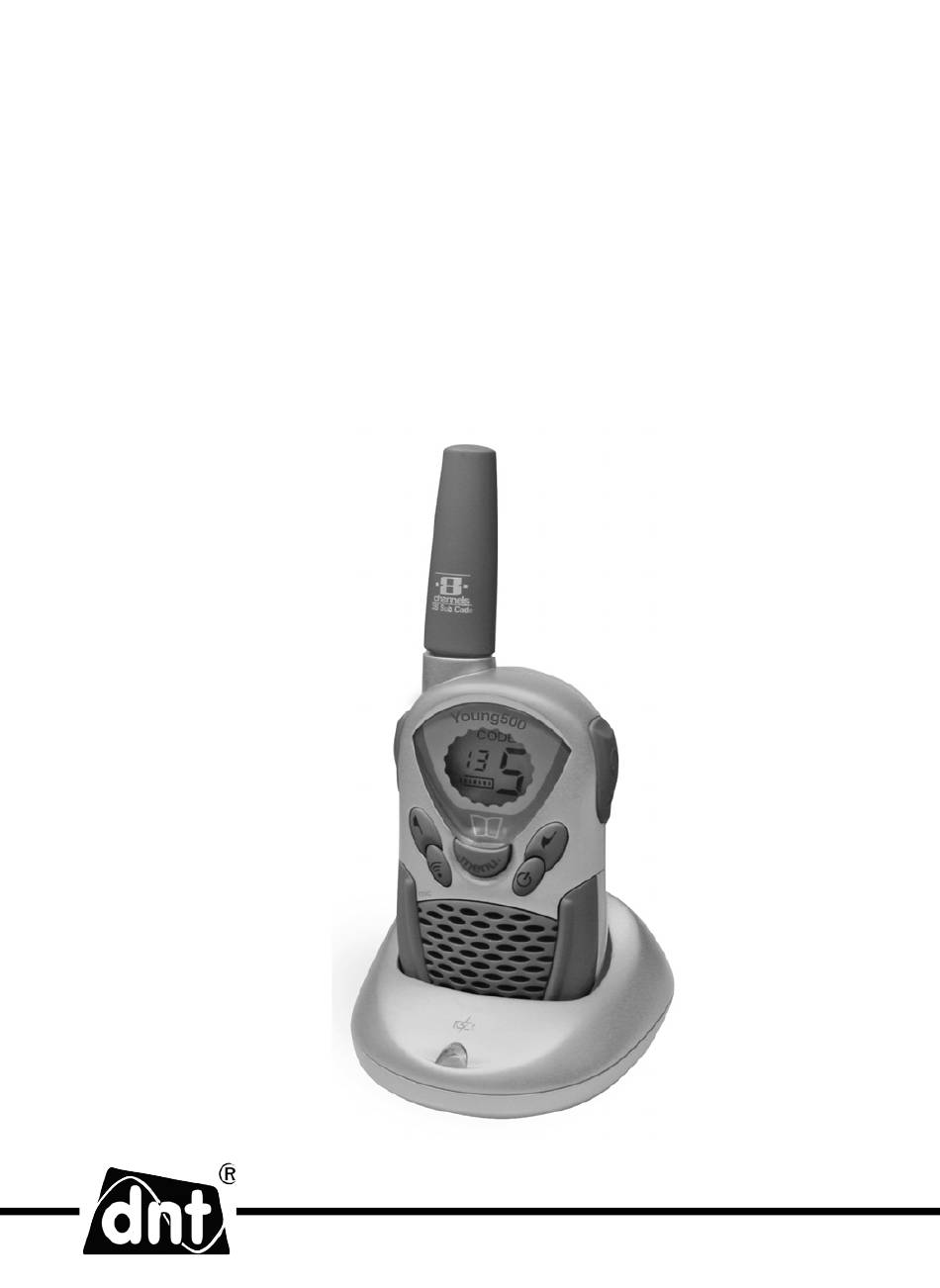

- Page 1 Young500 Bedienungsanleitung user manual...
-
Page 2: Table Of Contents
Contents Security instructions ............... 22 Product information Features/Delivery content .............. 24 Name of each part ....….………..........25 Name of displayed features ............26 Starting operation Install belt clip ................27 Replace the batteries ..............27 Recharge batteries................. 27 Check battery condition ..............28 External earset .... -
Page 3: Security Instructions
Security instructions Please read this information carefully before you use the two way radio. General instructions Don’t use the unit while driving a car or riding a bike. Don’t place the unit on unstable location, if it falls down, people may be injured. - Page 4 Security instructions Contents unwanted noise could be recorded. If you connect the unit to other electronic devices, please study also the security instruction of this device. Batteries Don’t leave empty batteries in the unit. Don’t try to recharge Alkaline batteries. Batteries can be extremely dangerous if accidentally swallowed.
-
Page 5: Features/Delivery Content
LCD Last Used Channel Memory Back Lighted LCD Display Battery Status / Charge Indicator External Earset-Microphone Jack NiMH Batteries (600 mAh) Included Delivery content 2 x Young500 (incl. NiMH rechargeable battery), 2 x AC Adaptor, 2 x Desktop charger, user manual - 24 -... -
Page 6: Product Information
Product information View of the appliance Antenna Display PTT button Up-/ Down button Menu button On/off button Call button Microphone Speaker charger pins (on bottom side) - 25 -... -
Page 7: Name Of Displayed Features
Product information View of the appliance-Display TX power Alarm icon Mode TX/RX indicator Dual watch Out of range Scan icon channel Sub channel VOX icon (CTCSS) Battery condition Volume Key lock icon This icon appears, if transmitting is in process This icon appears, when the radio receives a signal on the current channel. -
Page 8: Starting Operation Install Belt Clip
Install the belt clip vice versa. During installation a click indicates that the belt clip is locked. Replace the batteries The Young500 has rechargeable NiMH batteries. If it is necessary to replace the batteries, proceed as follows: Turn the unit off. -
Page 9: Check Battery Condition
(not in the delivery content) Earsets can be connected to the radio on to Headset jack on the top of the radio. To avoid damage to the radio use only original dnt acces- sories. Turn off the radio before connecting external accessories. -
Page 10: General
Getting started General The Young500 has 3 modes: 1. PMR mode(P), 2. Mama mode(M), 3. Baby mode(B) Not all menu items are available in each mode. For example Dual watch is not available in B mode. To switch between the modes press 1x the menu button and then the up-/down button to select the desired mode. -
Page 11: Transmitting
Press the PTT button to confi rm or wait 3 seconds, the changes are stored automatically. CTCSS code The Young500 has altogether 38 sub-channels which work in the CTCSS standard. A private sub-audible tone may be programmed and associated with every channel, to protect the radio from unwanted calls or interfer- ence from other operators on the same channel. -
Page 12: Vox / Hands-Free Operation
General operation VOX / HANDS-FREE OPERATION VOX allows to switch automatically between transmitting and re- ceiving by voice operation. The radio has a built-in Voice Activated Circuit(VOX)function. You can connect the radio with the earphone for hands-free talking and listening without pressing PTT button. To enable VOX mode proceed as follows: Press Menu button 5x until LCD displays VOX icon and VOX sensitivity digit display is fl... -
Page 13: Call-Ring Tone
General operation Adjust the volume to comfortable level if necessary. You must turn off the unit before plug the earphone in oth- erwise the unit will keep on transmitting. Call-Ring tone You can use call tones to get the attention of other people with radios on the same channel and CTCSS tone. -
Page 14: Receiving
General operation Press Up-/Down button to select the key tone, the display shows ON, or deselect the key tone, the display shows OF. Press the PTT button to confi rm. Receiving If the radio is turned on, it is automatically set into receiving mode. To communicate with other radios all radios must have the same channel and sub-channel. -
Page 15: Key Lock
General operation Press the UP button to scan the channels 1-8. Press the DOWN button to scan the sub-channels. When the radio detects channel activity, it stops scanning and stays at that channel. If you press the PTT button you can talk on this channel but if the talking stops for more than 4 seconds, the scanning starts again. -
Page 16: Power Hi/Low
Specifi cations Power High/Low To save battery power the unit can be setup to low power if you want to communicate in a short distance. Press Menu button 4x, LCD display shows the current power HI or LO icon Press Up-/Down button to select the desired power. Press the PTT button to confi... -
Page 17: Indications For The Application
General operation M mode and B mode: Press 10x the menu button until fl ashes in the display Switch on the function with Up-/Down button. Indications for the application 1 . Babyphone One device must be set to M mode(mama mode) the other one to B mode(baby mode). -
Page 18: Specifi Cation/Ctcss Table
Techn. Specifi cations Frequency range 446.00625 - 446.09375 MHz Channels 8 PMR Kanäle (12.5 KHz channel space) Modulation FM (F3E) Frequency Control Power Supply 4.5V (3 x AAA 1.5V alkaline cells) 3.6V (3 x AAA 1.2V NiMH rechargable batteries) Temperature Range -20/+55°C Antenna Integrated Jacks... -
Page 19: Declaration Of Conformity
Sie von der nachfolgenden Seite als PDF-Datei herunterladen: http://www.dnt.de/konformitaet Hereby, dnt GmbH, declares that this YoungStar is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC (R&TTE). The declaration of conformity for this product can be downloaded from: http://www.dnt.de/conformity... -
Page 20: Warranty Regulations
Garantiebedingungen 1. Es gelten grundsätzlich die gesetzlichen Garantiebestimungen. Die Garantiezeit beginnt mit der Übergabe des Gerätes. Im Garantiefall ist das Gerät mit dem Kaufbeleg (Kassenzettel, Rechnung o.ä.), dem korrekt ausgefüllten Gerätepass und einer genauen Fehlerbeschreibung einzureichen. Ohne diese Belege sind wir nicht zur Garantieleistung verpfl ichtet. 2. - Page 21 Young500 Garantiekarte Warranty card Drahtlose Nachrichtentechnik Entwicklungs- und Vertriebs GmbH Voltastraße 4 D-63128 Dietzenbach Tel. +49 (0)6074 3714-0 +49 (0)6074 3714-37 Internet http://www.dnt.de Email dnt@dnt.de Serien Nr. Serial no. Kaufdatum: Date of purchase: Stempel und Unterschrift des Händlers Stamp and signature of the dealer...
