Installation Instructions: 2011+ Dodge Charger Version
Step 1
Fasten the CommandStik Mounting Brackets with the the supplied 1/4"-20 X 3/8" long screws, 1/4" internal tooth
lock washers, & 1/4" flat washers and tighten the screws finger tight (see Figure 1 below for bracket orientation). Make sure
you thread the screws into the inner mounting holes in the brackets as shown.
Step 2
Remove the (2) outer child restraint covers shown in Figure 2 on page 4. Position the CommandStik in the rear deck
of the vehicle with the mounting brackets positioned in the child restraint pockets and align the threaded holes in the mount-
ing brackets with the existing holes in the vehicle. See Figure 3 on page 4.
Step 3
Remove the fabric cover from inside the vehicle's trunk, thread a supplied 1/4"-20 X 5/8" Phillips Pan Head Machine
Screw with a 1/4" internal tooth lock washer, & 1/4" flat washer through the existing hole in the child restraint area & into the
threaded holes in the Pemserts in each of the CommandStik Mounting Brackets (see Page 5 Figure 4). Leave the screws
just slightly loose. Note: It is extremely helpful to have an assistant line up and hold the CommandStik's Mounting
Brackets in location to prevent movement while you are threading the screws into the holes.
Step 4
Center the CommandStik in the rear deck area and tighten all of the screws. Replace the fabric cover inside the
vehicle's trunk & snap the round plastic plugs into the holes in the top of the CommandStik to plug the holes.
Caution: Drilling into the housing of the light bar could damage wiring or other internal components.
Step 5
To replace the plastic child restraint covers you will have to trim the covers to clear the CommandStik's Mounting
Brackets then re install the covers.
920-0546-00 Rev. A

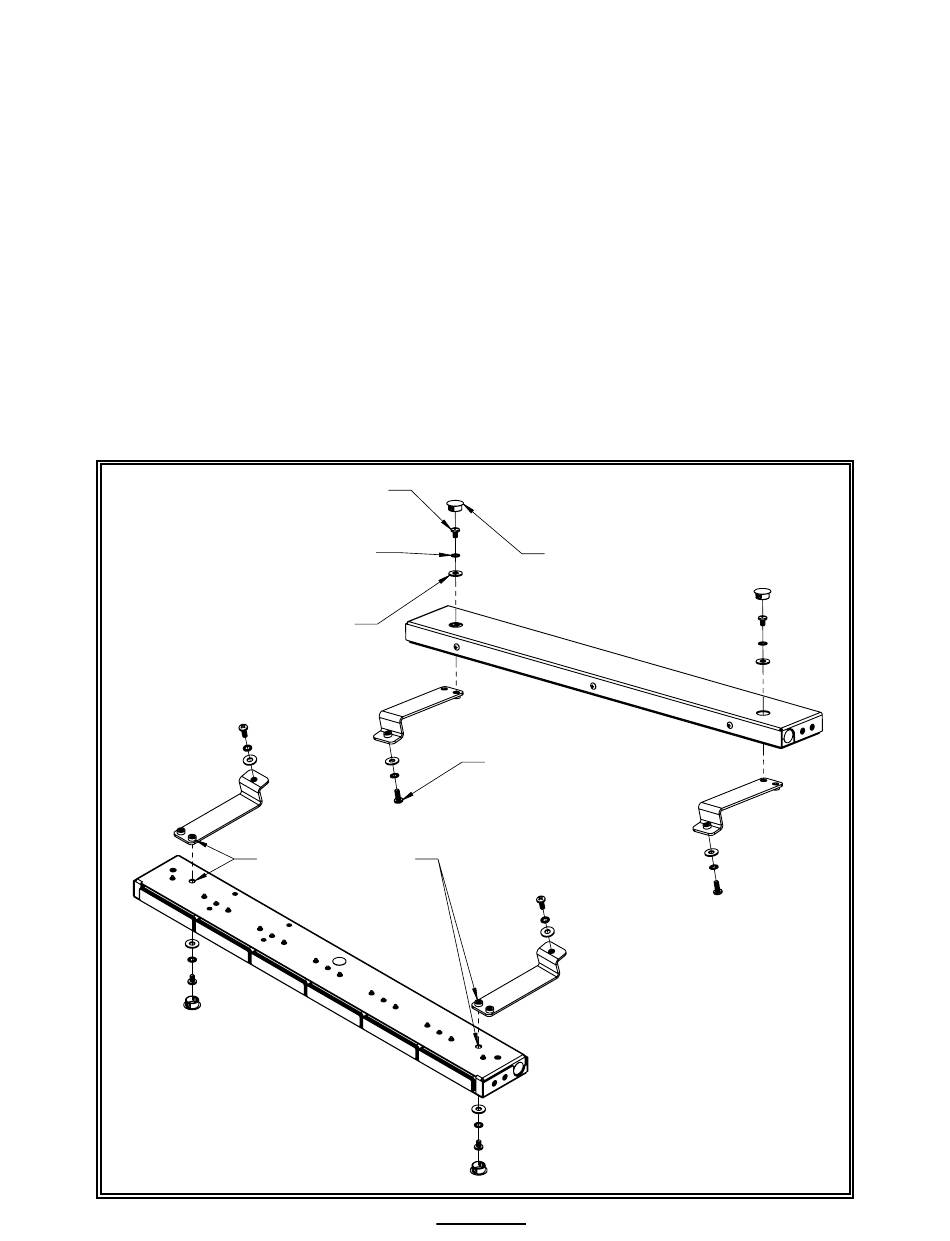

1/4"-20 X 3/8" LONG
PHILLIPS PAN
HEAD SCREW
1/4" INTERNAL
TOOTH LOCK
WASHER
1/4" FLAT
WASHER
MOUNT TO
INNER MOUNTING
BRACKET HOLES
UNDER SIDE VIEW
PLASTIC
HOLE PLUG
1/4"-20 X 5/8" LONG
PHILLIPS PAN
HEAD SCREW
TOP SIDE VIEW
FIGURE 1
