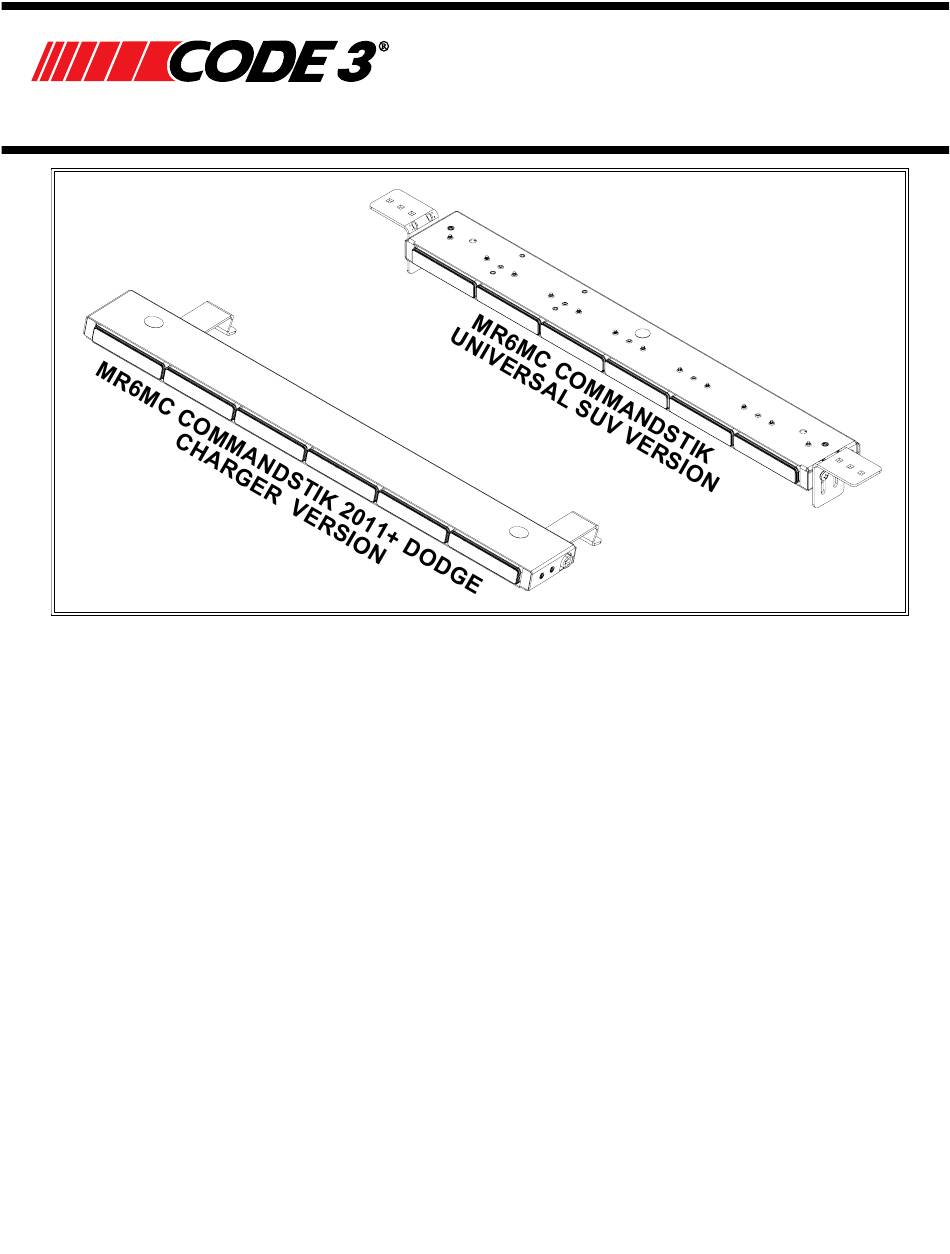

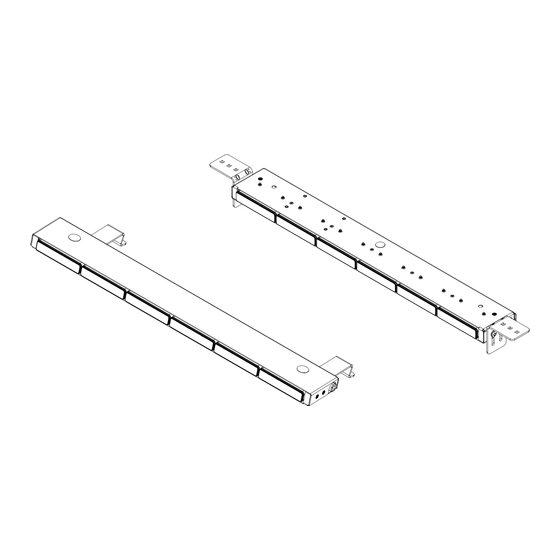

Introduction: CommandStik With MR6MC
Light Heads
The CommandStik with MR6MC Multi Color Tech-
nology is an interior lighting system that fits in the
rear deck area. The CommandStik has room for up
to six MR6MC Multi Color light heads.
Product Specifications:
MR6MC Light Head Options: Red/Amber, Blue/Amber
Size Full Unit:------27.50" long X 1.25" tall X 3.50" deep------------------------------------------------------------------------Weight: 4.5 lbs
Input Voltage: ---------------------------------------------------------------------------------------------------------------------------------------12VDC
Input Current: Startup Current-------------------------------------------------------------------------------------------------------------0.007 Amps
Current @ Power-----------------------------------------------------------------------------------------------------------------------------0.005 Amps
Max Current----------(6) Light Hd ---------------------------------------------------------------------------------------------------------11.30 Amps
Mounting Hardware - All mounting hardware is packed in a small bag inside the main carton. There are two
brackets used to mount the CommandStik to the vehicle. These are discussed in detail later.
920-0546-00 Rev. A
Installation & Operation Manual
Installation and Operation Ins
CommandStik™ With
CD3766 Directional L
MR6MC Light Heads
Interior Lighting System
CONTENTS:
Introduction................................................................1
Product Specifications................................................1
Unpacking & Pre-Installation......................................2
Installation & Mounting - Universal............................2
Wiring Instructions......................................................5
Flash Pattern Selection..............................................6
Troubleshooting..........................................................7
Exploded View-Parts List...........................................7
Warranty.....................................................................8
Page 1 of 8
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Code 3 CommandStik MR6MC
Summary of Contents for Code 3 CommandStik MR6MC
-
Page 1: Table Of Contents
Installation & Operation Manual Installation and Operation Ins CommandStik™ With CD3766 Directional L MR6MC Light Heads Interior Lighting System CONTENTS: Introduction..............1 Introduction: CommandStik With MR6MC Product Specifications..........1 Light Heads Unpacking & Pre-Installation........2 The CommandStik with MR6MC Multi Color Tech- Installation & Mounting - Universal......2 nology is an interior lighting system that fits in the Installation &... -
Page 2: Unpacking & Pre-Installation
Unpacking & Pre-installation Carefully remove the CommandStik and place it on a flat surface, taking care not to scratch the lenses or damage the cable coming out of the unit. Examine the unit for transit damage, broken lamps, etc. Report any damage to the carrier and keep the shipping carton. -
Page 3: Installation & Mounting - 2011+ Dodge Charger
Installation Instructions: 2011+ Dodge Charger Version Step 1 Fasten the CommandStik Mounting Brackets with the the supplied 1/4"-20 X 3/8” long screws, 1/4” internal tooth lock washers, & 1/4” flat washers and tighten the screws finger tight (see Figure 1 below for bracket orientation). Make sure you thread the screws into the inner mounting holes in the brackets as shown. - Page 4 Installation Instructions: 2011+ Dodge Charger Version Continued. FIGURE 2 FIGURE 3 FIGURE 4 Page 4 of 8 920-0546-00 Rev. A...
-
Page 5: Wiring Instructions
Wiring Instructions: It is advisable to leave an extra loop of cable when installing the light bar to allow for future changes or reinstallations. Connect the black lead to a solid frame ground (earth), preferably the (-) or ground (earth) side of the battery, and the power wire to the +12V terminal of the battery. -
Page 6: Flash Pattern Selection
WARNING! This product contains high intensity LED devices. To prevent eye damage, DO NOT stare into the light beam at close range. Flash Pattern Instructions: MR6MC CommandStik Multi Color Units INSTALLER NOTE: FLASH RATE + FLASH SEQUENCE = FLASH PATTERN Light Head Flash Sequences - Multi Color LEFT / RIGHT PRIMARY &... -
Page 7: Troubleshooting
Part Number Outer Panel T15552 Chassis 220-0906-00 AS-10 Universal Mounting Bracket S50008 MR6MC Module *Contact Code 3, Inc for P/N Up to 6 .625 Diameter Cap T05431 Circuit Board Assembly 160-0494-00 Internal tooth starwasher .250 T06935 1/4-20 x 3/8" Phil Pan Hd, Black Zinc, Stl T89965 .750 Diameter Cap... -
Page 8: Warranty
*Code 3®, Inc. reserves the right to repair or replace at its discretion. Code 3®, Inc. assumes no responsibility or liability for expenses incurred for the removal and /or reinstallation of products requiring service and/or repair.;...
