- Page 1 VACUUM TUBE CONTROL AMPLIFIER CL-1000 Owner`s Manual...
-
Page 2: Table Of Contents
Contents Precautions ············································································································· 1 Features of This Unit ································································································ 2 Names and Functions ······························································································ 4 Connections ············································································································ 9 Operations ············································································································· 12 Block Diagram ······································································································· 13 Specifications ········································································································ 14 Before Asking for Repair Service ············································································ 16... -
Page 3: Precautions
Precautions VACUUM TUBE CONTROL AMPLIFIER CL-1000 Installation place The sound is not generated shortly after the power supply is turned on. Install this unit in a location where good ventilation and heat radiation are assured. This amplifier is equipped with a time muting circuit in order Especially, installation of this unit where direct sunlight is to separate the output circuit. -
Page 4: Features Of This Unit
Features of This Unit LECUTA PHASE INVERT function LUXMAN Electronically Controlled The phase can be switched in accordance with the polarity Ultimate Transformer Attenuator of the balanced input or output device to be connected to this unit. The 34-contact transformer type attenuator in which The phase of the unbalanced output of this unit can also be ®... - Page 5 RCA terminal made of copper alloy and XLR terminal manu- factured by Neutrik. Custom-made parts Selector relay LUXMAN’s original high sound quality oil capacitors are used. Selector relay with high sound quality used in the key point Highly reliable design of LUXMAN amplifier, which enhances the separation and crosstalk performances.
-
Page 6: Names And Functions

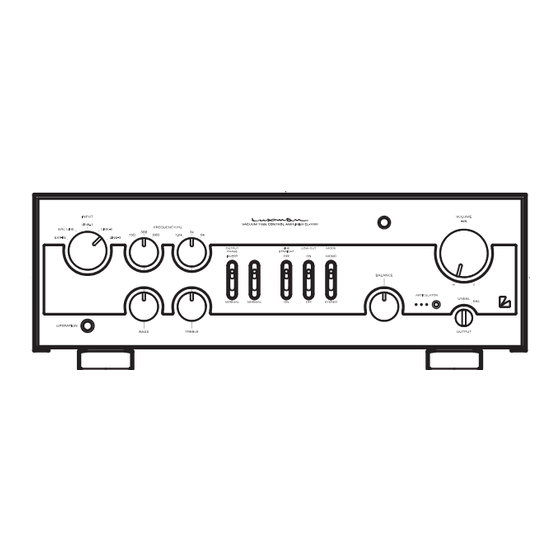

Names and Functions Front panel 15 14 13 12 11 1. Operation switch (OPERATION) 4. High frequency selector switch (FREQUENCY/Hz) Toggles the power on and off. When wiring or connection is performed, be sure to turn off Toggles to select frequencies from 1.5 kHz, 3 kHz, 6 kHz. this switch. - Page 7 VACUUM TUBE CONTROL AMPLIFIER CL-1000 7. Output selection switch (OUTPUT) 11. Mode switch (MODE) Switches the output between unbalanced output and bal- Changes the output mode. anced output. Both outputs cannot be activated at the MONO : Mixes the signals from right and left channels.
- Page 8 Names and Functions Front panel 15 14 13 12 11 15. Output phase inversion switch 16. Tone control for treble (TREBLE) (OUTPUT PHASE) Controls the frequency characteristics of the high-frequency range. When this switch is set in the center position, flat Inverts the phases of the unbalanced output and balanced frequency characteristics is obtained.
- Page 9 VACUUM TUBE CONTROL AMPLIFIER CL-1000 Rear panel 1. Cartridge selection switch 3. Unbalanced input terminals/INPUTS (LINE-1, LINE-2, LINE-3) (PHONO CARTRIDGE) Coaxial input terminal to receive unbalanced audio signals Selects MM, MC, impedance, or gain in accordance with of a line level the cartridge to be used.
- Page 10 Names and Functions Rear panel 6. Unbalanced output terminals/OUTPUTS 8. AC inlet (AC IN) (LINE-1, LINE-2) Connects the accessory power cable. The power shall be supplied from a household wall socket. RCA terminals to provide unbalanced audio signals of this unit. Connect these terminals to an unbalanced input of an out- 9.
-
Page 11: Connections
Connections VACUUM TUBE CONTROL AMPLIFIER CL-1000 Before connecting How to connect the input terminals to input devices such as a CD player Before connecting other devices, connect the jack side of the accessory power cable to the AC inlet of this unit. - Page 12 Connections Normal stereophonic playback CD/SACD PLAYER D/A CONVERTER ANALOG PLAYER POWER AMP 1 POWER AMP 2 SPEAKER SYSTEM 1 SPEAKER SYSTEM 2...
- Page 13 VACUUM TUBE CONTROL AMPLIFIER CL-1000 Bi-amplifier/stereophonic playback CD/SACD PLAYER D/A CONVERTER ANALOG PLAYER L-LOW L-HIGH R-LOW R-HIGH POWER AMP POWER AMP L ch R ch SPEAKER SYSTEM...
-
Page 14: Operations
Operations Before operation How to operate tone control (BASS, TREBLE) 1. Ensure that the connections are correctly performed. (Normal playback cannot be achieved with wrong con- This unit has the tone control function for the low-frequency nections of R and L.) and high frequency ranges. -
Page 15: Block Diagram
Block Diagram VACUUM TUBE CONTROL AMPLIFIER CL-1000... -
Page 16: Specifications
Specifications Input sensitivity LINE : 180 mV/1 V output, 1 kHz, load 50 kΩ BAL LINE : 180 mV/1 V output, 1 kHz, load 50 kΩ EXT-IN (PHONO) MM 100 kΩ (38 dB) : 2.2 mV/1 V output, 1 kHz, load 50 kΩ MM 50 kΩ... - Page 17 VACUUM TUBE CONTROL AMPLIFIER CL-1000 Vacuum tube used E88CC (manufactured by JJ Electronic/reliable tube) x 6 Accessories • Power cable • Owner’s Manual (This document) • Terminal protection cap • Safety cautions Power supply 230 V (50 Hz) Power consumption 52 W Max.
-
Page 18: Before Asking For Repair Service
Before Asking for Repair Service While in use, this unit may display phenomena which may be confused as malfunctions. Before contacting your country’s official LUXMAN distributor for repair services, please read the operating instructions and operating instructions for any connected input and through output devices and check the troubleshooting table below. - Page 20 LUXMAN CORPORATION AG00987E90A 1-3-1 Shinyokohama, Kouhoku-ku, Yokohama-shi, Kanagawa 222-0033, Japan Printed in Japan...
