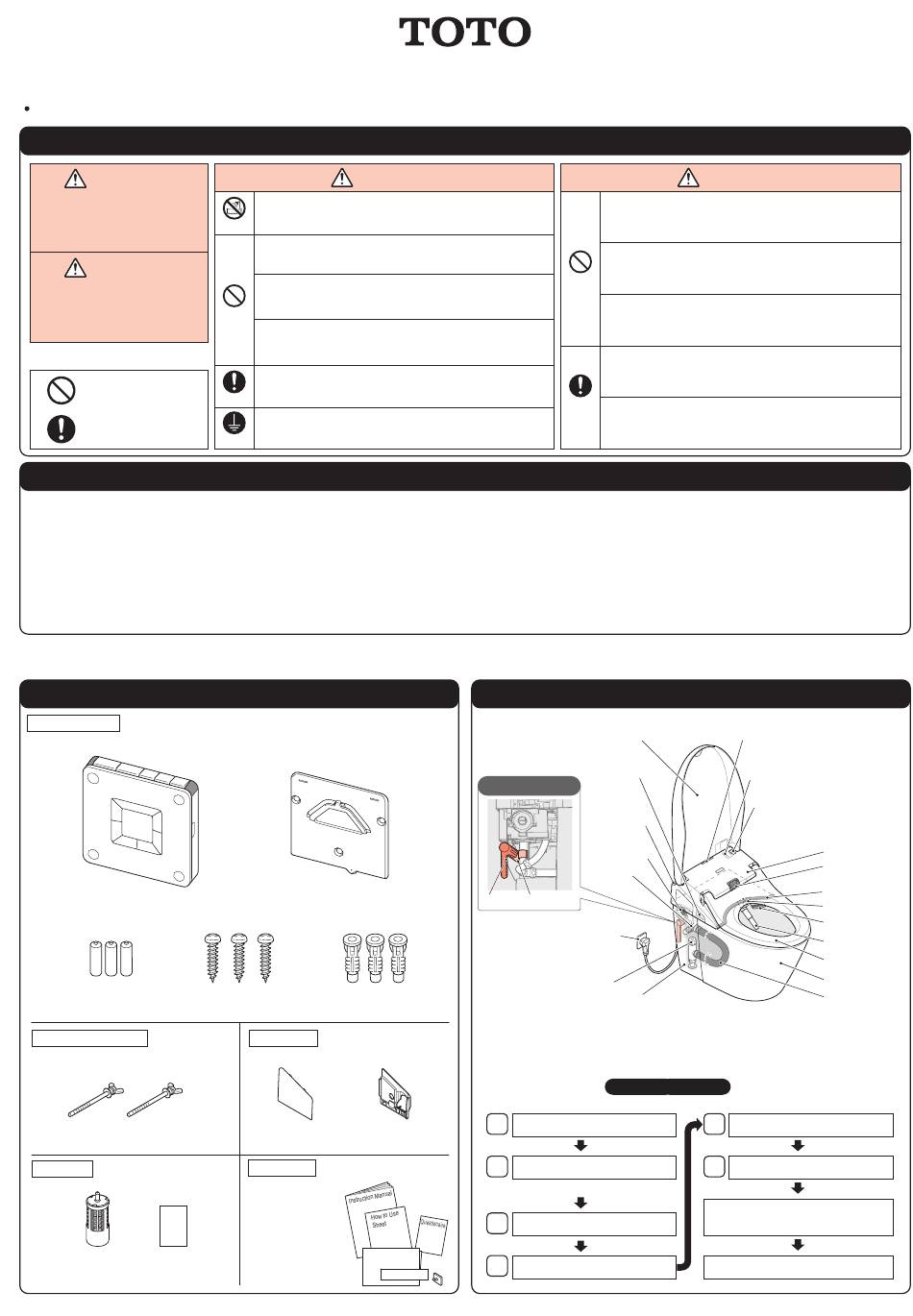

Toto NEOREST 550 Installation Instructions

Read the guide carefully and follow it strictly for a proper installation.
Warning
Improper use or installation of this
product may result in death or
severe injury.
Caution
Improper use or installation of this
product may result in injury or
property damage.
Meanings and symbols
Prohibited
You must not do
Mandatory
You must do
1. Do not apply power or supply water to the unit until the
installation process is complete.
2. Do not grasp the connection hose when mounting
the Top unit onto the bowl.
3. The power voltage is 120V/60Hz. The rated energy consumption
is 1284W. Use wiring and electrical outlet appropriate for this level
of power.
Parts Indentification
Remote control
Remote control
Batteries
(AA X 3)
Washlet fastener
Installation bolt (2 pieces)
Strainer
Please make
sure to install
Strainer
Strainer
Installation
Instructions
NEOREST 550 Installation Instructions
Safety Precautions
Warning
Do not install the product in a room where the humidity
can exceed 90% RH
(Fire or electric shock may occur.)
Keep dry
Only use specified power supply (AC 120V)
(It may cause electric shock or fire.)
When the power plug/cord is broken, or the outlet
becomes loose, do not use them
(Fire or electric shock may occur.)
Prohibited!
Do not use water other than tap water, portable water or
well water (underground water)
(It may cause skin irritation.)
Power plug shall be inserted frimly into the outlet
(Fire or electric shock may occur.)
Mandatory
Be sure to install the grounding firmly (Type B)
(It may cause electric shock in case of trouble or current leakage.)
Grounding
Before Installation
Remote control hanger
Screws Anchor hook
（3 pieces） （3 pieces）
Face cover
Face cover Dust cover
(with screws)
Literature
Instruction manual
Installation
Instructions (this)
How to Use Sheet
Questionnaire
Hook
Installation Instructions
Toilet bowl label
Toilet bowl lablel
Strictly follow the safety warnings and cautions
Do not pull up on the product with excessive force by
holding the seat or lid
(Injury may occur if the deat or lid is suddenly unhinged.)
Do not bend or twist the water supply hose
(Leakage may result.)
Prohibited!
Do not remove the water filter while the water shutoff
valve is open
(Water will shoot out.)
Stictly follow these instructions for installation
(Improper installation may cause leakage, electric shock or fire.)
Mandatory
The water supply filter shall be installed firmly
(Leakage may occur.)
4. The power cord is 3ft. (1m) in length. The electrical outlet
should be located on the wall, within reach of the power plug.
5. Use a water supply pressure of 10PSI (0.07MPa) to 109PSI
(0.75MPa) static.
6. The water temperature range should be 32~95°F (0 ~ 35°C).
7. Only use the flexible connecting hose provided in this kit.

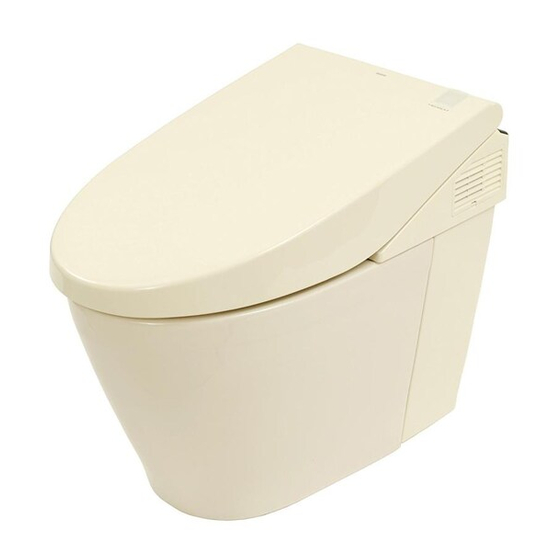

Parts and Features
Lid
Top unit
controls
Special tool
Remote control
receiver
(2, left and right)
Water supply filter
Connection
hose
Special tool Holder
Power plug
Water shutoff valve
Side panel
(2, right and left)
The installation order is as follows
■
Please follow the instructions and install the NEOREST correctly.
For details, see
Installation method
1
Place the top unit on the toilet bowl
*Do not attach yet
2
Connect the hose with the water diverter
*Do not open the water shutoff valve
3
Connect the flush valve terminals
4
Attach the top unit to the bowl
0GU9170
2008.10.3 D08028-4R
Caution
Soft light
Top unit display
Seat sensor A
Top Unit
Seat sensor B
Top Unit Gasket
Dryer outlet cover
Deodorizer filter
Wand
Heated seat
Toilet bowl
Water supply hose
(On-floor water supply case)
5
Check the power plug
6
Install the remote control
Test functionality and check
for leakage
Install the side panel
