Coin cell
Removing the coin-cell
Prerequisites
1. Follow the procedure in
2. Remove the
microSD
card.
3. Remove the
SIM card tray
4. Remove the
base cover
5. Remove the
battery
6. Remove the
memory module
7. Remove the
WWAN card
8. Remove the
WLAN card
9. Remove the
M.2 SSD
10. Remove the
system fan
11. Remove the
heatsink
12. Remove the
power-adapter port
13. Remove the
system board
Steps

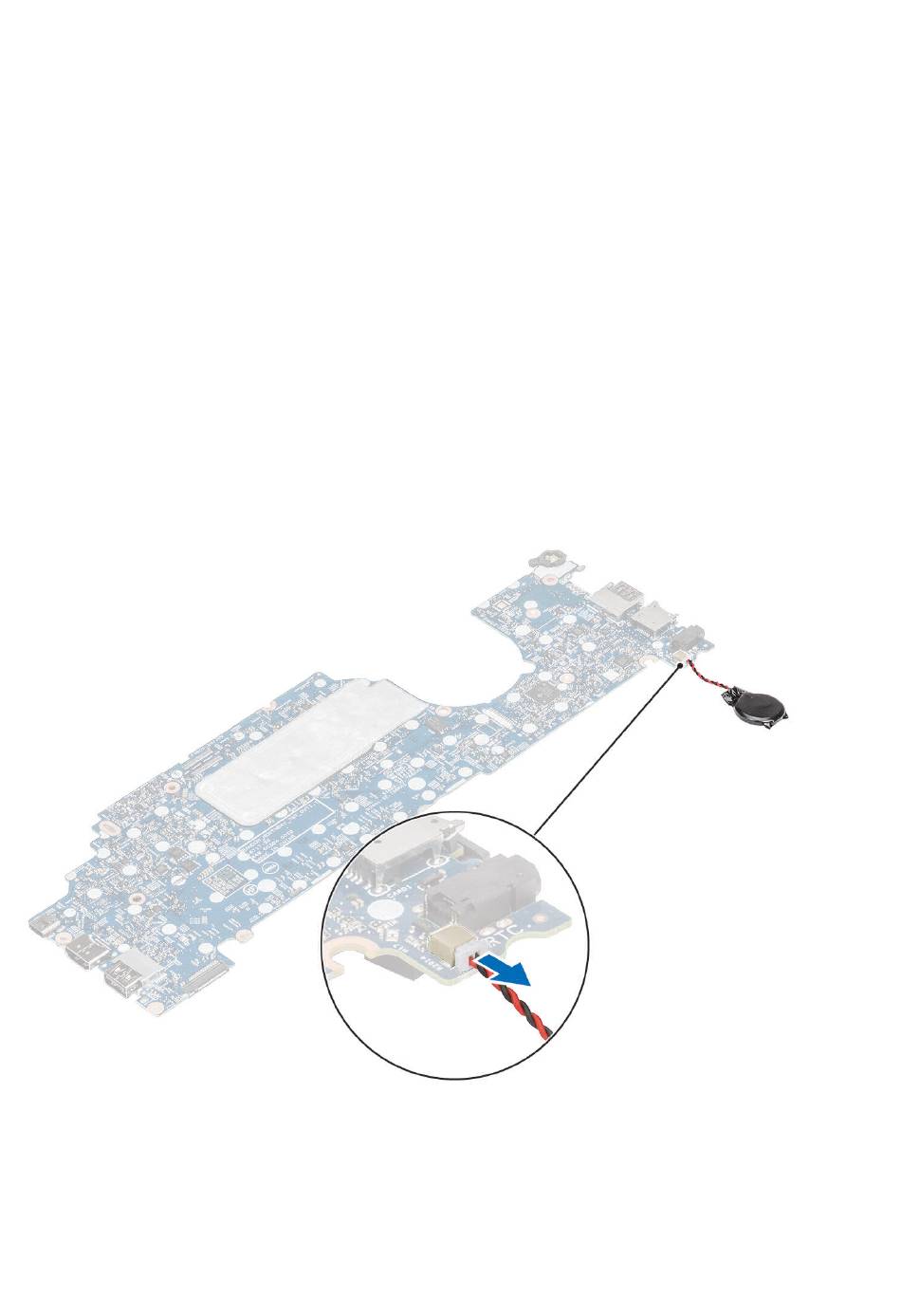

Turn the system board and disconnect the coin cell battery cable from the connector on the system board.
Installing the coin-cell
Steps
Turn the system board and connect the coin cell battery cable to the connector on the system board.
66
Removing and installing components
before working inside your
computer.
