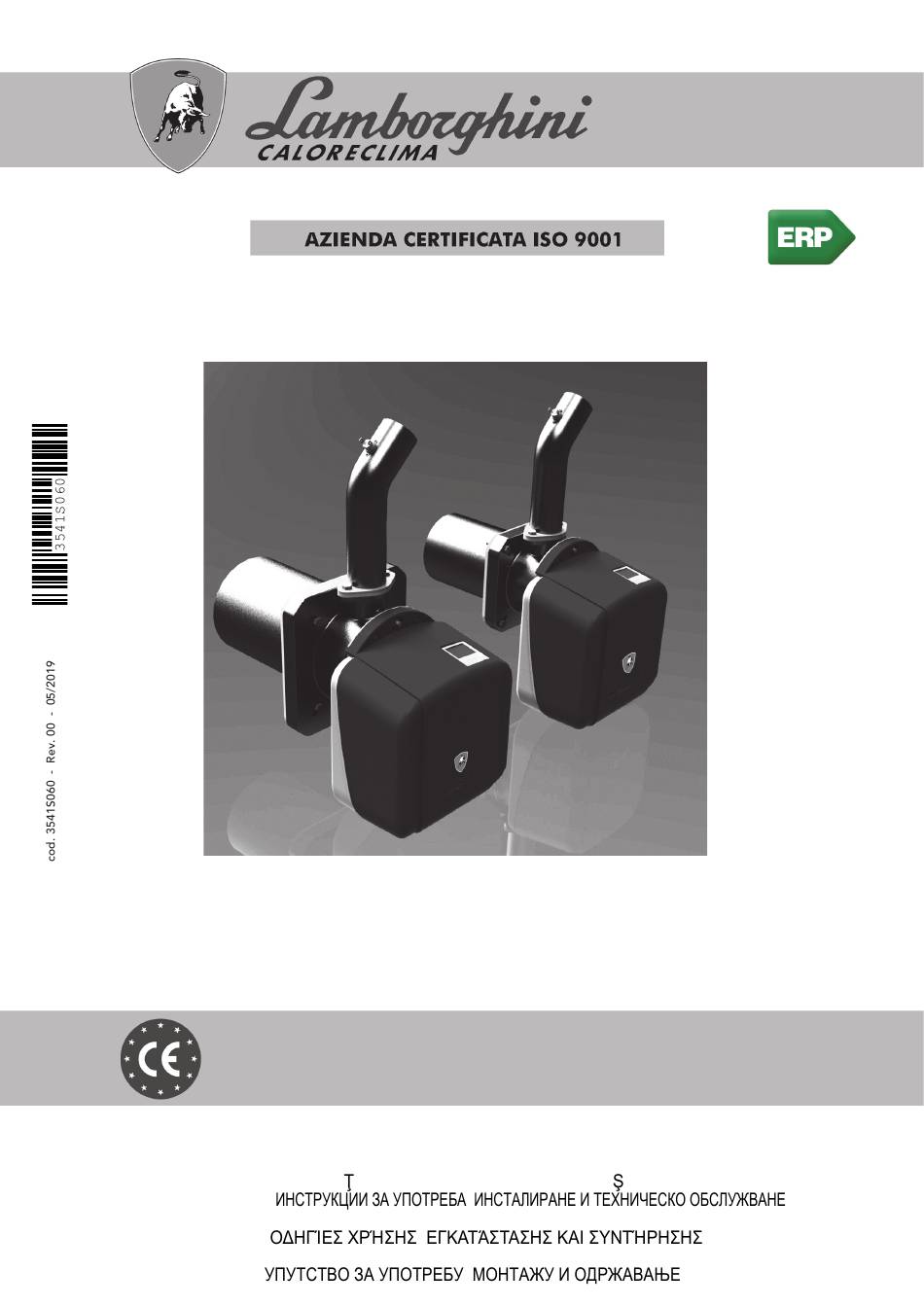

  • Page 1 ECO P N IT - ISTRUZIONE PER L’USO L'INSTALLAZIONE E LA MANUTENZIONE EN - INSTRUCTIONS FOR USE, INSTALLATION AND MAINTENANCE ES - INSTRUCCIONES DE USO, INSTALACIÓN Y MANTENIMIENTO RO - INSTRUC IUNI DE UTILIZARE, INSTALARE I ÎNTRETINERE BG - HR - UPUTE ZA UPORABU, POSTAVLJANJE I ODRŽAVANJE EL - HU - HASZNÁLATI, BESZERELÉSI ÉS KARBANTARTÁSI UTASÍTÁS SR -...
  • Page 2 E E CO P N • Read the warnings in this instruction book- placement parts. Failure to comply with the let carefully since they provide important in- above could affect the safety of the unit. formation on safe installation, use and •...

  • Page 3: Table Of Contents

    ECO P N 1 Operating instructions ......................29 1.1 Introduction............................29 1.2 Control panel ............................29 1.3 Lighting and shutdown ......................... 30 1.4 Adjustments............................31 1.5 Operating instructions .......................... 37 1.6 Cleaning the burner grille ........................37 2 Installation ..........................38 2.1 General Instructions ..........................

  • Page 4: Operating Instructions

    1.1 Introduction Dear Customer, Thank you for choosing ECO P N, a LAMBORGHINI burner featuring advanced design, cutting-edge technology, high reliability and quality construction. ECO P N is a pellet burner whose compact size and original design make it suitable for use with the majority of solid fuel-burning boilers available on the market today.

  • Page 5: Lighting And Shutdown

    ECO P N Indication during operation Heating A heating demand (generated by Request Contact, Room Thermostat or Remote Timer Control) is indicated by activa- tion of the radiator (detail 1 - fig. 1). The multifunction display (detail 4 - fig. 1) shows the heating sensor temperature and, during heating standby time, the message “d2”.

  • Page 6: Adjustments

    ECO P N Burner ignition Switch on the power to the burner. •For the next 180 seconds the display will show 0/FH which identifies the heating system air venting cycle. •During the first 10 seconds the display also shows the software version of the cards (A = Display card software version / B = Controller software version).
  • Page 7 ECO P N DHW temperature adjustment Press the Info button (detail 11 - fig. 1) until displaying the parameter u02 of the user settings menu. Press Enter (detail 8 - fig. 1): the actual value of the parameter u02 is displayed. Use the buttons (details 9 and 10 - fig.
  • Page 8 ECO P N Actual burner power (Step) and Flame status Press the Info button (detail 11 - fig. 1) until displaying the information u07 of the user settings menu. Press Enter (detail 8 - fig. 1): the actual burner power (Step) and Flame status are displayed. •1 = Minimum Power •5 = Maximum power •0/FH = During Pre-ventilation/Post-ventilation...
  • Page 9 ECO P N Parameters menu The card Service Menu is accessed by pressing the Info button (detail 11 - fig. 1) for 10 seconds. Press the Up/Down buttons to select “tS”, “In”, “Hi” or “rE”. “tS” means Transparent Parameters Menu, “In” means Information Menu, “Hi” means History Menu, “rE”...
  • Page 10 ECO P N ECO 5,5 P N Remote Card Transparent Parameters Range Default/ Control ECO 3,4 P N Pump operation 0=Post-Circulation 0=Post-Circulation 0=Post-Circulation 1=Continuous Pump deactivation temperature during Post-Circula- 0-100°C 35°C 35°C tion (P25=1) Pump deactivation temperature during Post-Circula- 0-100°C 35°C 35°C tion (P25=2)
  • Page 11 ECO P N “In” - Information Menu The card can display the following information: Con- Description Range tents NTC Heating sensor (°C) between 05 and 125°C NTC Safety sensor (°C) between 05 and 125°C Hot water tank NTC sensor (°C) (only with parameter P25=2, storage boiler) between 05 and 125°C Flow switch status (On/Off) (only with parameter P25=4, instantaneous boiler) On/Off...

  • Page 12: Operating Instructions

    ECO P N 1.5 Operating instructions Once the burner is installed and correctly adjusted, its operation is fully automatic without requiring any control by the user. In case of anomalies or no fuel, the burner stops and shuts down. To avoid irregular burner operation it is advisable to top-up the fuel before it finishes.

  • Page 13: Installation

    20 and 21 of the terminal block located inside the burner (after removing the jumper). For LAMBORGHINI boilers not equipped with safety coil, the kit 033001X0 must be used. 20/21 fig.
  • Page 14 ECO P N 230V 50Hz 3.15 A Instructions for installing the ECO P N pellet burner in the boiler ECO-LOGIK Optional kits are available for use of the pellet burner with boilers ECO-LOGIK. For installation, refer to the instructions contained in the kits. After installing the kit in the boiler, fit the burner.
  • Page 15 ECO P N Insert the motor-operated feed pipe “Y” in the pellet hopper “X” and carry out the auger-burner connection in such a way that the flexible tube “W” (fig. 8) is not twisted and/or bent and is not touching hot parts that can damage it. Respect the distance given in the fig.

  • Page 16: Electrical Connections

    ECO P N 2.3 Electrical connections The burner is equipped with a multi-pole terminal block for the electrical connections; refer to the wiring diagram in sec- tion “4 Technical data and characteristics" for the connections. The connections to be made by the installer are all those indicated by the dashed lines in the wiring diagram (see fig.

  • Page 17: Connection To An External Tank For Domestic Hot Water Production

    10 (pumps and non-return valves must be supplied sepa- rately). Carry out the electrical connections as shown in the wiring diagram (see fig. 18). A LAMBORGHINI probe must be used. At the next lighting, the boiler control system detects the hot water tank probe and automatically configures the DHW function, activating the display and relevant controls.
  • Page 18 11 (the 3-way valve must be supplied separately). Carry out the electrical connections as shown in the wiring diagram (see fig. 18). A LAMBORGHINI probe must be used. Change parameter P25 of the "Transparent Parameters Menu" to 3.

  • Page 19: Service And Maintenance

    The personnel of our sales organization and the Local After-Sales Technical Service are at your disposal for any further information. LAMBORGHINI declines any liability for damage and/or injury caused by unqualified and unauthorised persons tampering with the unit.

  • Page 20: Maintenance

    ECO P N Burner setting 1.Connect a combustion analyser to the boiler outlet and leave the burner working at max. for 30 minutes; in the mean- time check the fume extraction duct. 2.MAKE SURE THE COMBUSTION CHAMBER IS IN NEGATIVE PRESSURE 3.Check the combustion at max.
  • Page 21 ECO P N To disassemble the burner After removing the casing, unscrew the nut (C) and disconnect the body, undo the fixing screws (D) and remove the nozzle (E). fig. 14 - Burner disassembly Checks on parts and components Make sure no dust has accumulated inside the fan and on the blades: it reduces the air flow, thus causing pollutant combustion.

  • Page 22: Troubleshooting

    ECO P N 3.3 Troubleshooting The burner is equipped with an advanced self-diagnosis system. In case of a burner fault, the display (detail 4 - fig. 1) flashes indicating the fault code. There are faults the cause permanent shutdowns (marked with the letter "A"): to reinstate operation, press the “Reset” button (detail 8 - fig.

  • Page 23: Technical Data And Characteristics

    ECO P N 4. TECHNICAL DATA AND CHARACTERISTICS 4.1 Dimensions Ø max 194 Ø min 180 fig. 15 - Dimensional ECO 3,4 P N Ø max 234 Ø min 210 fig. 16 - Dimensional ECO 5,5 P N cod. 3541S060 - Rev. 00 - 05/2019...

  • Page 24: General View And Main Components

    ECO P N 4.2 General view and main components fig. 17 Legend Pressure transducer Thermostat 85° Controller Burner loading tube Burner body Motor Terminal block User interface Nozzle Heating element Grille Photoresistance 4.3 Technical data table Data Unit ECO 3,4 P N ECO 5,5 P N Identification codes 0U2F6DXD...

  • Page 25: Wiring Diagram

    ECO P N 4.4 Wiring diagram DO NOT CONNECT "LINE" OR "NEUTRAL" SIGNALS COMING FROM THE ELECTRICAL SYSTEM TO THE TERMINAL BLOCK. ALL CONNECTIONS MUST BE MADE AS SHOWN IN THE WIRING DIAGRAM. EXTERNAL ELECTRICAL LOADS TO BE WIRED TO THE TERMINAL BLOCK MUST NOT EXCEED 100W FOR EACH SINGLE OUTPUT.
