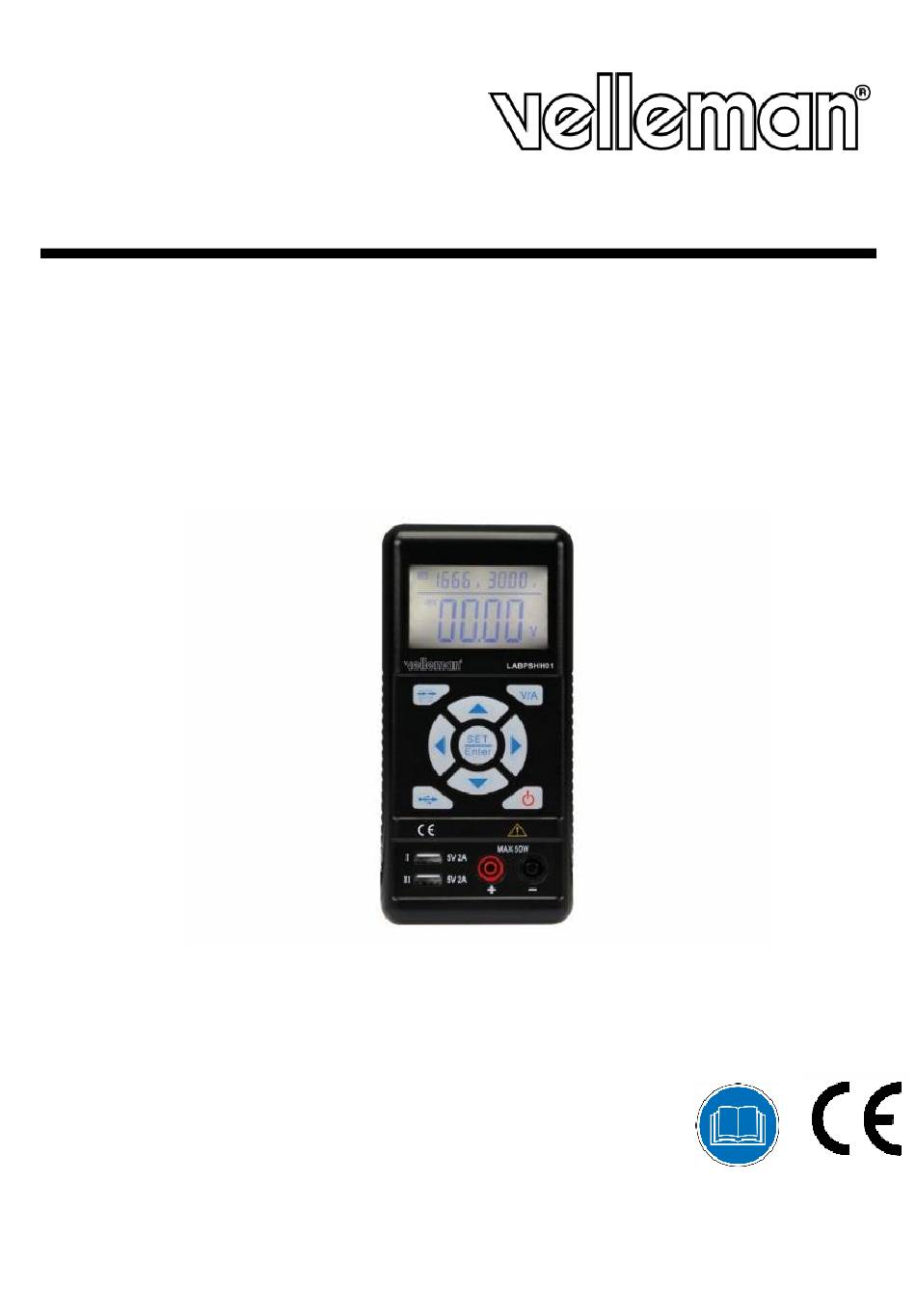

  • Page 1 LABPSHH01 EN - HANDHELD SWITCHING MODE LAB POWER SUPPLY NL - DRAAGBARE SCHAKELENDE LABVOEDING FR - ALIMENTATION DE LABORATOIRE PORTABLE À DÉCOUPAGE ES - FUENTE DE ALIMENTACIÓN CONMUTADA PARA LABORATORIO DE - TRAGBARES LABORNETZGERÄT PL - RĘCZNY ZASILACZ IMPULSOWY PT - FONTE DE ALIMENTAÇÃO COMUTÁVEL PORTÁTIL...
  • Page 2 LABPSHH01 V. 03 – 28/10/2016 ©Velleman nv...

  • Page 3: Safety Instructions

    Respect the local environmental rules. If in doubt, contact your local waste disposal authorities. Thank you for choosing Velleman! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

  • Page 4: General Guidelines

    LABPSHH01 3. General Guidelines Refer to the Velleman ® Service and Quality Warranty on the last pages of this manual.  Familiarise yourself with the functions of the device before actually using it.  All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
  • Page 5 LABPSHH01 5.3 Keypad description Press the STORE/RECALL button to store/recall a pre-set value to/from the memory bank. Press V/A to switch between the current and voltage measurements. Press the USB button to enter the USB power-charging mode. Adjust the voltage to 5.2 V and the current to 3 A.
  • Page 6 LABPSHH01 5.5 Checking the Output Output Voltage Regulation Connect the device to the mains. Press V/A to switch to voltage mode. Adjust to the desired value (from 1 to max. 30 V). Press the OUT button to put the device in output mode.
  • Page 7 LABPSHH01 Recall Saved Data In normal operating mode, press the STORE/RECALL button to open the memory banks. Select your memory bank with Press SET to load the selected memory bank. 5.7 Voltage and Current Calibration Connect the output terminals to a 5-digit voltage meter, current meter or 10 Ω/100 W resistance.

  • Page 8: Cleaning And Maintenance

    LABPSHH01 6. Cleaning and Maintenance  Disconnect the device from the mains prior to maintenance activities.  The power supply cables must not show any damage. Have a qualified technician maintain the device.  Wipe the device regularly with a moist, lint-free cloth. Do not use alcohol or solvents.
  • Page 9 The information in this manual is subject to change without prior notice. © COPYRIGHT NOTICE The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.
