5.5 RF performance

5.5.1 Transmit Power

Conducted Transmit Power:
Antenna Gain:
Effective Transmit Power:

5.5.2 Receive Sensitivity

Receive Sensitivity:
Antenna Gain:
Effective Receive Sensitivity:
0
-40 deg -20 deg
-10
-20
-30
-40
-50
-60
-70
-80
-90
-100

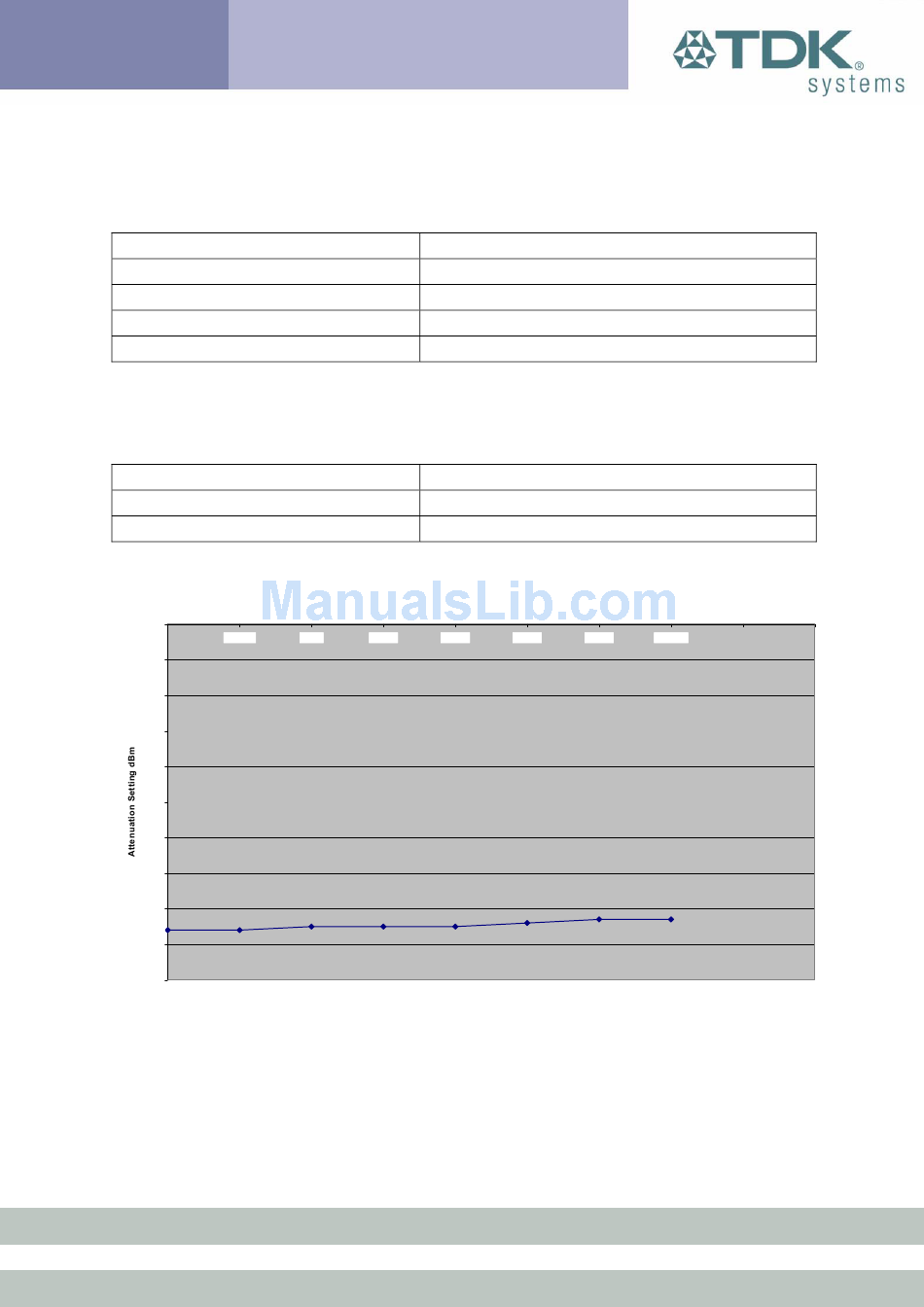

5.5.3 Range

See Data Transfer Rate vs distance. The data throughput of the blu
Module is limited to 200Kbps by the parsing of the data being transferred
through the AT command processor. The graph below shows the best
minimum: 1mW (0dBm)
maximum: 4mW (6dBm)
Power class 1
+2dBi typical.
min: 2dBm max:8dBm
-86dBm (at 25ºC)
+2dBi typical
-88dBm (at 25ºC)
Receive Sensitivity
0 deg 20 deg 40 deg
Temperature Deg. C.
21 of 36
60 deg 80 deg 100 deg
NOTE: Measured as attenuation required
to achieve better than 0.1% BER
2i
