Summary of Contents for Rosewill Viper Z

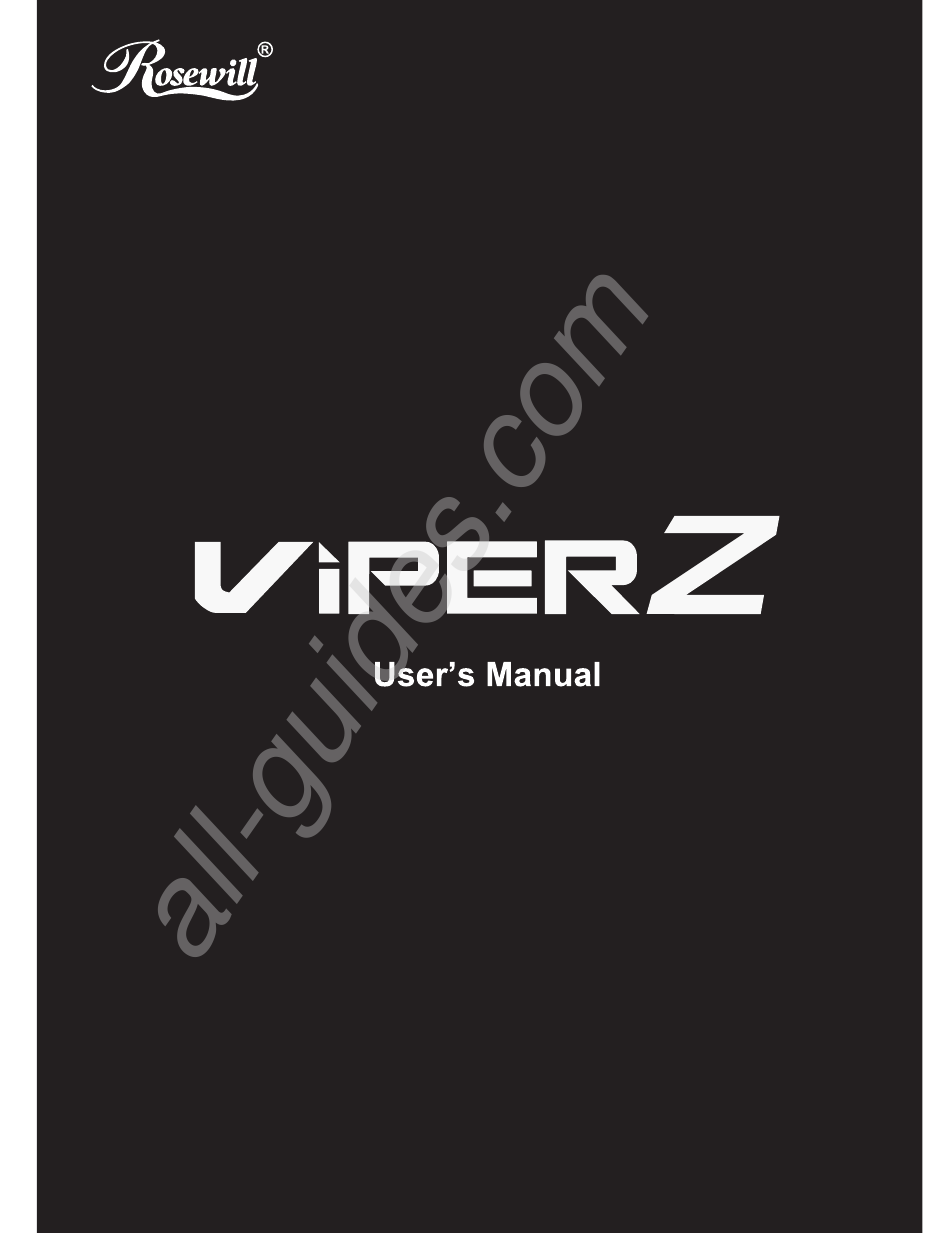

- Page 1 All manuals and user guides at all-guides.com VIPER...
-
Page 2: Table Of Contents
Please register your product at : http://www.rosewill.com for complete warranty information and future support for your product. If you have any questions while using our products, please visit our website : www.rosewill.com for latest driver & user manual. Support Phone Number: 800-575-9885 Support Email: techsupport@rosewill.com... -
Page 3: Disassembling Chart
USB 3.0 CONNECTOR Card Reader CONNECTOR USB+5V USB+5V USB2.0 CONNECTOR HD Audio CONNECTOR AUD GND PORT1L USB+5V USB+5V PRESENCE# PORT1R SENSE1 RETURN PORT2R NO PIN SENSE SEND SENSE2 RETURN PORT2L NO PIN NO PIN NO PIN © All rights reserved by Rosewill... -
Page 4: Top I/O
Power Button Card Reader connector to M/B POWER SW to M/B Audio Reset Button HD AUDIO connector Reset SW to M/B HD AUDIO connector to M/B (1 Audio Connection per M/B, please check HD Audio) © All rights reserved by Rosewill... -
Page 5: Accessory Box
3.5”/5.25” ODD 3x M/B Standoff Motherboard 19x Screw-C PSU + M/B 1x M/B Sleeve M/B Standoff 1x PC Buzzer Motherboard 2x Cable Tie Cables 1x Side Panel Lock Side Panel 1x Screw-D Side Panel Lock © All rights reserved by Rosewill... -
Page 6: Installation Guide
- Fan Facing Downwards: Make sure that there is enough room for air-intake between the bottom of case and the surface where the case is located. - Clean the dust filter regularly to ensure adequate airflow. © All rights reserved by Rosewill... -
Page 7: Install Motherboard
CASE VIPER Z All manuals and user guides at all-guides.com User Manual 3. Install Motherboard 3-1 Place the motherboard standoffs based on the form factor. 3-2 Secure the motherboard with screw-C. © All rights reserved by Rosewill... -
Page 8: Install Add-In Card
CASE VIPER Z All manuals and user guides at all-guides.com User Manual 4. Install Add-in Card 4-1 Unscrew to remove the slot cover. 4-2 Install the add-in card. 4-3 Secure with screw. © All rights reserved by Rosewill... -
Page 9: Install External 5.25" Device
- Unscrew to retrieve the 3.5” adaptor. - Rest the 3.5” deice onto the adaptor and secure it down with screws. - Install the adaptor back into the bay. - Reinstall the front panel back onto the case. © All rights reserved by Rosewill... -
Page 10: Install 3.5"/2.5" Hdd/Ssd
Fan Hub (the PCB located near M/B). Make sure to connect the 8-1 Slide the side panels back and secure fan hub and PSU with a 4-pin Molex with thumbscrews. connector. © All rights reserved by Rosewill... - Page 11 User Manual 8. Optional: Additional Fan & Liquid Cooling Radiator VIPER Z has the capacity of installing one additional 120/140mm fan on top. (connect the fan to either fan hub or the control panel) Instruction of installing 240mm water cooling radiator on the top: Secure the radiator with screws under the top cover.
- Page 12 All manuals and user guides at all-guides.com www.rosewill.com...
