Summary of Contents for Optoma Panoview Graywolf II GWII9092E

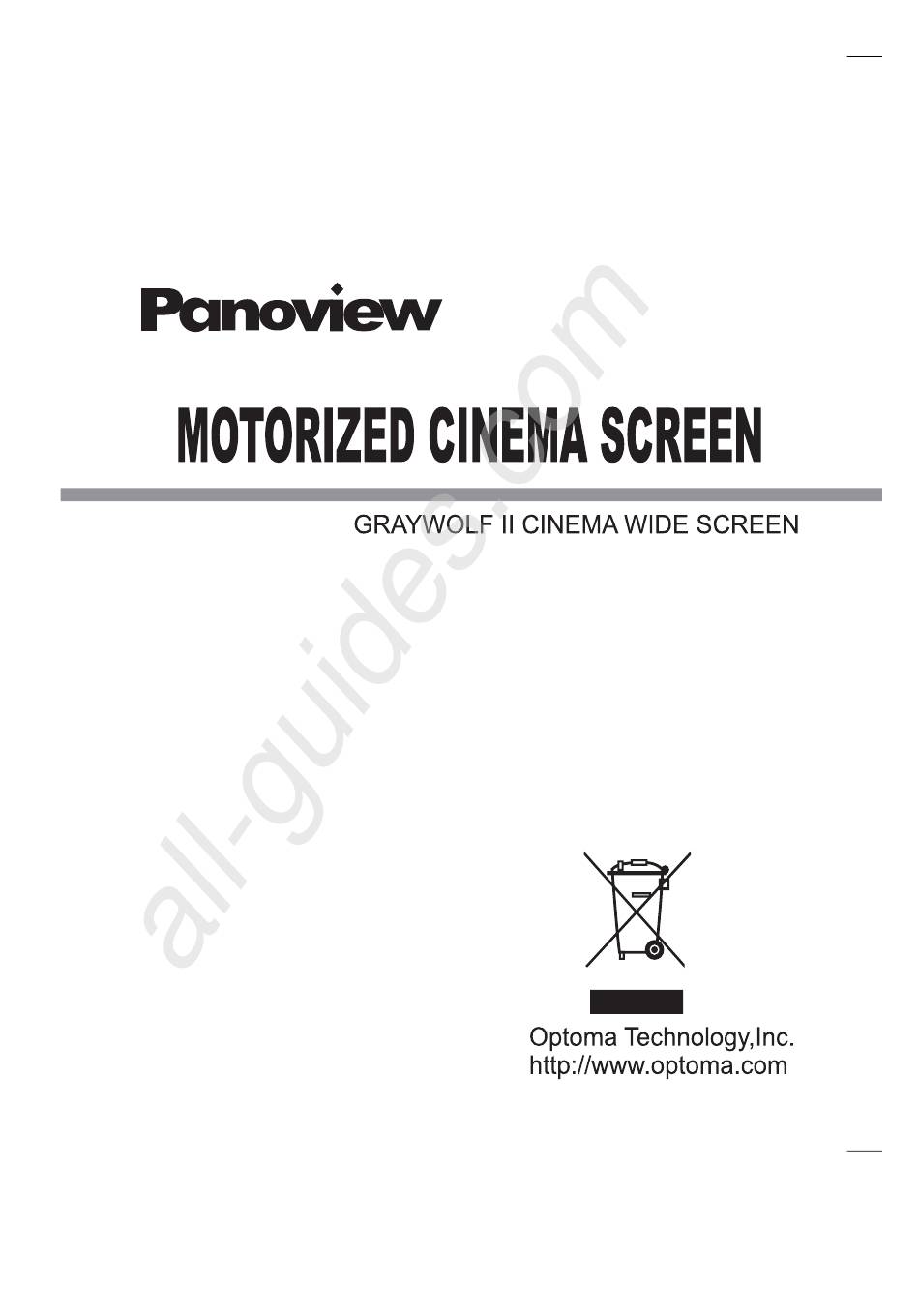

  • Page 1 All manuals and user guides at all-guides.com...
  • Page 2: Important Safety Instructions

    All manuals and user guides at all-guides.com NO.1 IMPORTANT SAFETY INSTRUCTIONS Basic safety precautions,including the following should always be followed. Close supervision is necessary when any motorized screen is used by or near children,do not leave motorized screen unattended while in use. Do not operate motorized screen with damaged cord or if the motorized screen has been dropped or damaged,until it has been examined by a qualified service technician.
  • Page 3 All manuals and user guides at all-guides.com N0.2 To reduce the risk of electric shock,do not disassemble this appliance,only a qualifid service technician may service or repair motorized screen.Incorrect reassemble can cause electric shock when the motorized screen is used. Only use accessory attachment recommended by the manufacturer.Use of non-manufacturer recommended acces- sory attachments,may viod the screens warranty and release...
  • Page 4: Switch Box

    All manuals and user guides at all-guides.com NO.3 Thank you for choosing Panoview screens. All screens have passed the strict quality inspection before delivery. Read this manual carefully to ensure proper usage. Important Attention: the installation of the screen, the electric wire connection, the setting of the limit switches must be made by a trained engineer only.
  • Page 5 All manuals and user guides at all-guides.com N0.4 Technical data: Input Voltage: 110VAC/60HZ Output Voltage: 3A Fuse: 1A IR Remote Control Distance: ≤8m, ±15°Horizontal 12V Trigger Jack: OD3.4xID1.3 12V Trigger Signal: Voltage:7---11VAC or 8---16VDC, Current: ≥2mA IR Handset: Switch control: 1pc Unpack screen carefully, be sure screen is in good condition, and check that all accessories are included inside carton.
  • Page 6 All manuals and user guides at all-guides.com NO.5 Remove two pulling locks on the bottom slat bar after the case has been installed. Install screen brackets onto ceiling or wall with appropriate hardware. Anchor screen onto bracket as shown in above figure below. MOUNT SCREEN TO WALL MOUNT SCREEN TO CEILING...
  • Page 7: Electric Connection

    All manuals and user guides at all-guides.com N0.6 ELECTRIC CONNECTION Internal wiring has been completed at the factory.No addi- tional wiring is necessary. Note:all wiring related to the screen,may only be serviced by a manufacturer approved trained electrical technician.Tampering with electrical wiring may void warranty and release Panoview of liability.
  • Page 8 All manuals and user guides at all-guides.com NO.7 OPERATING INSTRUCTION: OPERATING INSTRUCTION: Plug in power supply. For Switch control: Plug in Switch into switch jack. Press button to Up position, screen goes up. Press button to stop position, screen stops. Press button to down position, screen goes down.
  • Page 9 All manuals and user guides at all-guides.com N0.8 For 12V trigger: Input 12V trigger signal, screen goes down. Stop this signal, screen goes up. Electric lock: Press the Up & Down buttons on the IR handset together, then all Up & Down buttons on the switch and IR handset will be locked.
  • Page 10 All manuals and user guides at all-guides.com...
