Wireless
Security
Solutions

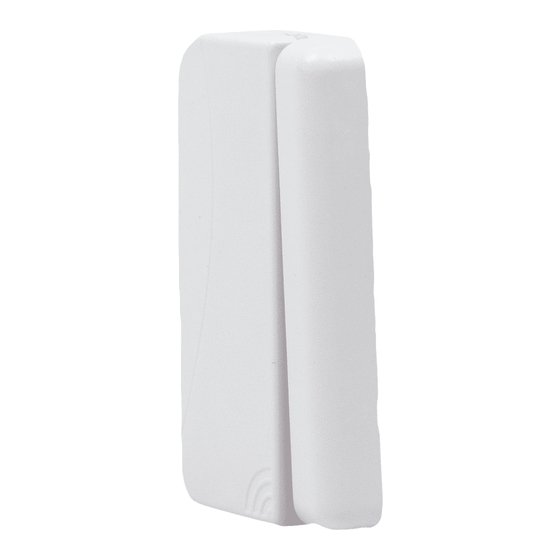

RE322 DSC-Compatible NanoMax Door / Window
Features
For sensing things that open or separate.
•
Magnet and Internal reed switch operation.
•
1-inch magnet gap!
•
External Contact.
•
Cover tamper.
•
Strong, reliable RF signal.
•
6+ year battery life on CR1632 battery.
•
Low Battery indication.
•
Key Instructions
Battery "+" faces up.
•
Enrolling:
•
Place control panel in Learn Sensor Mode
Open cover to tamper device, or
Tamper enrollment signal can be sent by touching a
magnet to the sensor 5 times within 5 seconds
Operation
Magnetic and hardwire zone
•
Alarm, when...
... magnet is pulled away from reed switch or
... hardwire changes to alarm.
Tamper, when cover is opened.
Supervisories, every hour.
Specifications
Magnet trip distance:
1 inch nominal
Mounting fastener:
3M VHB (Very High Bond) Tape
Replacement Battery:
CR1632
Temperature Range:
0F to 120F
Housing dimensions:
1.8 x .77 x .39 inches
Specifications subject to change without notice.
RE322_DSC-Compatible_NanoMax_Instructions-DoubleSided
24-Hour Tech Support Line: (715)808-0164
www.ResolutionProducts.com
15-Aug-14
