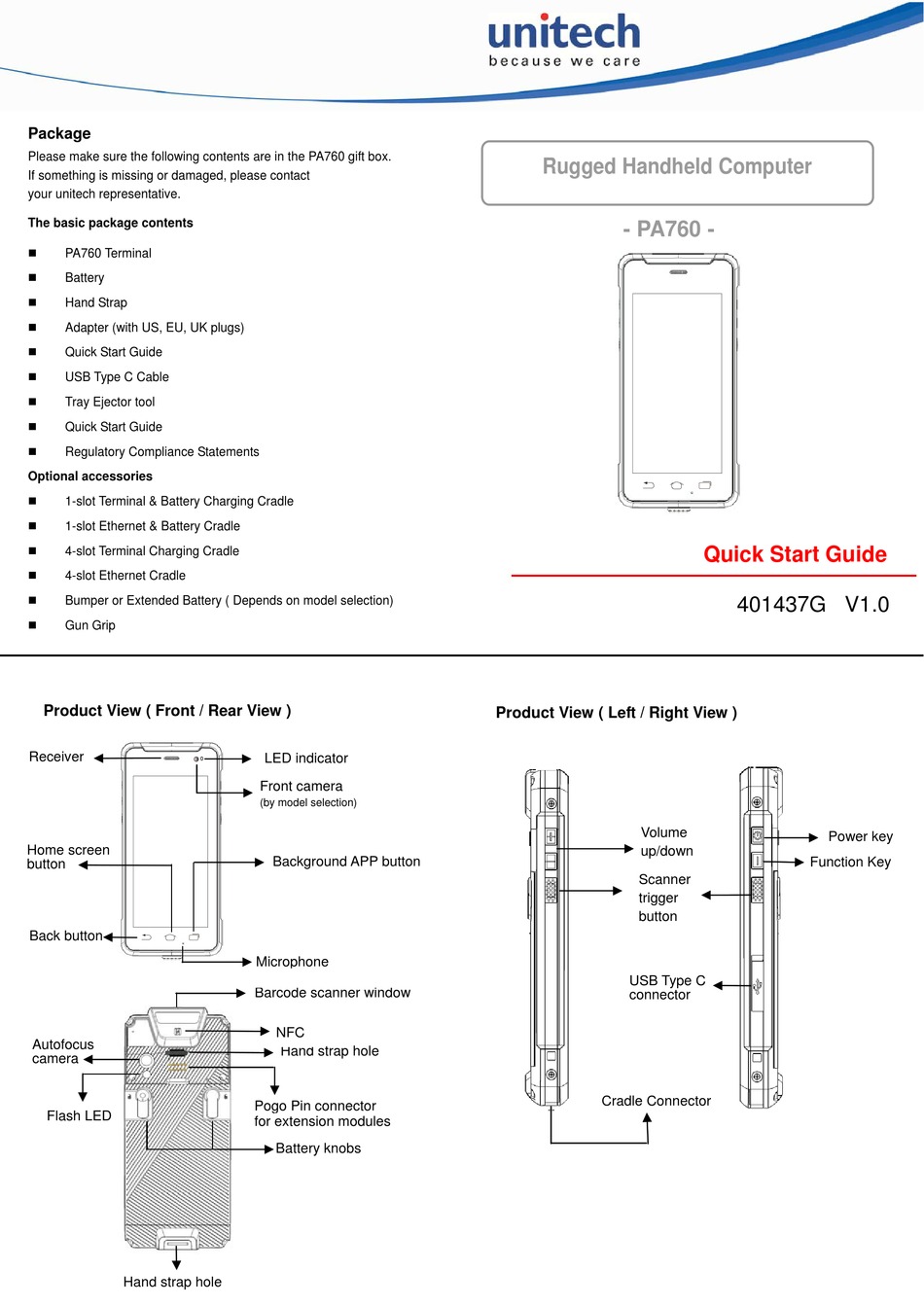

Unitech PA760 Quick Start Manual

Package
Please make sure the following contents are in the PA760 gift box.
If something is missing or damaged, please contact
your unitech representative.
The basic package contents

PA760 Terminal

Battery

Hand Strap

Adapter (with US, EU, UK plugs)

Quick Start Guide

USB Type C Cable

Tray Ejector tool

Quick Start Guide

Regulatory Compliance Statements
Optional accessories

1-slot Terminal & Battery Charging Cradle

1-slot Ethernet & Battery Cradle

4-slot Terminal Charging Cradle

4-slot Ethernet Cradle

Bumper or Extended Battery ( Depends on model selection)

Gun Grip

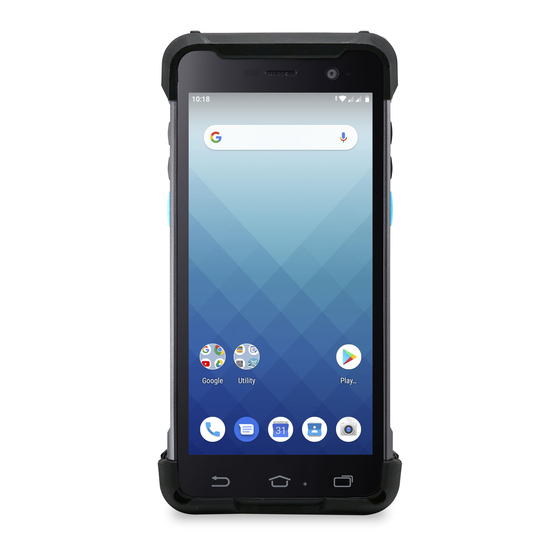

Product View ( Front / Rear View )
Receiver
Home screen
button
Back button
Autofocus
camera
Flash LED
Hand strap hole
LED indicator
Front camera
(by model selection)
Background APP button
Microphone
Barcode scanner window
NFC
Hand strap hole
Pogo Pin connector
for extension modules
Battery knobs
Rugged Handheld Computer
- PA760 -
Product View ( Left / Right View )
Volume
up/down
Scanner
trigger
button
USB Type C
connector
Cradle Connector
Quick Start Guide
401437G V1.0
Power key
Function Key
