8. Thunderbolt 3 Card LEDs Status

On the Thunderbolt 3 card within the HL23T-PRO chassis, there are totally
five LEDs. From top to bottom, they are: LED 2 (for 3V3), LED 3 (for 5V0_ATX),
LED 4 (for 3V3_LC), LED 5 (for 0V9_SVR), and LED 6 (for 0V9_USB). The following
information describes what the LEDs lighting status will be before HL23T-PRO
is powered on and after the Netstor unit is powered on.

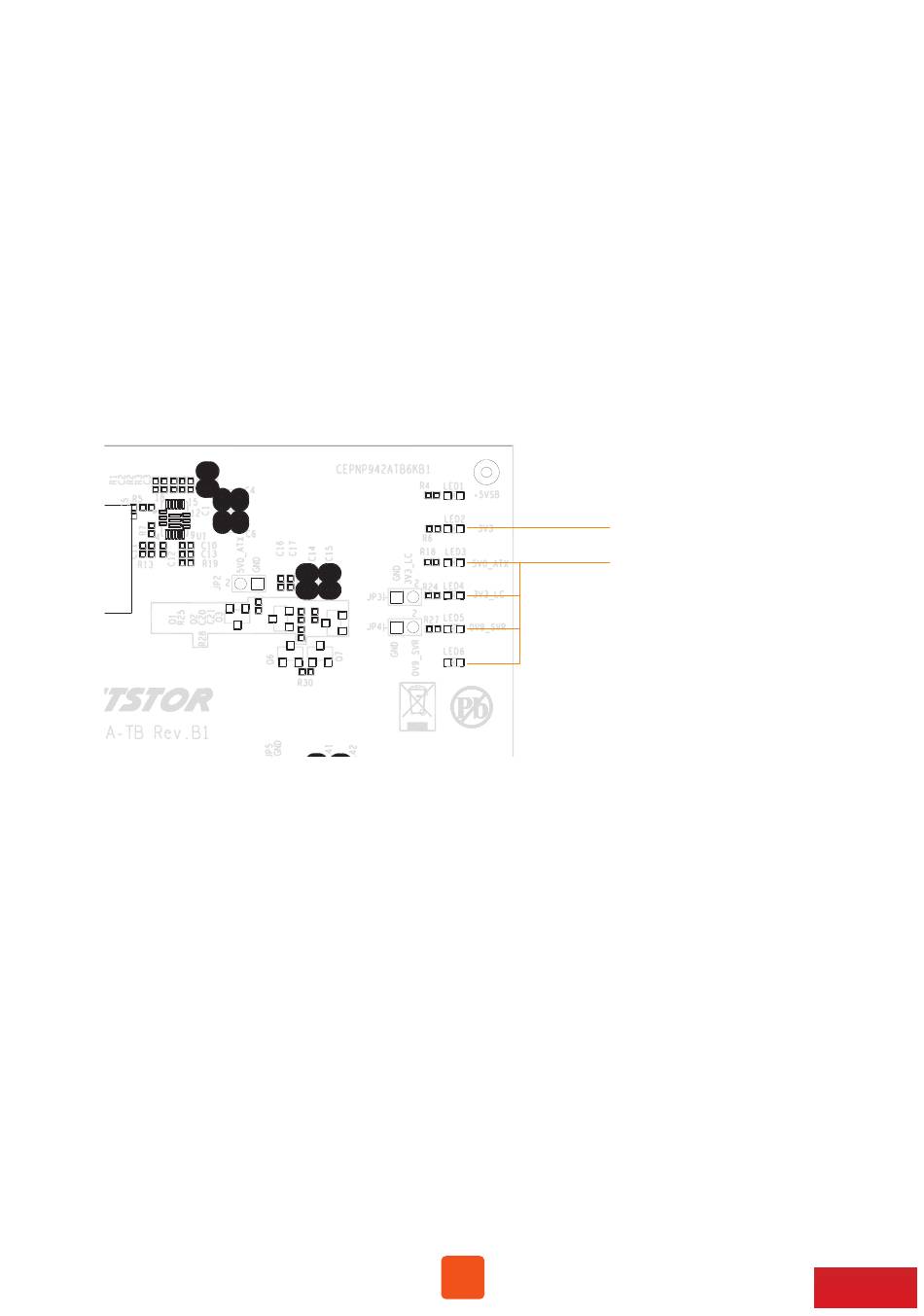

Power-off:
Before HL23T-PRO is powered on, only LED 2 will show green light, and the
rest LED 3 through LED 6 will not show light.
green light
not show light
14
